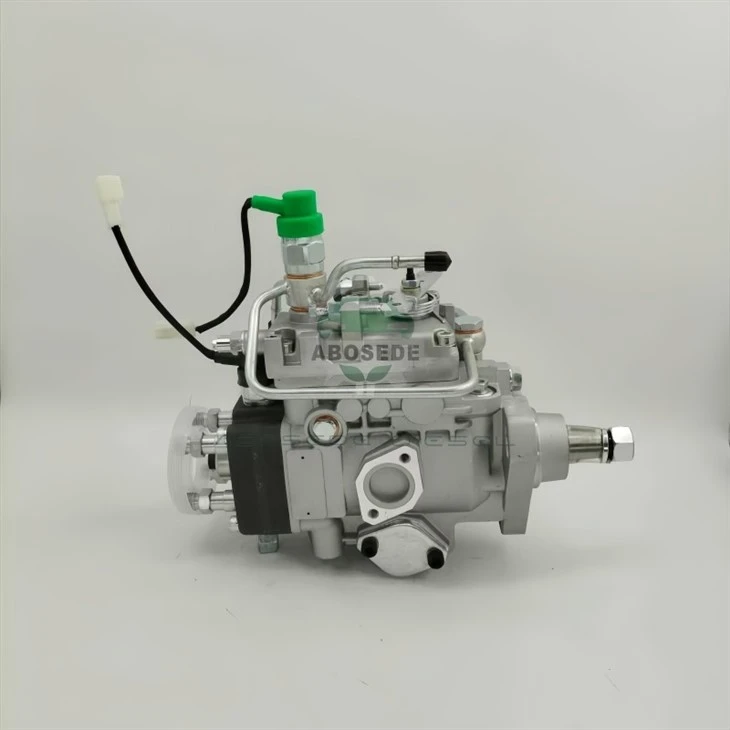

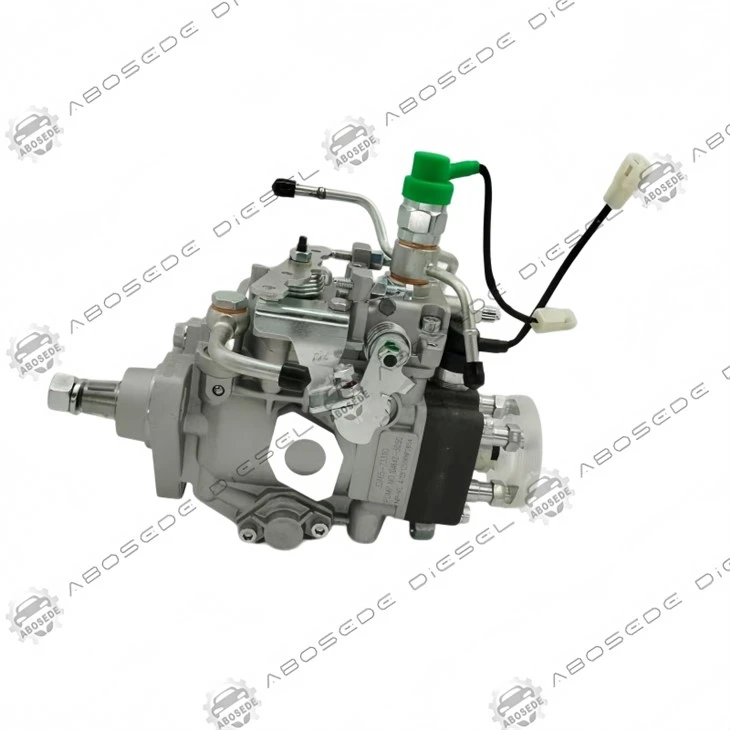

Fuel Injection Pump 32A65‑73310 / 104642‑3050 (R2654) / VE‑12F1250RNP2654 – Mechanical Metering For Mitsubishi & Industrial Diesel

While common rail systems dominate modern diesel headlines, a parallel universe of engines continues to rely on mechanical distributor pumps. The reason is not nostalgia-it is failure tolerance. In marine, agricultural, and remote industrial applications, an ECU failure means a dead engine. A mechanical VE pump, by contrast, can be field‑repaired with basic tools. The 32A65‑73310 / 104642‑3050 pump belongs to this lineage: a Zexel/Bosch VE‑type distributor pump that meters fuel using centrifugal force and hydraulic pressure alone. Its plunger and delivery valve geometry-though lower in pressure than common rail-established the precision metering principles that common rail later scaled up. Understanding this pump means understanding the mechanical foundation of diesel injection.

The three identifiers describe the same pump from different supply chains.

32A65‑73310 – Mitsubishi OEM number. Used in parts catalogues for 4D56, 4M40, and 4M41 engines.

104642‑3050 – Bosch/Zexel production number. The "R2654" in parentheses refers to the delivery valve calibration code.

VE‑12F1250RNP2654 – Zexel's full model designation. Break it down:

VE = distributor‑type injection pump

12F = 12 mm plunger diameter, four‑cylinder configuration

1250 = maximum governed pump speed (1,250 rpm)

RNP = hydraulic head and mechanical advance configuration

2654 = application‑specific calibration code (fuel curve, torque capsule)

All three numbers must match for correct fitment. A pump with the same physical dimensions but different suffix will deliver an incorrect fuel curve.

This pump is a direct fit for a range of Mitsubishi and licensed diesel engines, plus industrial power units.

Direct Engine Compatibility:

Mitsubishi 4D56 (2.5L) – non‑common‑rail, 1986–2007

Mitsubishi 4M40 (2.8L) – Pajero, L200, Canter

Mitsubishi 4M41 (3.2L) – certain industrial variants

Hyundai D4BH / D4BF – licensed Mitsubishi design

Kia J2 / JT – 2.7L diesel (Bongo, K2700)

Industrial & Marine:

Forklift engines (TCM, Nissan, Mitsubishi)

Marine auxiliary engines (Yanmar, Kubota derivatives)

Generator sets with mechanical governor requirement

Cross‑Reference Numbers:

104642‑3050, 104642‑3051, 104642‑3052

32A65‑73310, 32A65‑73311

VE‑12F1250RNP2654, VE‑12F1250R2654

Verify the drive gear and mounting flange before ordering. This pump is supplied without the drive gear; reuse your original after inspection.

Innovative Visual – The "Three‑Ring Control" Concept:
Imagine three concentric rings:

Inner ring = governor flyweights (speed sense)

Middle ring = control sleeve (fuel quantity)

Outer ring = advance piston (timing)
The pump's output is the intersection of these three mechanical signals. Any wear in one ring shifts the entire fuel map.

Mechanical pumps degrade gradually. Watch for these patterns:

Hard cold start + white smoke – worn plunger or stuck advance piston (timing retarded).

Rough idle + black smoke – delivery valve R2654 leaking, residual pressure too low.

Power loss at high rpm – governor torque capsule fatigued, fuel curve drops off.

Fuel in engine oil – drive shaft seal failure (diesel dilutes lubricant).

"Hunting" idle – governor linkage worn, over‑correcting.

Diagnostic tip: Measure delivery valve residual pressure. A healthy R2654 holds 80–120 bar. Below 60 bar indicates replacement is due.

Q1: Can I swap this mechanical VE pump for a common rail system on a 4D56?
Not directly. Common rail requires an ECU, high‑pressure pump, rail, injectors, and wiring harness. The VE pump runs at 350 bar; common rail runs at 1,800+ bar. Converting is technically possible but economically impractical. Rebuild the VE pump instead.

Q2: My engine runs but lacks top‑end power. Is the R2654 delivery valve the first suspect?
Yes-after checking fuel filters and boost pressure. A worn R2654 loses residual pressure, causing the injection line to drain between strokes. At high rpm, the pump cannot refill the line fast enough, so injection quantity drops. Replace the valve before condemning the pump.

Q3: How do I know if the advance piston is stuck?
Set the engine to idle and use a timing light. If the timing does not advance when you rev the engine to 2,000 rpm, the piston is stuck. Remove the advance cover and inspect for varnish or metal debris. Clean with diesel, not solvent.

Q4: Can this pump use biodiesel B20 or B100?
B20 is acceptable if the seals are FKM (Viton). B100 requires a pump specifically built with biodiesel‑compatible elastomers and anodised internals. Standard pumps may suffer seal swelling and plunger sticking with B100.

Q5: What is the expected service interval for this pump?
Under normal fuel quality, 200,000–300,000 km. In off‑road or high‑dust conditions, 1,500–2,000 hours. Replace the fuel filter every 500 hours. Use a lubricity additive if ULSD is the only available fuel.

Q6: The pump leaks diesel into the engine oil. Can I replace just the seal?
The drive shaft seal is replaceable, but the pump must be removed and partially disassembled. In most cases, the plunger and delivery valve are also worn. We recommend a complete rebuild or replacement rather than a seal‑only repair.
