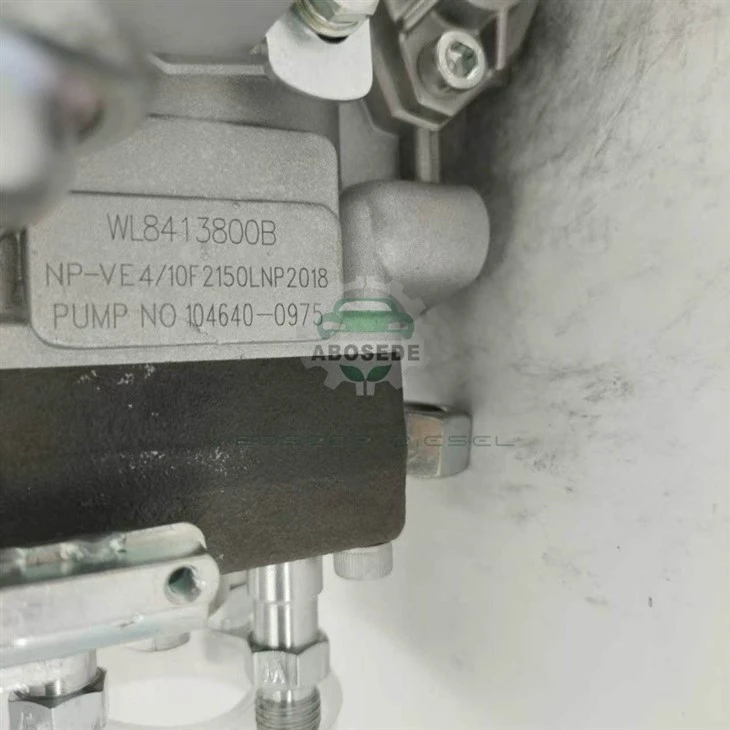

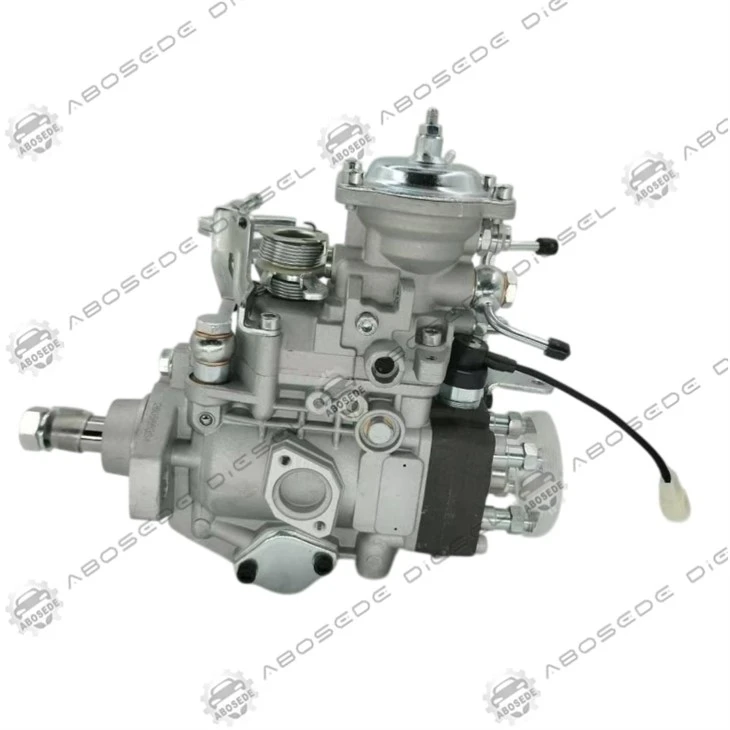

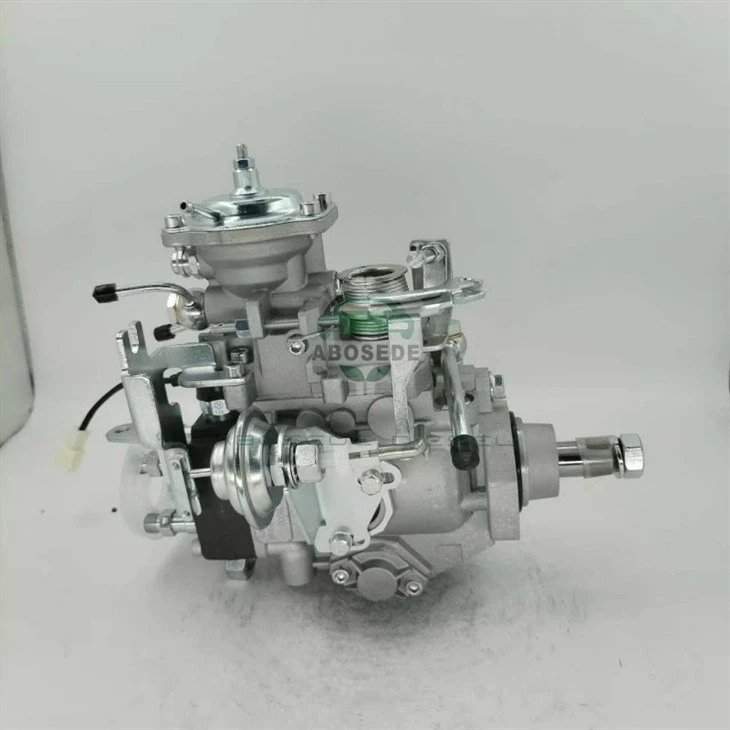

104640-0975 (L2018) VE4/10F 2150LNP2018 Diesel Fuel Injection Pump – Precision Volumetric Distribution For Legacy & Industrial Platforms

While modern Common-Rail systems dominate discussions on diesel efficiency, the Bosch VE distribution pump (104640-0975 / VE4/10F 2150LNP2018) remains an irreplaceable mechanical cornerstone in industrial, agricultural, and legacy commercial fleets. Unlike the Common-Rail's independent pressure accumulator, this VE pump operates on a synchronous, single-plunger distribution principle. The 10mm plunger diameter (designated by "10F") dictates the maximum volumetric displacement per cycle, delivering fuel through a precision-machined distributor head. This unit functions as both a high-pressure generator and a mechanical distributor, relying on micro-tolerances to deliver fuel to four distinct cylinders without electronic injector pulsing. When servicing this component, understanding the hydraulic timing map is as critical as verifying part numbers, as the pump's internal roller ring geometry dictates the injection advance curve, directly impacting combustion phasing and exhaust opacity.

The suffix "LNP2018" defines a specific configuration of this VE4 pump, which typically includes a mechanical or electronic cold-start advance mechanism. The internal timing device (often controlled by a hydraulic piston or an electromagnetic solenoid) adjusts the pump's internal pressure to advance or retard injection timing based on engine RPM and load. This mechanical feedback loop serves the same function as the ECU-driven timing strategy in a Common-Rail system, but through entirely analog hydraulic forces. A failure in the advance piston seals or the timing solenoid (if equipped) causes a rigid, fixed injection timing, resulting in hard cold starting, excessive white smoke, and a noticeable loss of low-end torque. Buyers must verify the specific advance curve for the L2018 variant, as the governor spring rates and torque capsule settings vary significantly across different engine applications.

Despite lacking electronic injectors, the VE4/10F is a high-precision hydraulic instrument. The internal distributor head and plunger clearances are measured in sub-micron tolerances to maintain pressure at high engine speeds. Key diagnostic data points for the 104640-0975 include:

Delivery Valve Leakage: The delivery valves must hold residual pressure to prevent line drain-back; a worn valve causes extended cranking and erratic firing.

Internal Transfer Pressure: The vane pump within the VE housing must generate a specific transfer pressure (typically 2-8 bar depending on RPM) to actuate the advance mechanism and fill the high-pressure chamber.

Plunger Wear Rate: Fuel contamination (water or abrasives) rapidly degrades the 10mm plunger-to-barrel clearance, leading to internal leakage and a drop in maximum delivery volume at full load.

For technicians managing mixed fleets, the 104640-0975 introduces a unique diagnostic challenge: it requires mechanical calibration techniques (such as dial indicator timing) that are becoming less common in the era of Common-Rail OBD-II scanning. However, the VE pump's feedback loop can be analyzed using the same principles as modern systems. For instance, the "LNP" advance mechanism operates similarly to a Common-Rail pressure control valve, modulating fluid to achieve a target position. When installing a replacement or remanufactured VE4/10F, the static injection timing must be set precisely according to the engine's timing mark. An error of even 0.5mm in plunger lift can shift the injection window by several degrees of crankshaft rotation, causing thermal stress on the pistons and elevated NOx emissions.

Procuring the 104640-0975 requires distinguishing between OEM Bosch units and aftermarket remanufactured assemblies. The VE pump is highly sensitive to assembly cleanliness. A remanufactured unit must be tested on a calibrated test bench to verify the delivery map across the entire RPM range. Because the pump relies on internal fuel pressure for lubrication and advance control, the use of low-sulfur diesel without adequate lubricity additives can accelerate internal wear on the cam plate and roller ring. When cross-referencing this part number, verify compatibility with the specific engine governor type-pneumatic, mechanical, or RQV-as the throttle shaft and linkage geometry are often application-specific and not interchangeable without recalibration.

Q1: Can the 104640-0975 VE pump be replaced with a Common-Rail conversion kit?
A: While physical engine architectures may allow it, a full conversion requires changing the cylinder head, injectors, high-pressure lines, and adding an ECU harness. The 104640-0975 remains the most cost-effective direct replacement for legacy engines, preserving the original mechanical control logic without electronic integration.

Q2: How does the "LNP2018" advance mechanism differ from Common-Rail timing control?
A: Common-Rail timing is ECU-driven via injector pulse sequencing. The VE pump's LNP advance mechanism relies on internal transfer pressure acting against a spring-loaded piston to rotate the roller ring. Both achieve timing adjustment, but the VE pump is a closed-loop hydraulic system without electronic feedback.

Q3: What are the symptoms of a failing 10mm distributor head in this VE pump?
A: Symptoms include a sudden loss of power under load, erratic idling, and excessive black smoke. A bench test will reveal an inability to maintain delivery volume at high RPM, indicating that the plunger-to-barrel clearance has exceeded the allowable tolerance.

Q4: Why is fuel lubricity more critical for this pump than for Common-Rail systems?
A: The VE pump uses the fuel itself to lubricate the cam plate, roller ring, and plunger. Ultra-low sulfur diesel (ULSD) lacks the natural lubricity of older fuels, increasing the risk of scuffing on these mechanical surfaces. Common-Rail systems have separate oil lubrication for their high-pressure pump internals.

Q5: Can I adjust the fuel delivery on the 104640-0975 without a test bench?
A: It is strongly discouraged. The fuel delivery screw (often sealed) directly influences the torque capsule and maximum fuel limit. Without a calibrated test bench to measure delivery volume against RPM, adjustments can easily result in engine runaway or severe overheating.

Q6: What should I check if the engine cranks but does not start after pump replacement?
A: Verify the static injection timing (dial indicator plunger lift). Ensure the fuel shut-off solenoid is receiving 12V/24V and is audibly clicking. Additionally, confirm that the fuel system has been fully bled, as the VE pump cannot self-prime if air is trapped in the high-pressure chamber.
