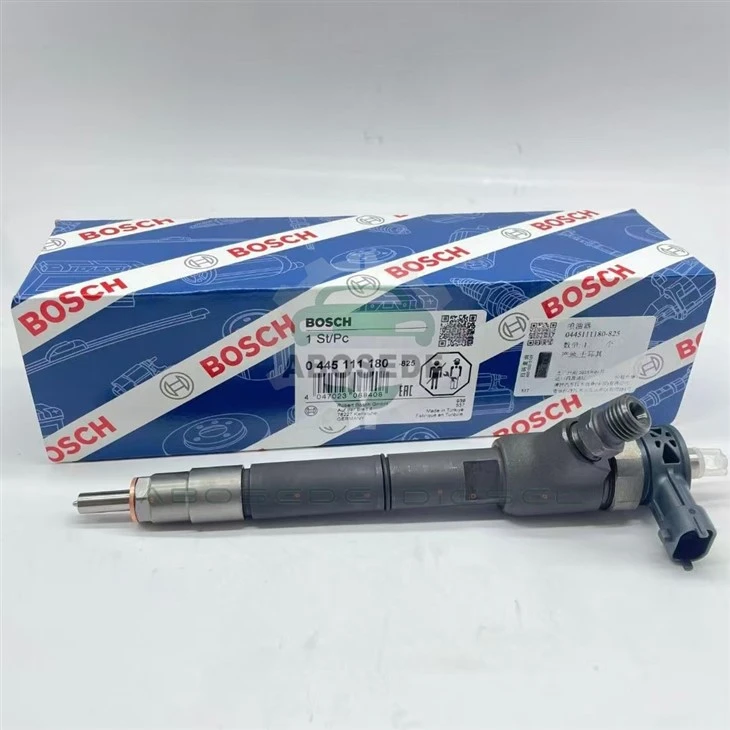

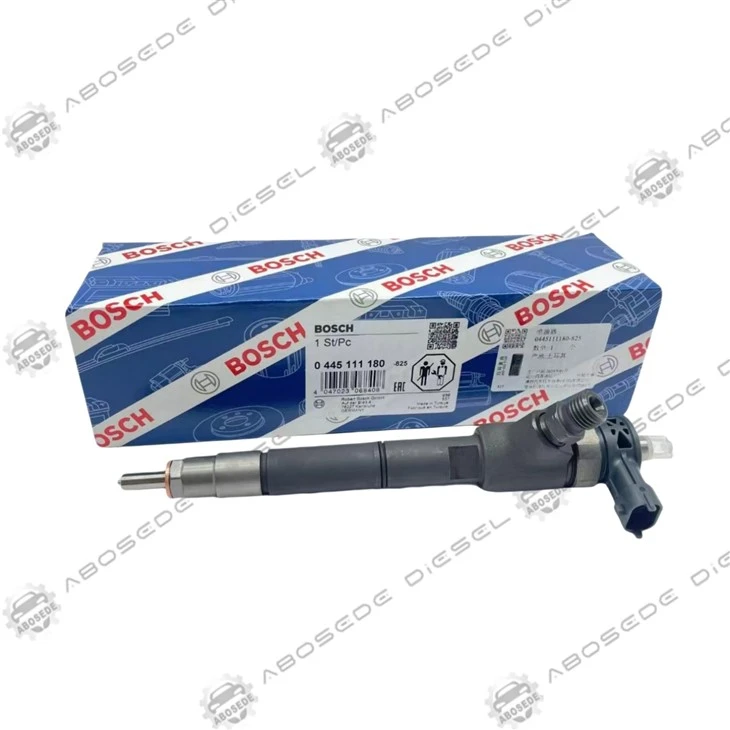

Bosch 0445111180 Common Rail Injector for PSA DW10 & Renault G9T Engines
video
Bosch 0445111180 Common Rail Injector for PSA DW10 & Renault G9T Engines

Bosch 0445111180 Common Rail Injector for PSA DW10 & Renault G9T Engines

1. Product: Common Rail Injector
2. Manufacturer: Bosch
3. Adaptive pump: Bosch CP1 pump
4. Model: 0445111180
5. Condition: Brand New
6. Origin: made-in-Germany
7. Shipping period:3-5 days
8. Payment terms:T/T, Western union, PayPal

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction



The Bosch 0445111180 is a new genuine common rail injector from the CRI 1.2 family, built for PSA DW10/DW12 and Renault G9T diesel platforms. It operates at up to 1,600 bar with a six-hole nozzle and solenoid control, delivering the spray geometry and metering consistency that Euro 4/5 combustion strategies depend on. For workshops and parts distributors, the practical question is rarely "what is it"-it is whether this unit fits the bay, survives the fuel quality, and holds its calibration beyond the first oil change.



🔧 What the bench numbers actually tell you before you install



A CRI 1.2 injector lives or dies by its hydraulic tolerances, not its cosmetic condition. The 0445111180 carries a solenoid resistance window of approximately 0.255 Ω (tolerance ±0.040 Ω), and the armature residual air gap must sit within the factory band before the ECU can command a clean pilot injection. On the bench, return flow is the tell: a unit that passes a static resistance check but bleeds excess leak-off will trigger P0087 or P1093 codes once rail pressure demand rises under load. The six-hole DLLA nozzle on this injector is calibrated for DW10 chamber geometry; fitting a generic nozzle with the same thread but different spray angle shifts the burn centroid and quietly raises DPF soot loading without throwing a hard fault. The copper washer is a single-use crush seal-reusing one is the fastest way to create a compression leak that mimics an injector failure.



📊 Fitment matrix that matters at the parts counter



Attribute Specification
Injector family Bosch CRI 1.2 (solenoid)
Bosch part number 0 445 111 180 / 0445111180
Cross-reference PSA 9657144580, 9656335480; Renault 8200399930; Ford 6C1Q-9K546-AA
Engine platforms PSA DW10 / DW12 (Euro 4/5); Renault G9T 1.9L, 2.0L, 2.2L
Vehicle applications Peugeot 407/607/807/Expert; Citroën C5/C8/Jumpy; Renault Espace/Laguna/Trafic/Master; Ford Transit (PSA diesel)
High-pressure pump pairing Bosch CP1 series (0445010049, 0445010090)
Operating pressure Up to 1,600 bar
Nozzle configuration 6-hole, factory-calibrated



🛣️ Where this injector earns its keep-and where it fails



The DW10 and G9T engines share a reputation for tolerating neglect longer than they should, which is precisely why 0445111180 failures cluster around two operating profiles. Short-haul Trafic and Expert vans that never reach full rail pressure accumulate varnish on the control plunger, causing hot-start hesitation before any code appears. Meanwhile, Master and Espace units under sustained load develop needle seat erosion from water contamination that passes the factory filter-visible as a rising return flow rate at 800–1,200 rpm. A genuine Bosch unit restores the injection timing map the ECU expects; a remanufactured or counterfeit unit with a mismatched IQA/trim code forces the ECU into a permanent adaptation drift that no relearn procedure can correct.



💡 The installation sequence that separates a comeback from a repair



The most common installation error on 0445111180 is not torque-it is seat preparation. The copper washer seals against the cylinder head bore, not the injector body. Any carbon ring left in the bore creates a micro-leak that pressurizes the hold-down clamp area and eventually cracks the injector body flange. Clean the bore with a nylon brush, not a metal scraper, and confirm the new washer sits flat before torquing the clamp in two stages. After installation, clear rail pressure adaptation in the ECU and perform a leak-off test at idle and 1,500 rpm before road testing. If return flow exceeds 40 ml/min per injector at idle on a warmed engine, stop-the unit is either defective or the CP1 pump is sending debris downstream. The inlet filter screen on the injector is a last line of defense, not a diagnostic tool; a clogged screen means the pump or filter housing is already shedding material.



❓ FAQ for diesel repair shops and parts buyers



Q1: Can I mix a new 0445111180 with three existing injectors on the same DW10?
A: Only if the original three pass a leak-off and flow bench test within 5% of each other. Beyond that spread, replace the set-mixed calibration causes uneven pilot injection quantities the ECU cannot trim out.

Q2: The box says "Made in Germany" but the body looks different from my old unit. Counterfeit?
A: Bosch has shifted some CRI 1.2 production between Germany and Turkey without changing the part number. Verify the laser-etched 2D code and IQA code match the calibration certificate-counterfeit batches often share identical trim codes.

Q3: Realistic service life on a Trafic or Expert?
A: With fuel filter changes at 20,000 km, expect 80,000–120,000 km of mixed use. Stop-start delivery work shortens this to around 70,000 km, as the control valve never reaches steady-state temperature to burn off deposits.

Q4: Does it require coding after installation?
A: Yes. The IQA/trim code must be written into the ECU injector classification map. Skipping it lets the engine start but locks in a default strategy that raises NOx and can trigger P2002 on Euro 4 platforms.

Q5: My CP1 pump has 200,000 km-replace it with the injectors?
A: Not automatically. Confirm the pump sustains 1,350 bar at 3,000 rpm under load first; a weak CP1 forces longer injection durations that accelerate needle seat wear on new injectors.

Q6: Best visual check for a genuine unit out of the box?
A: The return port bore and connector pins. Genuine units have a mirror-finished bore with no machining ridges and pins sitting flush; counterfeits show tool marks and unevenly protruding pins.
