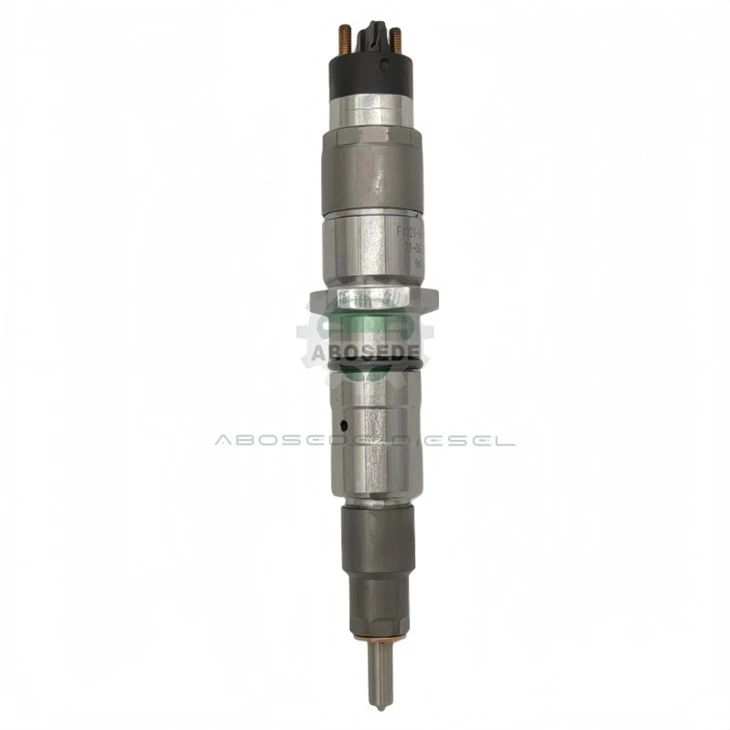

Bosch 0445120272 Common Rail Injector For Cummins ISC & CNH Applications

This Bosch 0445120272 common rail injector is a new OEM-grade unit engineered for Cummins ISC 8.3L and QSC/ISL diesel platforms, also serving as the CNH service replacement 87581565 for Case IH and New Holland agricultural tractors. It supersedes earlier Bosch references 0445120112 and 0445120035, consolidating multiple legacy part numbers into a single validated injector family. For workshops maintaining mixed fleets of highway trucks, Magnum tractors, and TG-series harvesters, this consolidation reduces stock-keeping complexity while preserving the hydraulic and electrical characteristics required by the Bosch common rail management system.

Beyond the Cummins ISC 8.3L highway and vocational applications, this injector is the correct choice for Case IH Magnum 215/245/275/305/335 and MX215/245/275/305 tractors, alongside New Holland T8010 through T8050 and TG215/TG245/TG275/TG305 models that carry the CNH 87581565 designation . A critical fitment trap deserves emphasis: the same tractor model lines were also fitted with CNH 84346812 (Cummins 5263308) and CNH 84347519 (Cummins 5263310), which are physically similar but hydraulically distinct injectors. Ordering by tractor model alone invites a mis-fit; the injector number on the removed core or the engine serial number must be the deciding reference. Additionally, EPA 2007 and later ISC engines using Cummins XPI injectors (such as 2872127) fall outside this injector's scope .

The most consequential installation error with 0445120272 is reusing the copper combustion seal or the O-ring on the injector body; deformation of the nozzle cap and subsequent compression leakage follow predictably. The cylinder head seat must be cleaned to bare metal-no carbon ring, no residual washer fragments-before the new heat shield washer is seated. High-pressure connector tubes should be replaced rather than reused when the injector is changed, and the fuel inlet fitting torque must follow the engine manual's specification, not generic values.

For a repair shop, the decision to replace 0445120272 rarely hinges on a single fault code. The economically rational trigger is excessive return flow confirmed by a leak-off test: when one injector returns visibly more fuel than its benchmates, rail pressure delivery at idle and under load becomes compromised, and the ECM begins compensating through injector balance rates that drift outside ±3 mm³/stroke. At that point, the injector is not merely inefficient-it is loading the high-pressure pump with additional work and diluting the engine oil with unburned diesel. Replacing a full set of six at the first confirmed outlier prevents the domino failure pattern where a single leaking injector carbonizes the next cylinder's nozzle through elevated exhaust temperatures .

Q1: A customer's T8030 has a rough idle and white haze at cold start. The old injector says 0445120112. Can I install 0445120272 without reprogramming?
A: The mechanical fit is identical, but the correction code on the new injector body must be entered into the ECM. Without it, the ECU applies legacy trim values that no longer match the new unit's flow characterization, and the rough idle will persist.

Q2: How do I distinguish a genuine 0445120272 from a counterfeit before installing it?
A: Check the laser-etched code on the injector body against the label, and verify the solenoid resistance cold before installation. Counterfeit units often show resistance outside the 1.5–3.5 ohm window and lack the fine surface finish on the nozzle cap.

Q3: The leak-off test shows one injector returning 40% more than the others, but the engine runs fine. Should the shop replace it now or wait?
A: Replace it. Elevated return flow indicates control valve seat wear that progresses non-linearly. Waiting until misfire codes appear risks fuel dilution of the oil and accelerated wear on the high-pressure pump.

Q4: Can I mix a new 0445120272 with five remanufactured 0986435532 units on the same engine?
A: Discouraged. The ECM's cylinder balance strategy assumes consistent hydraulic response across all six positions. Mixing new and reman introduces flow scatter that the injector correction codes cannot fully reconcile, producing a persistent light surge at cruise.

Q5: What is the core acceptance criterion for AP55532 remanufactured returns?
A: The core must have an intact solenoid housing, unmodified electrical connector pins, and no signs of water ingestion or rust pitting on the control valve bore. Cores with snapped nozzle tips or thread damage on the inlet fitting are typically rejected or charged at full value .

Q6: After installing a fresh set, the engine cranks but will not fire. What is the most common missed step?
A: Air trapped in the high-pressure circuit. Crank with injector lines loosened at the rail until fuel weeps, then torque and clear codes. Do not crank for extended periods with the rail pressure regulator connector attached, as the ECM may log a plausibility fault that inhibits start.
