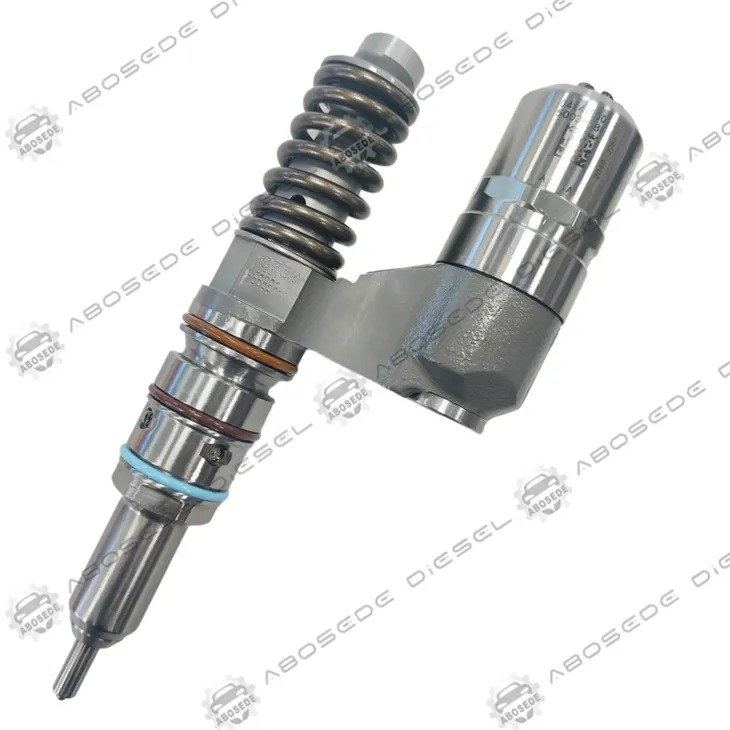

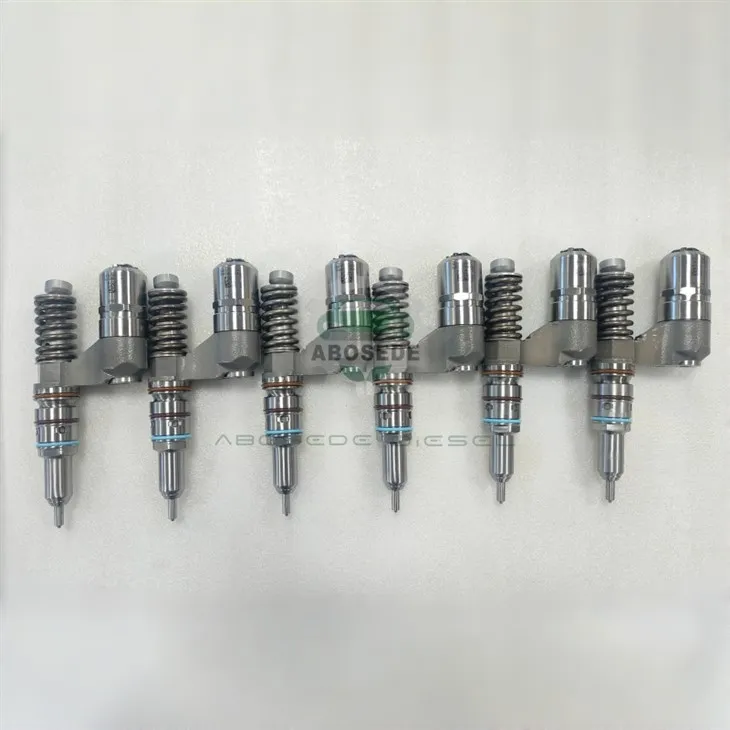

0414700006 | 504100287 Bosch Iveco Unit Injector: The Test Bench Data Blueprint

When assessing the health of a heavy-duty transport engine, guesswork is a liability. For fleet mechanics and diesel workshops servicing the Iveco Cursor series, the real truth of engine performance isn't found on a dashboard diagnostic tool-it is mapped out milligram by milligram on a professional diesel test bench.

Every 0414700006 Bosch fuel injector (OEM cross-reference 504100287 Iveco) operates within extremely strict fluid dynamic tolerances. To help workshop owners, parts distributors, and fleet managers recognize the engineering benchmarks of a premium-grade unit, we dive directly into the five critical test bench measurement phases that separate a failing injector from a factory-spec component.

A certified diesel test bench evaluates a Unit Injector System (UIS/PDE) by simulating extreme operational loads. If an injector deviates by even a fraction of a cubic millimeter ($mm^3$) per stroke during any of these phases, the truck will experience fuel inefficiency, power loss, or systemic engine wear.

🛑 Phase 1: High-Pressure Static Leakage Test

Before any dynamic injection occurs, the 0414700006 heavy duty injector is subjected to an intense static pressure hold. This step verifies the structural integrity of the internal control valve seals, nozzle seat, and external sealing rings.

What We Measure: The presence of micro-drops at the nozzle tip or pressure drops within the test gallery.

The Engineering Reality: Any structural fluid bypass during the leakage test indicates internal metal fatigue or scoring on the valve plate. If it fails here, high-pressure diesel will bleed off continuously, causing hard starting when the engine is hot.

🚀 Phase 2: Full Load (FL) Delivery Rate

This phase simulates a fully loaded Iveco Stralis or EuroTrakker truck pulling heavy cargo up a steep incline at maximum rated engine speed.

What We Measure: Maximum injection quantity delivered into the test chamber per 1,000 strokes.

The Engineering Reality: Full load testing verifies the maximum flow capacity of the nozzle orifices. A lower-than-specified injection volume causes localized fuel starvation, lower horsepower output, and high exhaust gas temperatures (EGTs). Conversely, an excessive delivery rate leads to black smoke, wasted fuel, and thermal stress on the pistons.

🔄 Phase 3: Dynamic Return Flow (Back Leakage) Evaluation

Unit injectors generate massive internal hydraulic forces. The return flow measurement tracks the amount of diesel diverted back to the fuel tank via the cooling and spill circuits during active operation.

What We Measure: The precise ratio of delivered fuel to bypassed fuel.

The Engineering Reality: High back leakage means the internal clearances between the control plunger and the injector body have widened due to abrasive wear. This diverted energy causes the injector body to overheat, accelerating fuel breakdown and reducing overall system efficiency.

🕊️ Phase 4: Stable Idle Speed (LL) Measurement

Maintaining smooth engine operation at a standstill requires the injector to deliver microscopic, highly uniform volumes of fuel under low-frequency pulse widths.

What We Measure: Delivery consistency during low-load, low-pressure simulations.

The Engineering Reality: If the idle delivery values across all cylinders are mismatched, the engine will suffer from severe cabin vibrations, rough idling, and white smoke at startup. This phase is highly sensitive to spring tension wear inside the nozzle holder.

The 0414700006 fuel system components are engineered for heavy-duty commercial transport applications where structural resilience is paramount.

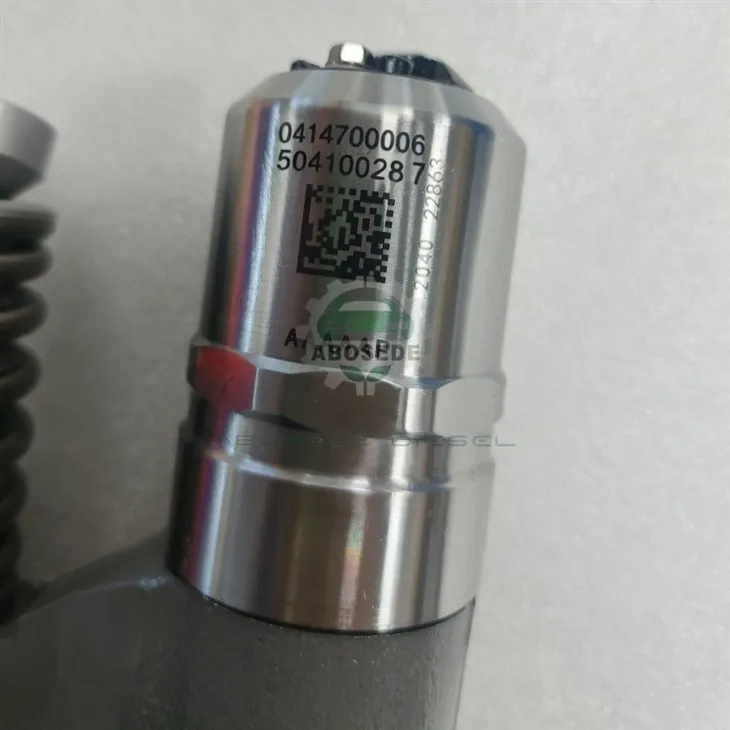

Primary Manufacturer Number: 0414700006 / 0414 700 006

Iveco OEM Designation: 504100287 / 5041002870

Engine Integration: Iveco Cursor 8 / Cursor 10 Euro 4 & Euro 5

Fuel System Type: Mechanical-Electronic Unit Injector (UIS / PDE)

Q1: Why do test benches measure return flow separately from the main injection quantity?

A: Main injection quantity measures the fuel that actually enters the cylinder to create combustion power. Return flow measures the fuel used to lubricate, cool, and actuate the internal hydraulic valves. If return flow is too high, it proves that internal fluid pressures are bypassing worn seals, leaving insufficient pressure to achieve a crisp, clean atomization spray.

Q2: What causes a 504100287 Iveco unit injector to pass the full load test but fail the idle test?

A: This is almost always caused by spring fatigue or a slight varnish buildup on the needle valve seat. At full load, the massive hydraulic force easily overcomes minor physical resistance or minor spring variances. At idle, however, the activation pulses are minimal, so any loss of spring tension or slight mechanical stickiness prevents the nozzle from sealing fast enough, causing irregular delivery.

Q3: How do microscopic fuel filter particles affect the leakage test results on a professional bench?

A: Particles as small as 3–5 microns act like high-speed knives inside the injector body. When they lodge between the control valve seat and the valve plate, they prevent the valve from fully closing. During a static leakage test, this microscopic gap creates a permanent pathway for fuel bypass, causing a sharp drop in system operating pressure.

Q4: If my test bench data shows correct injection quantity values but a slow response time, what is wrong?

A: A delayed response time typically indicates electrical or magnetic degradation inside the top solenoid coil, or a slight mechanical lag in the actuator armature. Even if the total volume of fuel delivered is correct, a slow response disrupts the engine's injection timing map, which can lead to premature knocking and increased emissions.

Q5: Can I adjust a rebuilt 0414700006 injector to match test bench specs without changing the nozzle?

A: Only if the nozzle orifices are completely unworn and free of carbon distortion. If the nozzle has experienced internal micro-erosion from high mileage, no amount of shimming or calibration adjustment will restore the factory-correct spray pattern. In professional remanufacturing, replacing the nozzle tip is mandatory to guarantee stable bench results.
