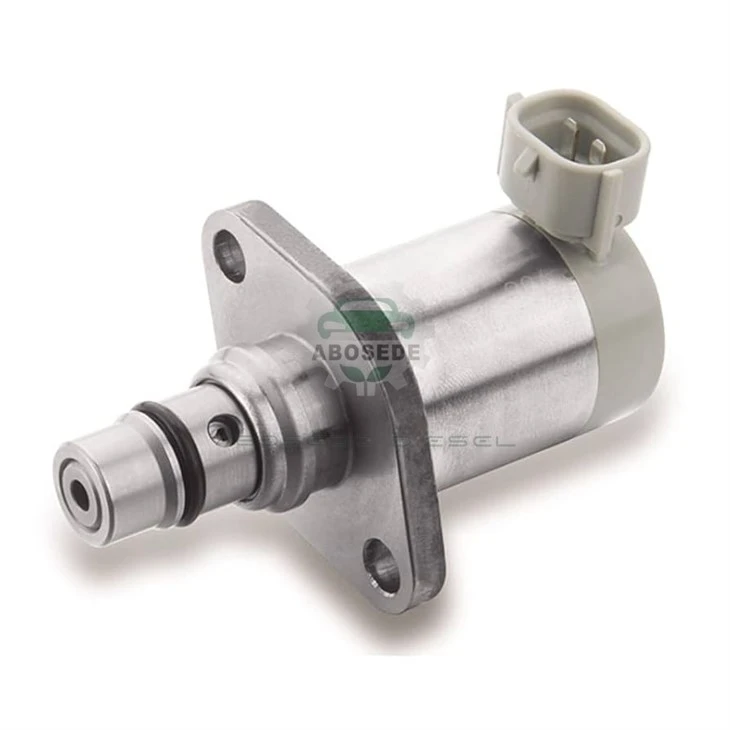

294200-2960 04226-0L020 Common Rail SCV Suction Control Valve Application For Toyota Mazda

A diesel engine's high-pressure common rail system houses an inconspicuous yet crucial component. Like a precise dispatcher, it silently controls the engine's "lifeline"-the SCV valve (control valve). Today, we'll focus on two key components, the 294200-2960 and 04226-0L020,common rail SCV Suction Control Valve application for Toyota Mazda, which play a crucial role in diesel powertrains.

Unlike ordinary mechanical components, the SCV valve regulates supply through precise electronic control, and its performance is directly related to whether the engine can operate at its optimal level. Much like a heart valve controls blood flow, the SCV valve ensures the diesel engine receives the proper supply.

Although the 294200-2960 and 04226-OL020 SCV valves have similar functions, they are designed for different engine platforms, much like different keys opening specific locks. Understanding their compatibility and usage characteristics is crucial for diesel vehicle maintenance. Below, we'll provide a detailed introduction to the technical specifications, compatible vehicle models, and key inspection and maintenance requirements for these two products from a practical application perspective.





Compatible Pump and Engine

Compatible Pump: Denso HP4 High-Pressure Pump

Main Compatible Engines:

Toyota 1GD-FTV (2.8L Diesel, 2015+)

Toyota 2GD-FTV (2.4L Diesel, 2015+)

Mazda SKYACTIV-D 2.2 (2012+)

Compatible Models

Toyota: Hilux (2015+), Fortuner (2015+), Land Cruiser Prado (2018+)

Mazda: CX-5 (2012+), BT-50 (2016+)

Universal Replacement Model

294200-0360

294200-0400





Applicable oil pump and applicable engine

Applicable oil pump: Bosch CP4.1 high-pressure oil pump

Main applicable engines:

GM Duramax 2.8L (LWN, 2016+)

Isuzu 4JJ1/4JK1 (3.0L/2.5L diesel, 2015+)

Applicable models

Chevrolet: Colorado (2016+), Silverado 1500 (some diesel versions)

Isuzu: D-Max (2015+), MU-X (2015+)

GM replacement model

04226-OL010

04226-OL030







(1) Resistance detection

Tool: Multimeter (Ohm range)

Steps:

Disconnect the SCV valve plug and measure the resistance at both ends.

Standard value:

294200-2960: 3~6Ω

04226-OL020: 2.5~5Ω

If the resistance is 0Ω (short circuit) or ∞ (open circuit), it means the valve body is damaged.

(2) Power-on test

Tool: 12V DC power supply

Steps:

Power on briefly with a 12V power supply (1~2 seconds).

A normal SCV valve will make a "click" sound (valve core movement).

If there is no sound, it means the valve core is stuck or the coil is faulty.

(3) Signal detection

Tool: Car diagnostic instrument or oscilloscope

Steps:

Connect the diagnostic instrument and read the system data stream (such as PWM signal).

Normal signal: frequency 100~500Hz, duty cycle changes with throttle.

If there is no signal, check the ECU, wiring harness or fuse.

(4) Oil pressure test

Tool: High-pressure pressure gauge

Steps:

Connect the pressure gauge and start the engine.

Standard oil pressure:

Idle speed: 250~400 bar

High load: 1500~2000 bar

If the pressure is abnormal, check the SCV valve or high-pressure oil pump.





Fault phenomenon:

Low engine power, difficulty starting

Fault code P0087 (low pressure), P0093 (leakage)

Replacement suggestion:

Use original or highly compatible replacement parts to avoid damage to the oil pump due to inferior products.

After replacement, use a diagnostic tool to clear the fault code and reset the adaptation value.
