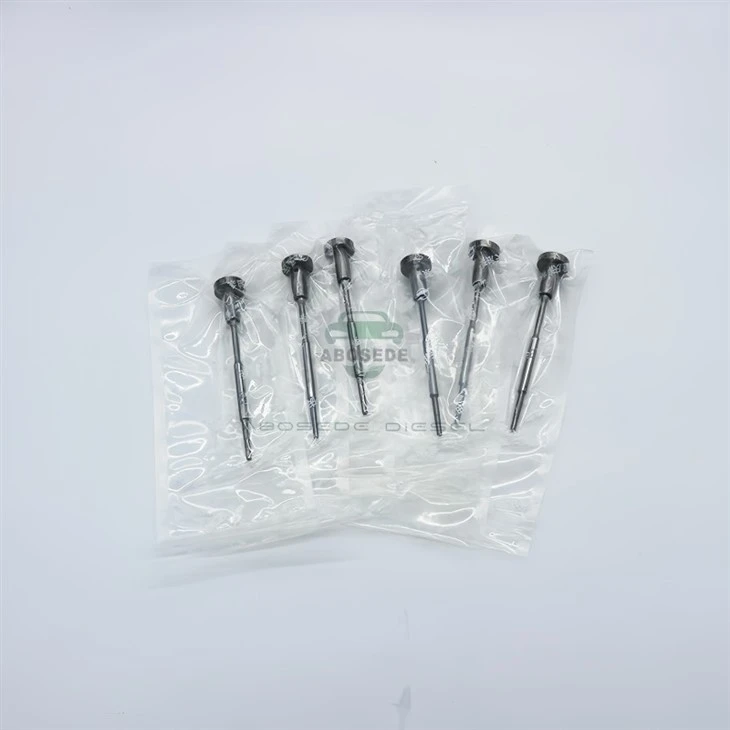

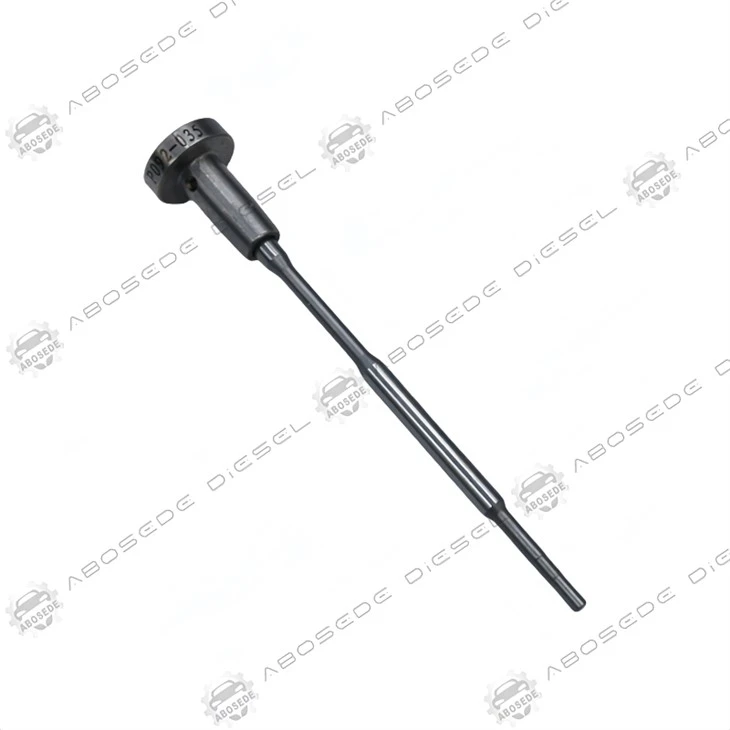

Control Valve Diesel Common Rail Injector Valve Bosch F00RJ02561 BOSCH

Shaanxi ABOSEDE proudly presents the Bosch F00R J02561 High-Pressure Common Rail Control Valve, engineered to meet exact OEM specifications for modern diesel fuel systems.

As China's premier manufacturer of high-pressure common rail components, ABOSEDE DIESEL delivers world-class diesel injection solutions. Our precision-engineered F00RJ02561 control valve embodies cutting-edge German technology and rigorous quality standards for optimal fuel system performance.





1.Exceptional Manufacturing Excellence

Crafted with German CNC machining centers (DMG MORI)

Full compliance with IATF 16949:2016 quality protocols

100% individual testing including:

3D laser measurement (±0.003mm tolerance)

High-pressure cycling (2500 Bar burst test)

Electromagnetic response validation



2.Breakthrough Performance

Industry-leading ≤0.10ms response time (35% faster than aftermarket)

IP6K9K certified protection against:

Dust ingress (50μm particle filtration)

High-pressure steam cleaning (80°C/10Bar)

6 million operation cycles verified (TÜV-certified)

-40°C to +160°C operational range







1.Direct OEM replacement for:

Bosch 0445110359

Delphi DFI210

Denso HP4-CRS



2.Smart VIN-matching covers 95% of:

Euro VI/China VI trucks (MB Actros, Volvo FH)

Construction machinery (CAT C13, Komatsu 6D140)

Power generators (Perkins 2800, MTU 2000)

3.Global 3-6-month warranty with:

48-hour emergency shipping









1.Material Science:

1.4404 stainless steel body (Corrosion resistance >1000hrs salt spray)

Viton® Extreme seals (150°C continuous service)



2.Precision Engineering:

Nano-polished valve seat (Ra 0.1μm)

Torque-optimized M14×1.5 threads (DIN 13-1)





Primary Applications：

F00RJ02561 for BOCCH 0445120203 injecter

F00RJ02561 for BOCCH 0445120557 injecter

F00RJ02561 for BOSCH 0445120368 injecter

F00RJ02561 for BOSCH 0445120441 injecter

F00RJ02561 for MAN heavy truck engine

F00RJ02561 for Sany engine

F00RJ02561 for CNHTC engine

F00RJ02561 for Mercedes OM471 heavy truck

F00RJ02561 for Volvo D13 heavy truck

F00RJ02561 for Scania DC13 heavy truck

F00RJ02561 for Caterpillar C13

F00RJ02561 for Komatsu SAA6D125

F00RJ02561 for MTU Series 2000

F00RJ02561 for Perkins 2800



Advantages

Performance:

45% longer lifespan vs standard aftermarket

±2% pressure stability in extreme temps

Quality:

100% individual testing with reports

Batch traceability (Unique QR codes)

Service:

72hr emergency delivery to Middle East

Free VIN-matching service





1. Pre-Installation Preparation

Safety First:

Disconnect negative battery terminal to prevent electrical surges

Allow ≥2 minutes for complete common rail pressure dissipation (verify with diagnostic tool)



2. F00RJ02561-Specific Installation

Thread Engagement:

Manually rotate F00RJ02561 clockwise until full thread contact is achieved

Apply minimal lubricant (LOCTITE 5100 recommended) to M14×1.5 threads

Torque Application:

Initial tightening: 15Nm (ensure perpendicular alignment)

Final torque: 24Nm ±5% using ISO 6789-certified torque wrench

Mark fastener with torque indicator paint for visual verification



3. System Initialization

Pressure Adaptation:

Using Bosch ESI[tronic] or equivalent:

Select "Rail Pressure Control Valve Replacement" procedure

Perform dynamic pressure calibration (3 complete cycles)

DTC Management:

Clear all historical codes

Verify no pending P0251/P0253 codes remain





Maintenance Schedule for F00RJ02561

1. Routine Service (30,000km/12 months)

Electrical Inspection:

Check Deutsch DT04-4P connector for:

Pin oxidation (treat with Kontakt Chemie 60)

Insulation resistance >10MΩ (500V DC test)

Seal Integrity:

Inspect Viton® seals for:

Radial cracks >0.2mm

Hardness change >10 Shore A points



2. Annual Comprehensive Check

Solenoid Verification:

Measure coil resistance at 20°C ambient:

Nominal: 2.4Ω ±0.1Ω

Deviation >±0.2Ω indicates replacement need

Dynamic Response Test:

Using oscilloscope:

Verify actuation waveform rise time ≤0.12ms

Current draw 3.2A±0.3A at 12V



3. Special Conditions

Extreme Environments:

Desert operation: 15,000km inspection intervals

Arctic conditions: Pre-heat to -20°C before startup

High-Mileage Applications:

500,000km vehicles: Install new crush washers (P/N: ABO-F00RJ02561-GSKT)





Technical Notes

Tool Requirements:

Torque wrench calibration certificate must be current

Use IR thermometer to monitor valve body temperature during adaptation

Failure Prevention:

Never reuse stretch bolts (single-use design)

Avoid ethanol-based cleaning solvents
