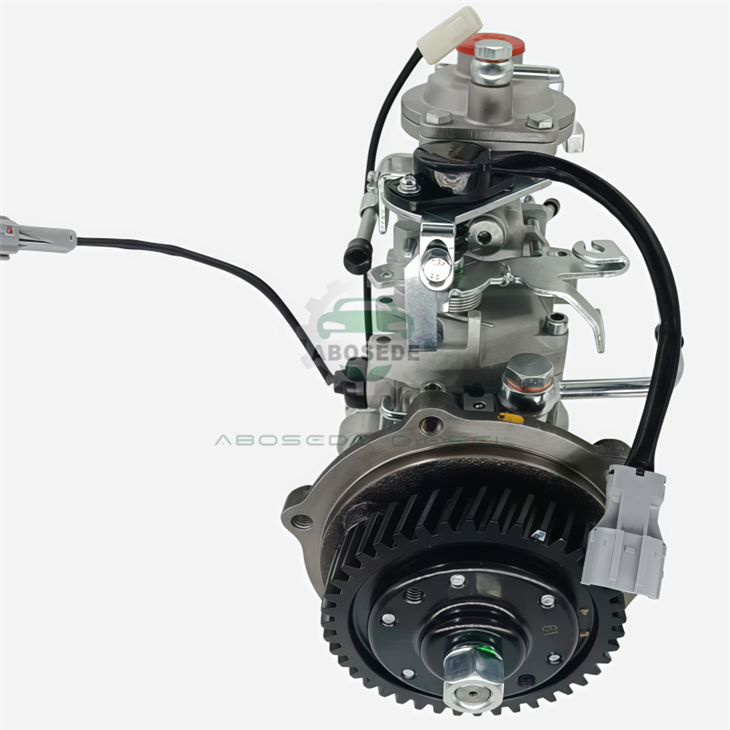

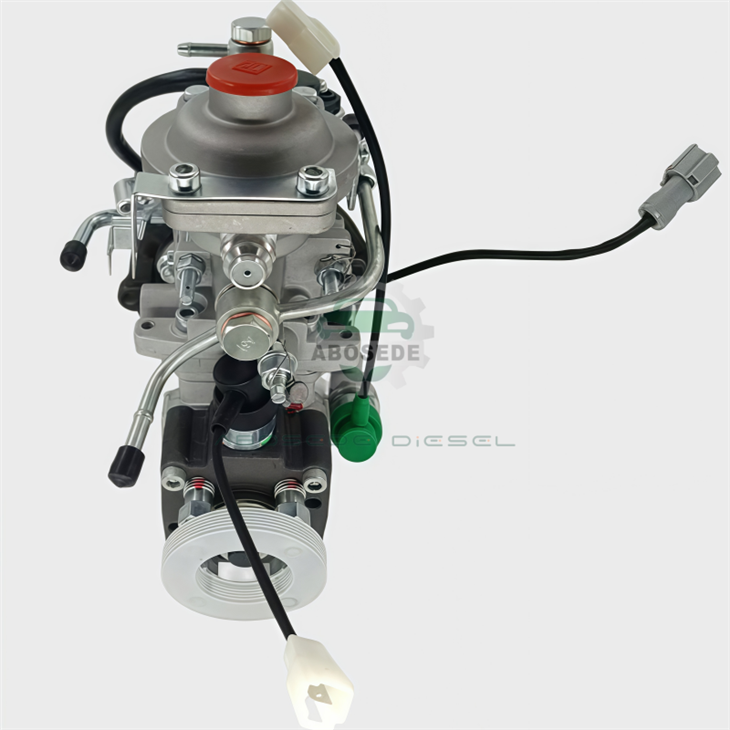

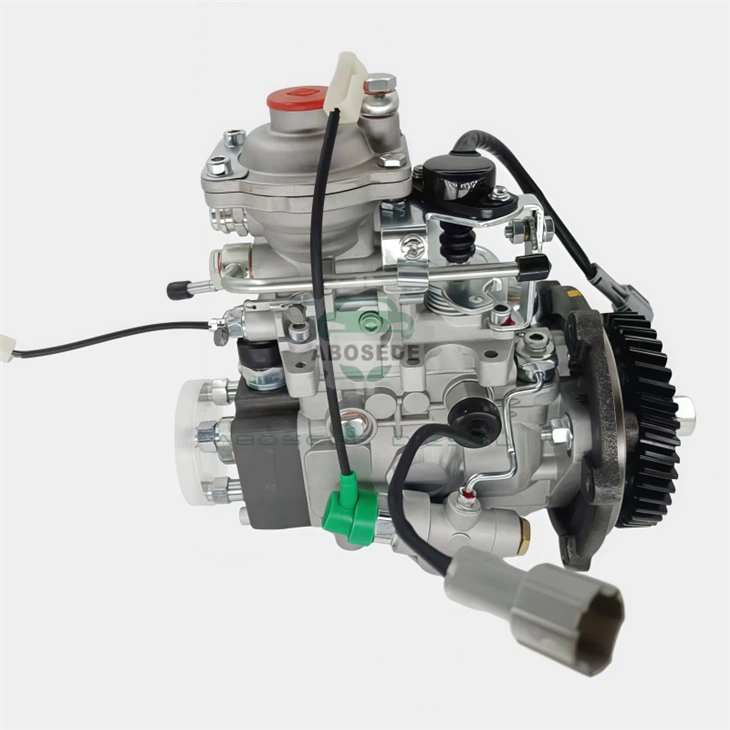

Restore Torque & Reliability: The Definitive Guide To The NJ-VE411F1900L064 Injection Pump



In the lifecycle of a diesel engine, the moment power begins to fade is the moment efficiency turns into loss. For operators of legacy diesel fleets and industrial machinery, the injection pump is not merely a component; it is the heart of the operation. When performance metrics-such as cold start capability, idle stability, and mid-range torque-begin to slip, the root cause is often traced back to wear within the fuel delivery system. This document focuses on the NJ-VE411F1900L064, a high-precision replacement unit designed to arrest this decline. We move beyond simple part swapping to analyze how this specific assembly restores the hydraulic and mechanical equilibrium required for peak engine performance.



⚙️ Technical Data & Operational Specifications



Understanding the precise capabilities of the NJ-VE411F1900L064 is essential for ensuring it meets the rigorous demands of your specific engine application. This unit is engineered to strict tolerances, mirroring the output characteristics of original equipment manufacturer (OEM) standards.

Key Performance Metrics:



Parameter	Specification	Engineering Note
Model Architecture	VE4/11 F 1900	4-Cylinder Distributor Type
Plunger Diameter	11mm	Optimized for balanced flow/pressure
Rotation Direction	Clockwise (Right Hand)	Standard for most automotive applications
Governor Mechanism	Mechanical Centrifugal	Ensures stable RPM control without electronics
Max Output Torque	~80 Nm	Sufficient for heavy-load low-speed operation
Fuel Compatibility	Diesel / Bio-diesel (B20)	Seals rated for modern fuel blends

Engineering Note: The "1900" designation in the model number typically refers to the specific calibration curve and cam plate profile, which dictates the fuel delivery rate across the RPM band.





Selecting the correct injection pump requires more than matching the physical footprint; it requires understanding the "language" the pump speaks to the engine. The NJ-VE411F1900L064 is specifically calibrated for engines that rely on a direct mechanical linkage for throttle control, rather than electronic drive-by-wire systems found in newer Common Rail setups.

Primary Applications:

Automotive: Ideal for retrofitting or replacing failed units in light commercial trucks and SUVs (specifically 2.5L - 2.8L displacement engines).

Industrial Power: Suitable for agricultural tractors and irrigation pumps where electronic complexity is a liability and mechanical robustness is a necessity.

Generator Sets: Provides stable frequency control due to its responsive mechanical governor.

Selection Logic:
Before purchasing, verify the "L" code on your existing dataplate. The NJ-VE411F1900L064 features a specific lever arrangement (indicated by the 'L' suffix). If your current setup uses a cable-operated throttle, this unit is the correct match. However, if your system utilizes an electronic actuator (solenoid), a different variant would be required. Mismatching here results in a physically fitting part that cannot be controlled by the driver.





The internal architecture of the NJ-VE411F1900L064 represents the pinnacle of rotary distributor pump technology. Unlike inline pumps which are bulky, or Common Rail pumps which are electronically dependent, the VE series offers a compact, self-contained solution.

The Head Assembly: At the core lies the cam plate and roller ring mechanism. As the drive shaft rotates, the cam plate converts rotary motion into reciprocating motion, forcing the plungers against the rollers. This pressurizes the fuel. In the NJ-VE411F1900L064, these surfaces are hardened to resist the abrasive wear caused by contaminated fuel, a common issue in developing markets.

Pressure Regulation: The unit integrates a vane-type transfer pump on the input side. This creates the necessary "head pressure" (typically 0.5 to 1.5 bar) to feed the high-pressure section. Crucially, the internal pressure regulating valve ensures that injection pressure remains consistent regardless of engine speed, preventing lean-out at high RPMs.

Governor Stability: The mechanical flyweight governor inside the rear housing senses engine speed. It physically adjusts the fuel collar position to prevent over-revving or stalling. This analog feedback loop is instantaneous, providing the "throttle feel" that operators of older diesel vehicles expect.





Integrating the NJ-VE411F1900L064 into an existing fuel system requires attention to detail regarding fluid dynamics and cleanliness. The lifespan of this precision component is directly correlated to the quality of fuel filtration.

Critical Maintenance Steps:

Static Timing: Upon installation, the pump must be pinned or timed using a dial indicator. Incorrect static timing will result in erratic combustion noise (diesel knock) or excessive exhaust gas temperatures.

Priming: Before cranking, the internal galleries must be primed. The dry-running tolerance of the vane pump is minimal; running it dry can score the housing and reduce priming capability permanently.

Leak-Off Management: Ensure the spill rail (leak-off) lines are unrestricted. Excessive back-pressure in the return line can force fuel past the seals into the oil sump, diluting the engine oil-a catastrophic failure mode known as "wet-sumping."

By adhering to these protocols, the NJ-VE411F1900L064 serves as a reliable anchor for the fuel system, delivering consistent injection volumes cylinder-to-cylinder, thereby smoothing out idle and reducing harmful emissions.





Q: My engine smokes heavily after installing this pump. Is the unit defective?
A: Not necessarily. Heavy smoke usually indicates incorrect static timing (retarded timing causes incomplete combustion) or air trapped in the fuel lines. Verify the timing marks and bleed the system thoroughly.

Q: Can the NJ-VE411F1900L064 handle B100 (100% Biodiesel)?
A: While the metal components are compatible, standard rubber seals in older style pumps may degrade with pure biodiesel over time. We recommend checking the seal material or sticking to B20 blends for maximum longevity without modification.

Q: What is the difference between a "Lever" control and a "Linkage" control?
A: A Lever control (like on the L064 model) typically uses a cable pulling on an arm attached to the pump. A Linkage system usually involves a rod connected directly to the pedal. Installing the wrong type makes it impossible to connect your accelerator pedal to the engine.

Q: Does this pump require an external lift pump?
A: Yes. The VE pump has an internal transfer pump, but it relies on an external electric or mechanical lift pump to supply fuel from the tank to the inlet port at a minimum pressure (usually >0.3 bar) to prevent cavitation.

Q: How do I adjust the idle speed on this unit?
A: There is a capped screw on the exterior of the governor housing. Removing the cap allows you to adjust the spring tension on the governor arm, which sets the base idle RPM. Note: Adjustments should only be made once the engine is at operating temperature.
