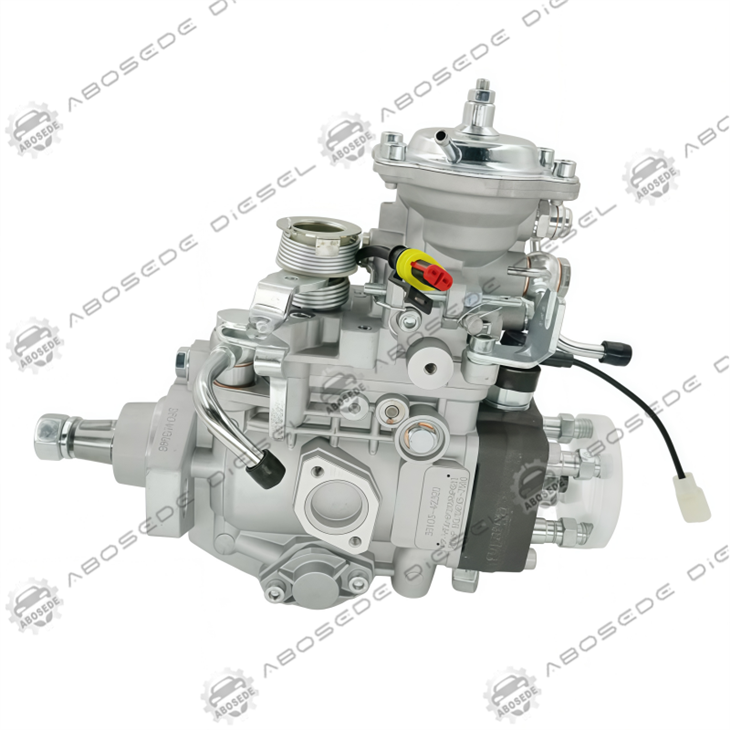

104745-7900 & 33103-42320 High-Pressure Common-Rail Pump: FMV Duty Cycle, Return-Fuel Heat Balance & Cross-Platform Fitment Risks
1. Product:104745-7900 33103-42320
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Two pump part numbers on one page do not automatically mean two interchangeable pumps. The 104745-7900 and 33103-42320 are high-pressure common-rail pumps referenced for different medium-duty and passenger/light-truck applications. They may share a radial-piston architecture, but their flange, drive spline, fuel metering valve response and pressure-limiting strategy can differ. In common-rail systems, rail pressure is not just a pump output number. It is the result of FMV duty cycle, inlet restriction, return-fuel temperature and pressure-limiting valve behavior. This guide focuses on cross-platform fitment risks, FMV learning, return-fuel heat balance and installation checks.
📌 Fitment & Cross-Reference Boundary
The 104745-7900 is commonly referenced for medium-duty commercial engines, while the 33103-42320 is associated with passenger and light-truck CRDi platforms. They should not be listed as universal replacements. Confirm engine model, ECU calibration, pump flange, drive spline, FMV connector, inlet/outlet fitting size and pressure-limiting valve setting before ordering. Also confirm condition: new, remanufactured or core-exchange. A pump that bolts to the engine but has the wrong FMV curve can still cause P0087, P0088, rough idle or injector damage.
📊 Core Data Comparison
| Parameter | 104745-7900 | 33103-42320 |
|---|---|---|
| Pump type | Radial piston high-pressure | Radial piston high-pressure |
| Plunger count | 3 | 3 |
| Max rail pressure | ≈ 1,600+ bar | ≈ 1,800+ bar |
| Fuel metering | FMV, PWM controlled | FMV, PWM controlled |
| Drive spline | Verify by engine | Verify by engine |
| Mounting flange | Platform specific | Platform specific |
| Lubrication | Diesel fuel self-lubricating | Diesel fuel self-lubricating |
| Fuel temp range | ≈ -40°C to +120°C | ≈ -40°C to +120°C |
| Pressure limiting valve | Calibrated to platform |
Calibrated to platform
|
⚙️ FMV Duty Cycle & Rail Pressure Control
The fuel metering valve controls how much fuel enters the plunger chambers. The ECU sends a PWM duty cycle, and the FMV changes the effective inlet area. At low load, the valve stays nearly closed. At high load, it opens further to support pressure build-up. If the FMV is sticky, contaminated or calibrated for a different platform, rail pressure overshoots or undershoots. The ECU then adjusts duty cycle, but correction authority is limited. Log commanded FMV duty cycle versus actual rail pressure at idle, mid-load and full-load. A growing correction value points to FMV wear, inlet restriction, air ingress or return-fuel backpressure. Do not assume the pump is worn before checking FMV response and low-pressure supply.
