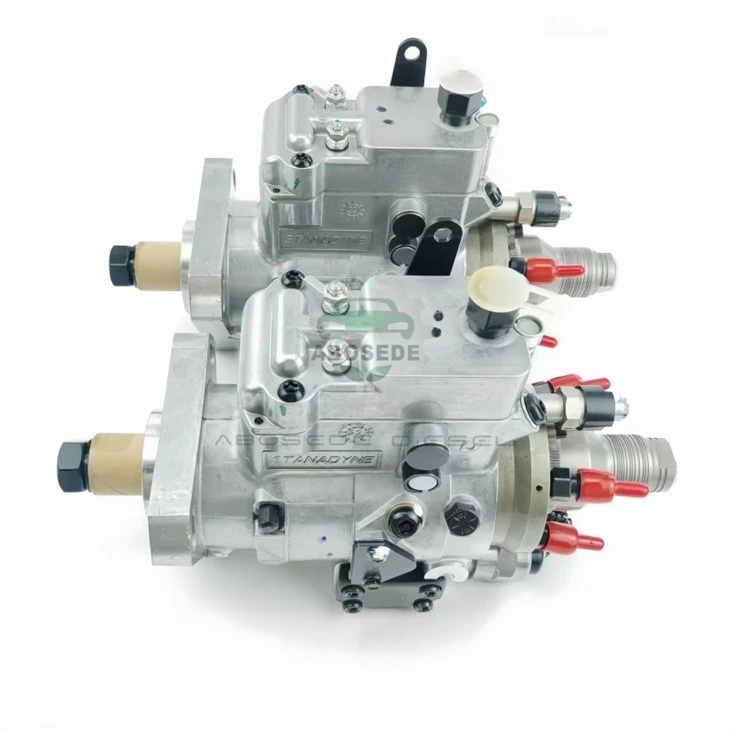

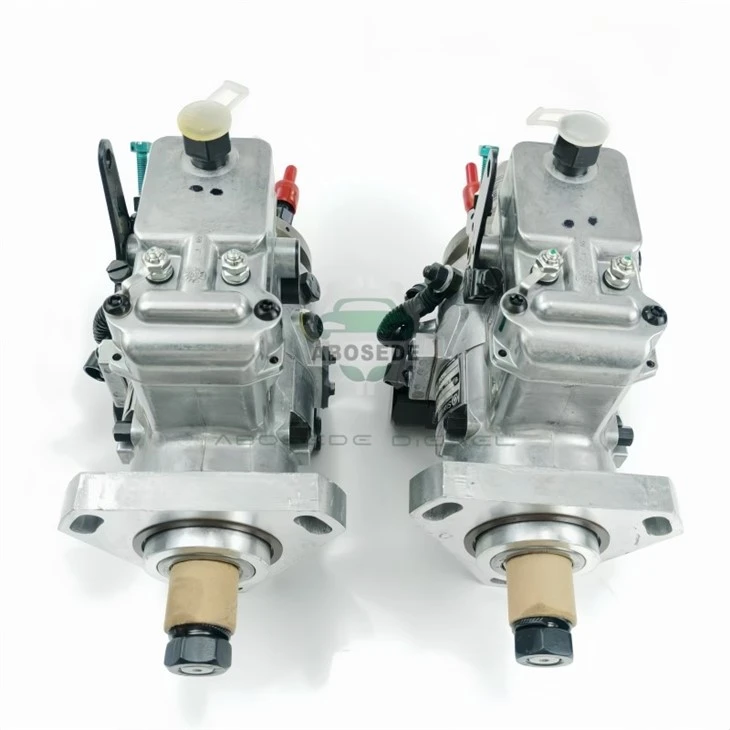

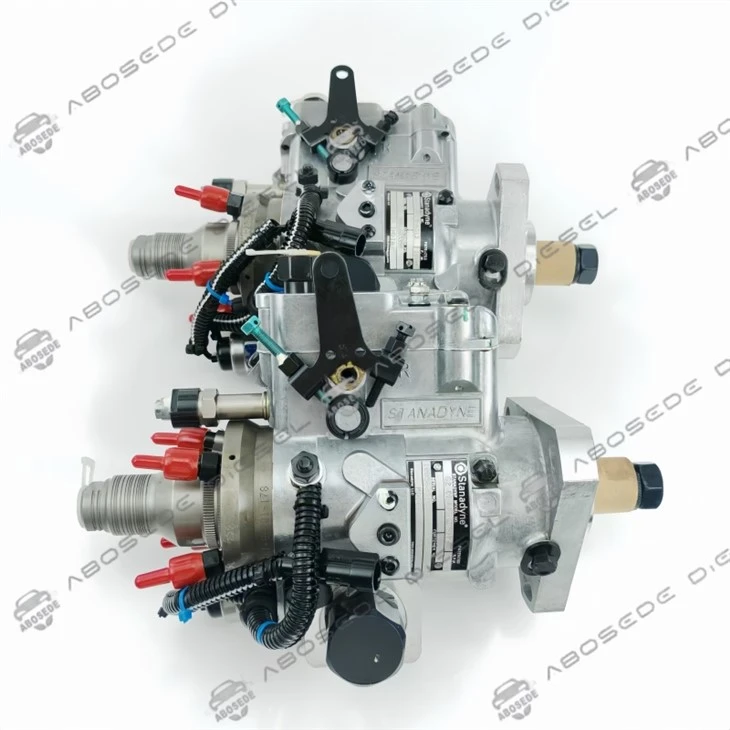

DB4429-6312 Stanadyne Rotary Fuel Injection Pump For FPT NEF 45 Generator Engines

DB4429-6312 is a Stanadyne-built rotary fuel injection pump engineered for Fiat Powertrain NEF 45 diesel engines deployed in 80kVA / 82 kW generator sets (Tier 0 configuration). This pump carries the FPT OEM reference 5801683395 and Stanadyne's internal designation 06312, making it a direct-fit replacement for standby and prime power applications where fuel delivery consistency directly affects voltage stability and load acceptance. For workshops servicing agricultural or industrial gensets, this unit eliminates the guesswork of cross-referencing aftermarket equivalents-it arrives calibrated to the NEF 45's mechanical injection window, ready for installation after basic timing verification.

The NEF 45 engine family powers a narrow but demanding slice of the off-highway and stationary equipment market. You'll find DB4429-6312 specified primarily on FPT generator drives rated at 80–82 kW, commonly installed in rental fleet gensets, telecom backup power units, and small industrial prime power installations across Europe and North America. Because the NEF 45 is a 4.5-liter four-cylinder workhorse, these generators frequently run at fixed 1500 or 1800 RPM depending on the market's frequency standard-a duty cycle that punishes pumps with continuous thermal load and fuel shear. Beyond generators, the NEF 45 platform appears in certain agricultural telehandlers and stationary irrigation power units, though the DB4429-6312 calibration is specifically tailored to the generator governor profile. Shops that service mixed fleets should note this pump is not a universal NEF 45 replacement; generator-spec pumps carry different torque and fuel delivery curves than those built for traction applications.

Before the old pump leaves the engine, record the pump shaft position relative to the gear housing timing mark-the Stanadyne rotary design does not tolerate blind reinstallation, and the NEF 45's front gear train offers limited visibility once the pump is bolted down. Use a degree wheel or the factory timing pin procedure to establish baseline alignment, then transfer the drive gear to the new unit without rotating the shaft independently. The mounting flange uses three fasteners torqued to specification; do not rely on impact tools here, as distortion of the aluminum housing shifts the distributor's internal clearances. Prime the pump with clean diesel before cranking-dry-starting a rotary pump scores the vanes and head almost immediately. After installation, verify fuel pressure at the inlet during crank and check for stable return flow; a restricted return line on a generator application often mimics pump failure when the actual fault lies in a collapsed hose or clogged orifice fitting.

The DB4429-6312 sits at the intersection of two realities in today's diesel service landscape: the aftermarket's obsession with common-rail platforms has left mechanical rotary pumps under-supported, yet the installed base of NEF 45 generator engines remains substantial and irreplaceable for many operators. A failed pump on a standby genset means a facility without backup power-a risk that pushes purchase decisions toward verified OEM-spec units rather than unproven budget alternatives. Stanadyne's rotary architecture is well understood by older diesel technicians, and the pump's failure modes are predictable: hard starting when hot, surging under load, or fuel dilution in the oil from a compromised shaft seal. For a repair shop, stocking or sourcing DB4429-6312 represents a calculated bet that generator maintenance contracts will continue flowing through the door. The six-month warranty standard on most distribution channels reflects the reality that these pumps either fail early from installation error or run for thousands of hours without complaint.

Q1: Is the 06312DX a direct swap for the standard 06312?
A: Yes-06312DX appears alongside DB4429-6312 in Stanadyne's supersession list. The DX suffix typically denotes a distribution packaging variant, not an internal calibration difference. Verify the pump body casting matches your core before returning a unit.

Q2: Can this pump be used on a NEF 45 in a telehandler or tractor?
A: Physically it bolts up, but the governor curve is generator-specific. Traction applications need a different fuel plate profile for torque rise. Install only if the machine operates at fixed RPM.

Q3: What's the most common cause of premature failure on these units?
A: Fuel contamination and return-line restriction. Gensets often sit idle for months; degraded diesel forms varnish on the distributor head. Sticking metering valves are almost always a fuel quality issue, not a pump defect.

Q4: Do I need to re-time the injection pump after installation?
A: Yes. The NEF 45 requires static timing verification at the pump flange. Dynamic timing is not adjustable on this mechanical system, but incorrect static position shifts the whole injection window.

Q5: Are remanufactured units a viable alternative for generator customers?
A: For prime power applications running continuous loads, new is safer. Remans are acceptable for standby-only units where annual runtime stays under 200 hours-provided the rebuilder replaces the distributor head and not just the seals.

Q6: Does this pump include the drive gear and mounting hardware?
A: No. DB4429-6312 ships as the bare pump assembly. Reuse the original gear, nut, and mounting bolts unless inspection reveals wear or galling on the taper.
