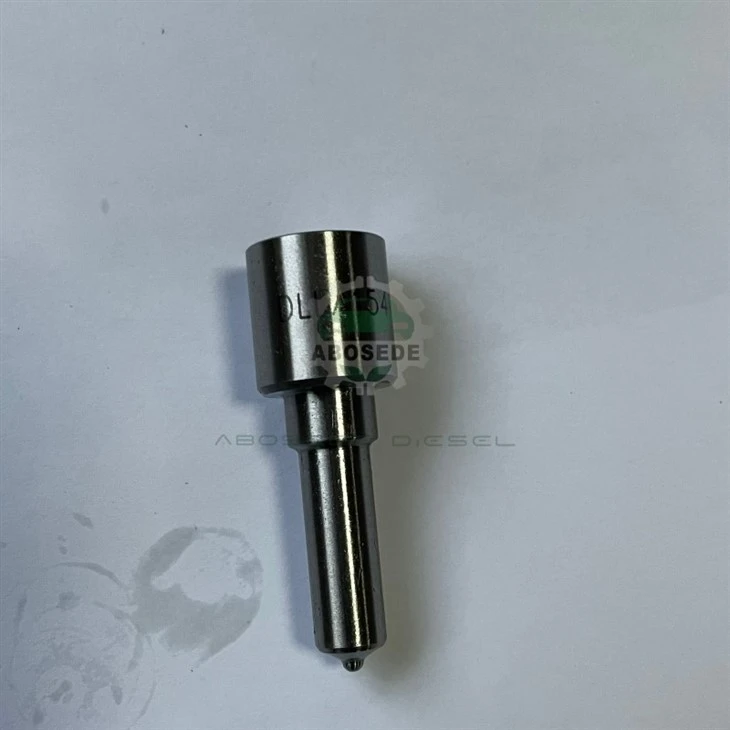

DLLA154PN270 Common Rail Nozzle For Isuzu 4JA1L / 4BG1 Engines

DLLA154PN270 is a high-precision common rail injector nozzle engineered for Isuzu diesel platforms, serving as the critical atomization interface between the high-pressure fuel system and the combustion chamber. Manufactured to Bosch injector kit specification 9 432 610 605 and cross-referenced to Zexel 105017-2700 and Isuzu 8972177630, this nozzle restores factory spray geometry and fuel delivery consistency in 4JA1L and 4BG1 engine families. For workshops handling Asian light commercial vehicles and industrial power units, stocking the correct nozzle reference eliminates comebacks caused by mismatched spray angles or incorrect hole configurations.

This nozzle is primarily specified for Isuzu 4JA1L and 4BG1 diesel engines, which power the Isuzu Elf light-duty truck series and various industrial applications including stationary generators and agricultural equipment . The 4JA1L engine family has a substantial installed base across Southeast Asia, Oceania, and parts of Europe where Isuzu light commercial vehicles remain in active service. For diesel parts distributors, carrying the DLLA154PN270 addresses a recurring demand from fleets operating older Elf models where injector servicing is more economical than vehicle replacement. The same nozzle reference also appears in industrial 4BG1 power units, broadening the addressable customer base beyond automotive workshops to include plant maintenance teams and generator service providers.

Nozzle replacement on CRDI injectors demands more than torque discipline; it requires validated cleanliness and calibration verification. Before mounting the DLLA154PN270, the injector body must be inspected for control valve seat wear and the inlet fitting checked for debris accumulation. The nozzle retaining nut torque must follow the Bosch injector kit specification exactly, as under-tightening allows combustion gas leakage past the nozzle seat while over-tightening distorts the nozzle body and shifts spray symmetry. After assembly, the injector must undergo leak-down testing and spray pattern verification on a calibrated bench; a nozzle that passes visual inspection but exhibits poor atomization under backpressure will cause rough idle and increased return flow . Rebuilders should also confirm the injector correction code is recorded and, where applicable, reprogrammed into the ECU to maintain fuel trim accuracy.

The economic case for replacing a worn DLLA154PN270 rather than discarding the entire injector is straightforward for workshops serving high-mileage Isuzu fleets. Nozzle wear manifests as enlarged orifice geometry, eroded needle seating, and carbon fouling that disrupts the spray cone. These degradation modes produce characteristic complaints: hard cold starting, white smoke at idle, and a measurable drop in fuel economy. Because the injector solenoid and control valve often remain within specification long after the nozzle reaches its wear limit, nozzle-only replacement restores injector performance at a fraction of the cost of a complete unit. For diesel parts wholesalers, stocking the DLLA154PN270 alongside injector installation kits and copper washer sets positions the business as a one-stop source for 4JA1L injector servicing, reducing order fragmentation and increasing average transaction value.

Q1: Can I install this nozzle in a Zexel-branded injector, or is it Bosch-only?
A: The DLLA154PN270 cross-references both Bosch kit 9 432 610 605 and Zexel 105017-2700. Confirm the injector body part number before ordering, as the same nozzle may be fitted to injectors produced under either brand during different production periods.

Q2: What symptoms indicate the nozzle is due for replacement rather than cleaning?
A: Ultrasonic cleaning addresses carbon deposits, but if the engine exhibits persistent white haze at idle, hard hot restart, or a return flow rate exceeding specification after cleaning, the needle seat or orifice geometry has worn beyond recovery. Replacing the nozzle is the correct repair path.

Q3: Do I need to replace all four nozzles on a 4JA1L at once?
A: Not necessarily, but flow matching matters. If one nozzle has failed, the remaining three have accumulated comparable wear. Installing a single fresh nozzle can create cylinder-to-cylinder injection quantity imbalance. For fleet customers prioritizing smoothness and emissions compliance, set replacement is the professional recommendation.

Q4: What documentation should accompany wholesale orders for this nozzle?
A: Reputable suppliers provide the Bosch injector kit cross-reference, material certification for the nozzle steel, and batch-level flow test data. Absence of traceable test records is a red flag for counterfeit or out-of-spec product.

Q5: How does fuel quality affect the service life of this nozzle?
A: Water contamination and fine particulate matter are the primary accelerants of nozzle wear. The DLLA154PN270's 0.190 mm orifices are vulnerable to abrasive particles that pass through inadequate filtration. Workshops should advise customers to maintain fuel filter replacement intervals and inspect for water-in-fuel warning indicators.
