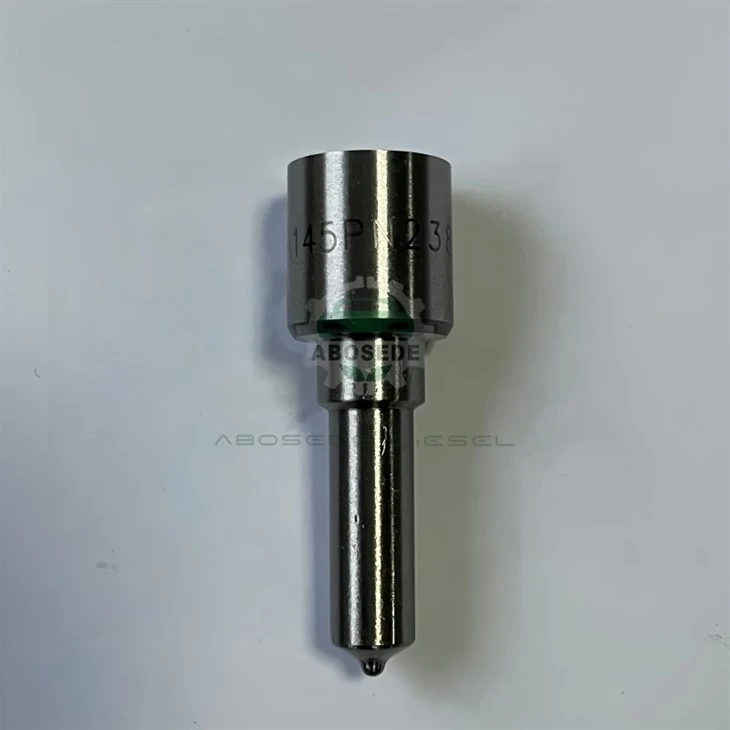

DLLA145PN238 Nozzle – Isuzu 4JB1T Diesel Injector Nozzle

A bay sitting idle because a 4JB1T injector failed bench test costs far more than the nozzle itself. This DLLA145PN238 sac-hole nozzle-Zexel reference 105017-2380, Bosch interchange 9 432 610 461-is the part that keeps NKR and NPR trucks moving instead of occupying a lift for a week. The calculus is simple: one nozzle on the shelf versus hours of lost vehicle revenue while a working truck waits on parts. Shops that stock this piece don't chase reman injectors across three time zones; they rebuild the original assembly and release the vehicle the same afternoon.

The opening pressure tolerance is where inventory decisions get made. Order a batch without verifying the Zexel catalog range and you'll find half the nozzles chatter late on the bench-not because they're defective, but because the supplier pulled from a different production lot. That variance eats labor hours you already quoted.

The 4JB1 family has been in continuous global production since the 1980s, and Chinese-built derivatives now circulate with identical external dimensions but subtly different internal geometry. This nozzle fits NKR, NPR, NHR, NQR, Forward 300 chassis, plus Trooper, Bighorn, Rodeo, and Jackaroo SUVs. That breadth is precisely the problem. A shop that stocks ten units "for Isuzu trucks" discovers half its customer base runs the turbocharged 4JB1TC with a different injector assembly number. The nozzle itself is common; the holder and pressure pin are not. Order against the assembly number 105118-7372 or 105118-7373, not against "4JB1" alone, or you'll accumulate dead stock while technicians cannibalize boxes looking for the right pairing.

The nozzle body distorts under torque. That's not a manufacturing defect; it's physics. Clamping nut torque beyond the OEM window shifts the sac volume geometry by microns, and a five-hole spray pattern that looked symmetric on the bench becomes a wet stream in the cylinder. The other silent killer: reusing the copper combustion seal. A work-hardened washer fails to crush to the correct tip protrusion, and carbon migrates onto the nozzle tip within a few thousand kilometers. By the time the customer returns with a cold-start miss, the injector body is heat-scored and the nozzle is the least of your problems. Bench-test for opening pressure within ±5 bar, confirm chatter on rapid actuation, and reject any nozzle that drips at 90% of set pressure. The needle seat is compromised, and no amount of cleaning will recover it.

A complete 4JB1T injector assembly carries a substantial replacement cost and often ships from a warehouse that doesn't know the difference between a 4JB1 and a 4JB1TC. The nozzle replacement route preserves the matched pressure pin and holder-components that rarely fail unless the injector has ingested debris. The measurable outcome isn't "durability" in marketing language. It's this: precision-ground sac-hole geometry resists deformation from the fine particulates that bypass marginal fuel filtration, keeping return flow within spec for the service interval your customer actually expects. The risk is misdiagnosis. A nozzle swap cannot rescue an injector with a scored needle guide or a pressure pin that has lost its surface finish. Bench-test return flow before and after. If the numbers don't move, the problem was never the nozzle.

Q1: We buy nozzles in 50-unit lots. What's the realistic failure rate from a single production batch?
A: Expect 3–5% to sit outside the opening pressure window. That's not a defect rate-it's lot variance. Order 10% overage and bench-test every unit before it reaches a customer vehicle.

Q2: How many 4JB1T injectors can a technician rebuild in a shift using these nozzles?
A: Four to six complete assemblies, including disassembly, ultrasonic cleaning, nozzle swap, and bench calibration. The bottleneck is cleaning, not the nozzle itself.

Q3: Our fleet customers run Chinese-built 4JB1 derivatives. Will this Zexel-spec nozzle drop in?
A: Physically yes; hydraulically maybe not. Some cloned engines use a different sac volume. Confirm the injector holder number before committing to a bulk order.

Q4: What's the most common reason a freshly rebuilt injector returns within 30 days?
A: Reused copper washers. The second most common: clamping nut torqued by feel instead of spec. Neither is a nozzle failure.

Q5: Can we extend service intervals on these nozzles with better filtration?
A: A 2-micron secondary filter downstream of the primary will reduce abrasive wear on the needle seat measurably. But the nozzle won't outlast a worn pressure pin. Filter the fuel; inspect the whole assembly.
