MAN B&W L23-30H Plunger & Barrel Set | OEM Spec High-Pressure Fuel Metering For Marine Diesel Engines | Heavy-Duty Injection Components

In the demanding sector of marine propulsion and auxiliary power, the distinction between a successful voyage and a costly drift often lies in the integrity of the fuel injection system. For vessels powered by the MAN B&W L23-30H four-stroke diesel engine, the fuel plunger is not merely a consumable part-it is the heartbeat of the power assembly. This product detail page focuses on the high-precision plunger and barrel assemblies designed specifically for the L23-30H platform. We move beyond basic specifications to explore how these components manage extreme combustion pressures, ensuring that the transition from chemical energy (fuel) to mechanical energy (torque) remains efficient, stable, and environmentally compliant. For shipowners and technical superintendents, investing in premium-grade plungers is an investment in operational continuity and fuel economy.



🎯 Selection Logic: Precision Matching for Heavy Fuel Operations



Selecting the correct plunger for a MAN B&W L23-30H engine requires a rigorous approach to compatibility. Unlike smaller high-speed engines, medium-speed marine diesels like the L23-30H often operate on a variety of fuels, ranging from Marine Diesel Oil (MDO) to Heavy Fuel Oil (HFO).

Our selection logic prioritizes three critical factors:

Fuel Type Compatibility: Verify whether your engine configuration is set up for HFO or MDO. While the mechanical dimensions may appear identical, the material hardness and surface coating of the plunger differ to handle the viscosity and lubricity requirements of the specific fuel.

Engine Serial Number (S/N) Range: MAN engines undergo periodic updates. Always cross-reference the plunger design number with the engine's project guide or serial number plate to ensure the "helix" geometry matches the specific injection timing requirements of your build.

Barrel Clearance Group: Plungers and barrels are matched sets graded by microscopic clearance tolerances. Installing a mismatched group can lead to seizure during thermal expansion or excessive blow-by, resulting in low rail pressure and power loss.





The L23-30H engine is renowned for its compact design and high power density. The fuel injection system supporting this architecture must deliver precise fuel volumes at high pressures to ensure complete combustion, particularly when running on lower-grade fuels.



Parameter	Specification

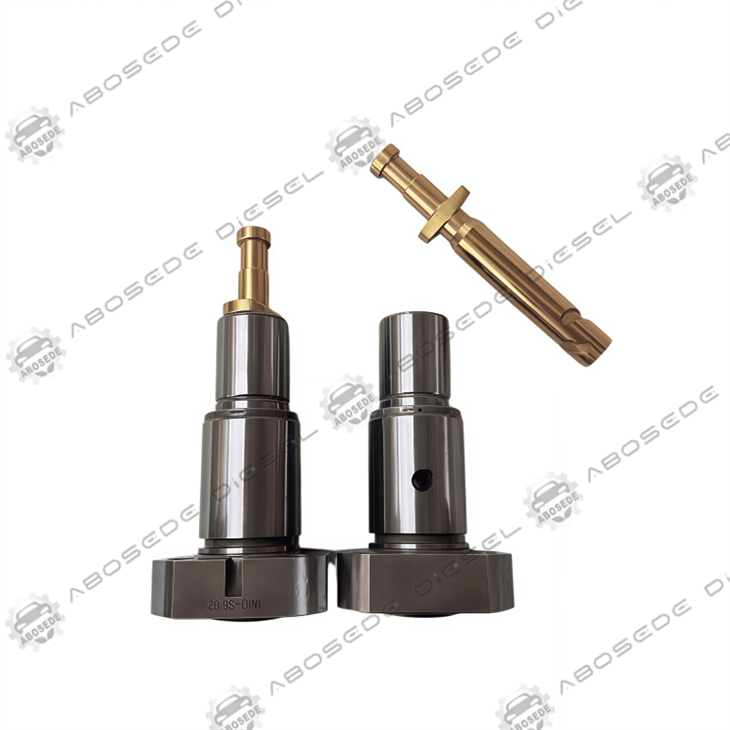

Component	Fuel Injection Plunger & Barrel Assembly
Engine Fitment	MAN B&W L23-30H (Diesel / HFO Configurations)
Material	High-Grade Carburized Steel / Hardened Alloy
Surface Treatment	Chrome-Ceramic or DLC (Diamond-Like Carbon) Coating
Tolerance Class	Micron-Level Fit (ISO Grade 1-2)
Function	Positive Displacement Metering & Pressurization
System Pressure	Designed for High-Pressure Injection Cycles





The plunger assembly for the L23-30H is a masterpiece of hydraulic engineering, designed to withstand the rigors of continuous maritime operation.

Helix Geometry & Timing: The defining feature of this plunger is the machined helix (spiral groove). As the camshaft drives the plunger upward, the rotation of the plunger-controlled by the rack-aligns this helix with the spill port. This action precisely determines the end of injection. In the L23-30H, this geometry is optimized to prevent "dribble" and ensure a sharp cutoff, which is vital for reducing unburnt hydrocarbons and soot.

Pressure Generation: As the plunger closes the inlet ports, it traps fuel in the pressure chamber. The continued upward motion compresses this fuel to immense pressures (often exceeding 1,000 bar depending on the cam profile), forcing it through the injector nozzle. The structural integrity of the plunger head must resist deformation under these cyclic loads.

Lubrication & Sealing: The clearance between the plunger and barrel is so tight (typically 2–5 microns) that it relies on the fuel itself for lubrication. The surface finish is mirror-smooth to minimize friction while preventing high-pressure leakage. For HFO applications, the plunger design often includes features to accommodate the lower lubricity of residual fuels.





The MAN B&W L23-30H is a versatile workhorse found across the maritime industry. Consequently, high-quality replacement plungers are essential for:

Feeder Vessels & Container Ships: Where schedule reliability is paramount.

Offshore Supply Vessels: Operating in dynamic positioning modes with frequent load changes.

Auxiliary Generator Sets: Providing shipboard electrical power where frequency stability depends on consistent engine speed.

Maintenance of the L23-30H fuel system requires a proactive stance on filtration. Even microscopic abrasive particles can score the plunger surface, leading to rapid wear and loss of injection pressure. We recommend adhering strictly to MAN's maintenance intervals for fuel valve testing and pump overhaul. When replacing plungers, always inspect the corresponding roller guides and cam profiles; worn cams can accelerate the wear of new plungers. Additionally, for engines running on HFO, maintaining the correct fuel temperature (viscosity) is crucial to prevent thermal shock to the precision lapped surfaces.



Q: Can I use standard diesel plungers for HFO applications?
A: It is strongly discouraged. HFO has lower lubricity and higher abrasiveness than MDO. Plungers designed for HFO often feature specialized surface treatments (like chrome plating) and specific clearances to handle the operating temperature and viscosity. Using standard plungers will result in rapid wear and potential seizure.

Q: What causes "scuffing" on an L23-30H plunger?
A: Scuffing is typically caused by a breakdown in the lubricating film between the plunger and barrel. Common culprits include water contamination in the fuel, excessively low fuel viscosity (too hot), or abrasive particles bypassing the filters. It can also occur during cold starts if the engine is loaded too quickly before oil temperatures stabilize.

Q: Do I need to replace the entire injection pump or just the plunger set?
A: In most cases, you only need to replace the plunger and barrel assembly (the "pair"). The pump housing and internal bushings can usually be reused if they are within wear limits. However, always check the roller guide and pushrod for wear during the overhaul, as these affect the plunger's stroke dynamics.

Q: How does the "helix" position affect engine performance?
A: The helix position dictates the effective stroke of the plunger. If the helix is worn or damaged, the timing of the fuel cutoff will be erratic. This leads to inconsistent power generation between cylinders, causing engine vibration, uneven exhaust temperatures, and increased fuel consumption.

Q: What is the significance of the "matching code" on the flange?
A: Manufacturers produce plungers and barrels in groups based on their exact dimensional fit. These groups are marked with codes (letters or numbers) on the flange. You must install a plunger and barrel from the same group to ensure the correct operating clearance. Mixing groups can lead to catastrophic failure.

Q: Is this compatible with the EcoCam upgrade?
A: The L23-30H often features MAN's "EcoCam" technology for improved fuel efficiency. Ensure that the replacement plunger matches the cam profile of your specific engine version. While many are interchangeable, verifying the cam shape (standard vs. EcoCam) ensures you maintain the intended injection rate shaping.
