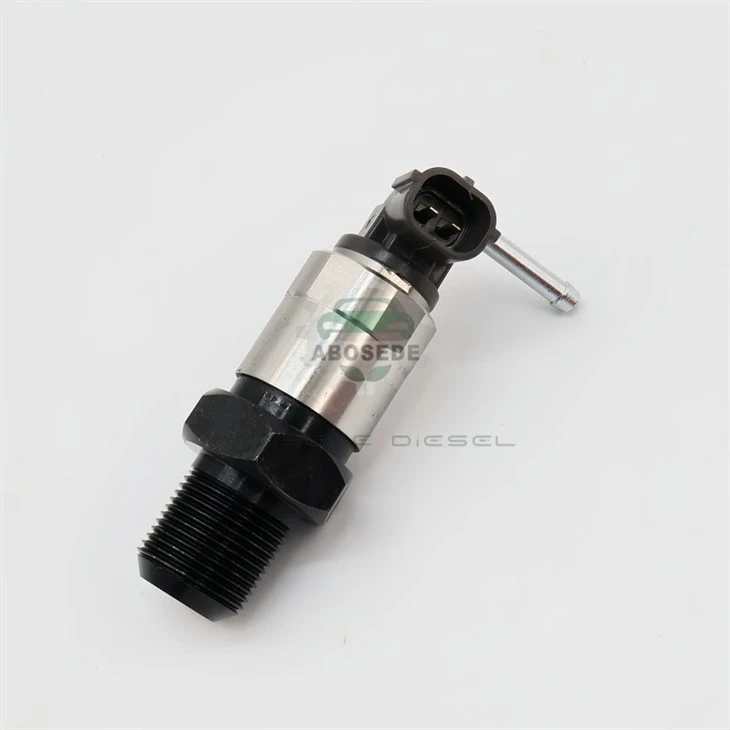

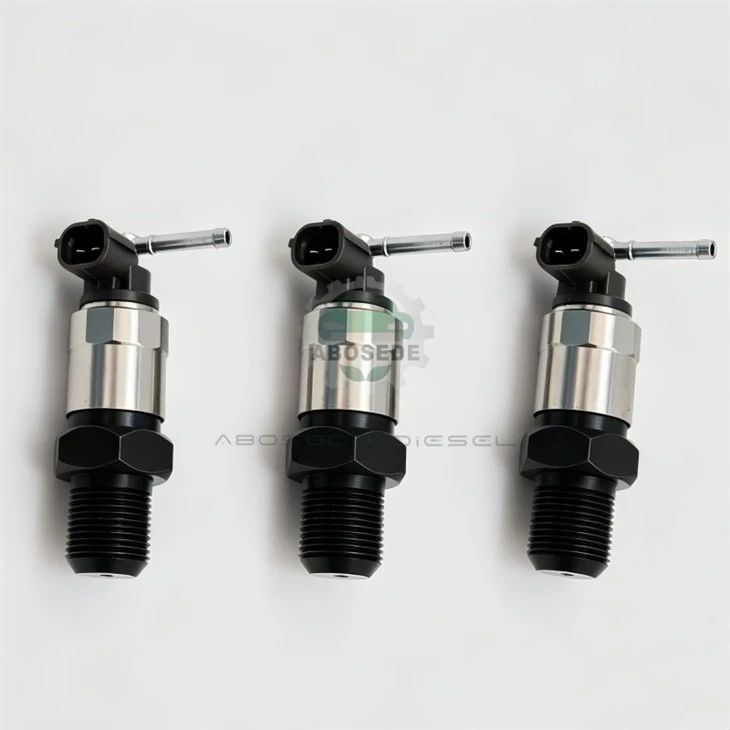

04281810 Fuel Rail Sensor – Heavy-Duty Pressure Transducer For Deutz 2011/TCD2011 Power Units

The 04281810 common rail pressure sensor delivers direct-fit substitution for failing pressure feedback units across Deutz 2011, FL2011, FM2011, and TCD2011 engine ranges. This component translates instantaneous fuel rail force into a calibrated electrical signal, enabling the governing module to regulate injection duration and start-of-delivery angles. For workshops operating in West African mining zones or Southeast Asian plantation sectors, where equipment runs extended hours under dusty, high-ambient-temperature conditions, sensor reliability directly impacts machine availability and job-site productivity.

Three contact pins define the interface between this transducer and the engine harness. Pin one carries chassis return, pin two transmits the variable analogue output to the ECU, and pin three accepts the regulated 5-volt excitation from the controller. Output voltage spans from 0.5 volts at minimum rail charge to 4.5 volts when system pressure reaches its upper bound of 180 MPa. Internal thick-film resistor elements compensate for thermal drift across a -40°C to 120°C envelope, preserving measurement fidelity when engine bays soak with radiated heat from turbocharger housings. The sensing diaphragm responds to pressure fluctuations within 2 milliseconds, a response characteristic that permits the ECU to correct fueling during sudden load applications encountered in excavator bucket digging or grader blade operations.

Mating the 04281810 pressure sender requires cleaning the rail boss thoroughly to avoid contaminant ingress that might obstruct the sensing port. Thread engagement must reach full depth without cross-starting, followed by torque application of 40 Newton-metres using a crowfoot attachment to clear adjacent fuel lines.

This part number replaces earlier designations frequently encountered in rebuild shops, including 0414491109, 04287047, and 04287086, thereby consolidating multiple warehouse lines into one stockkeeping unit. Typical machinery populations that benefit from this sensor include wheel loaders from Chinese OEMs fitted with Deutz power, road compactors used in highway construction, drilling rigs operating in hard-rock terrain, and agricultural harvesters working through extended seasonal campaigns. Engine platforms span both naturally aspirated and turbocharged variants where the fuel system operates with common-rail accumulation rather than unit injector layouts.

Depressurise the rail system by loosening the return line fitting while wearing protective gloves and face shielding. Extract the defective unit using a crowsfoot socket, inspect the rail threads for galling, and chase with an M12 tap if corrosion products are visible. Fit the new 04281810 rail pressure sensor with a fresh sealing washer, tighten incrementally to 40 Nm, and reconnect the harness plug. Switch ignition to the run position without starting; observe the diagnostic tool's pressure reading-it should display near zero with the engine stationary. Crank the motor and allow idle stabilisation; compare live pressure data against the ECU's demanded value. A discrepancy exceeding 5 MPa at steady idle points toward trapped air in the high-pressure circuit or an injector leakage path rather than transducer malfunction. Road-test the equipment under load to confirm that pressure follows throttle commands smoothly without oscillations.

In high-pressure fuel architectures, the 04281810 pressure monitoring unit furnishes the sole continuous feedback that the governor uses to modulate the suction control valve or metering plunger. When this feedback degrades due to diaphragm fatigue or connector corrosion, the governor applies excessive corrections that manifest as surging idle, grey exhaust haze, and elevated fuel consumption figures. Reinstating accurate pressure sensing allows the injection timing calculator to operate with correct inputs, thereby reducing particulate output and lowering specific fuel burn per kilowatt-hour generated. For fleet operators who track litre-per-hour metrics, restoring sensor integrity frequently yields measurable savings within the first 100 operating hours, offsetting the replacement cost multiple times over the component's service life.

Q1: Does this sensor require any programming or VIN coding before it will function?
A: No software calibration is required. The ECU reads the raw analogue signal and applies its internal mapping; however, performing an adaptation reset through service equipment optimises transient response after fitment.

Q2: Can we use this transducer on a Deutz engine that originally used a different pressure scaling?
A: Only if the original rail operates within the 0–180 MPa range and uses the identical M12 thread. Voltage scaling differs across engine families, so always verify the original part number against the cross-reference list above.

Q3: What is the most common post-installation issue encountered in hot-climate operation?
A: Electrical connector corrosion due to salt-laden coastal air or repeated pressure-washing. Applying dielectric grease to the terminal face prevents moisture ingress and preserves signal integrity.

Q4: How does this sensor compare to aftermarket offerings at half the price?
A: Lower-cost units often omit the temperature compensation network, leading to reading drift as under-hood temperatures rise. Our unit maintains linearity across the full thermal envelope, reducing diagnostic confusion.

Q5: What stocking quantity should a regional distributor maintain for emergency response?
A: For a territory covering 200–300 active Deutz machines, holding 10–15 pieces allows coverage of weekend breakdowns without restocking pressure, balancing carrying cost against service-level targets.
