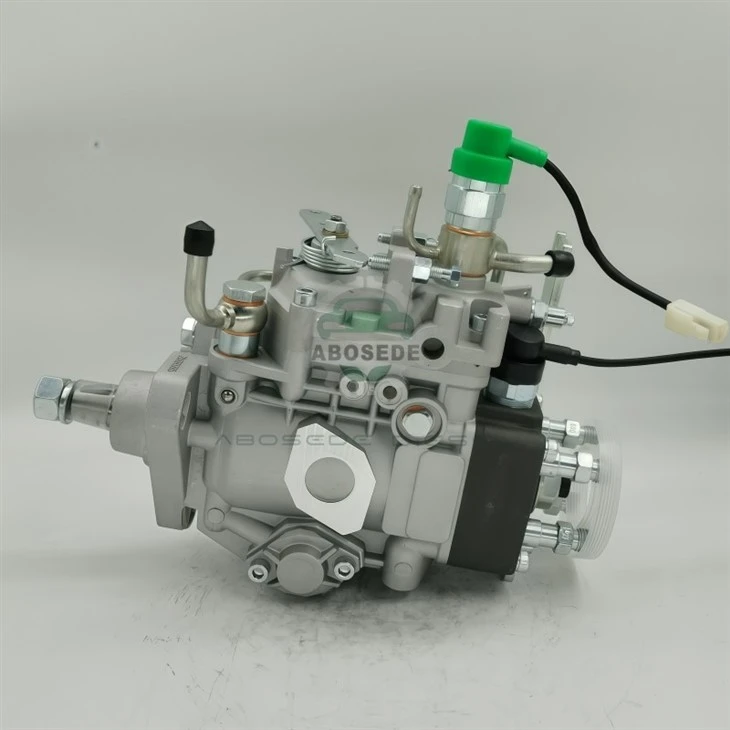

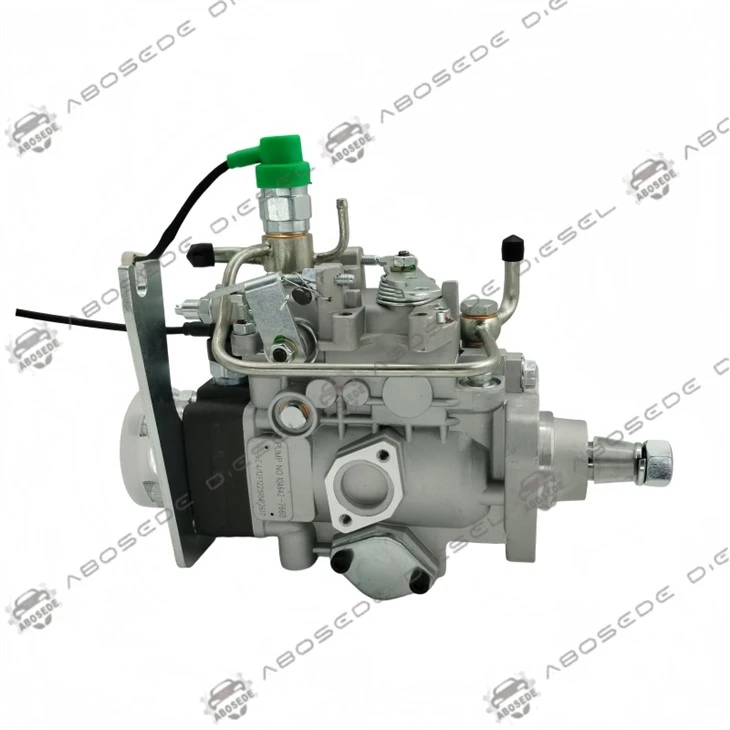

ZEXEL 104642-7660 Fuel Injection Pump Assembly For YANMAR 4TNE98 Engines

This ZEXEL 104642-7660 is a complete diesel fuel injection pump assembly engineered specifically for the YANMAR 4TNE98 4-cylinder diesel engine platform. As a direct replacement unit, this pump delivers precise fuel metering and reliable high-pressure delivery essential for maintaining rated power output and cold-start performance in compact construction equipment, agricultural machinery, and industrial power units. Designed to original ZEXEL specifications, this assembly restores factory injection timing and optimizes combustion efficiency across the entire operating range .

This ZEXEL inline injection pump features a mechanical governor configuration with a plunger and barrel assembly matched to the YANMAR 4TNE98's fuel delivery requirements. The unit includes integral delivery valves and a feed pump for complete fuel system integration. Factory rack settings are preset and should not be adjusted in the field. The pump operates with the engine's standard injection timing and supports the naturally aspirated direct-injection combustion design of the 4TNE98 series . All internal components are manufactured to ZEXEL's original tolerances, ensuring correct plunger stroke and fuel delivery volume at rated engine speeds. The assembly uses the standard test oil specification for calibration verification on diesel injection pump test benches .

This fuel pump is a direct OEM-grade replacement for the YANMAR 4TNE98 engine series, including all sub-models such as 4TNE98-ACG, 4TNE98-AD, 4TNE98-AG, 4TNE98-AMM, 4TNE98-DB, 4TNE98-FB, 4TNE98-G1A, 4TNE98-HYS, 4TNE98-KM, 4TNE98-NSR, 4TNE98-SA, 4TNE98-TB, 4TNE98-TBW, 4TNE98-TBL, 4TNE98-WI, and the 4TNE98-BQDFC variant . Equipment applications include Komatsu PC70FR-1 excavators, PC75R-2 excavators, WA75-3 loaders, Takeuchi TL130 skid steers, Mustang MTL16 loaders, Doosan SOLAR 75-V excavators, and various forklifts and generator sets powered by this engine family. The pump's compatibility extends to Komatsu 4D98E series derivatives used in construction machinery . Confirming your engine serial number against the 4TNE98 family ensures correct fitment.

Installation of the ZEXEL 104642-7660 requires strict attention to phasing marks and rack alignment to achieve proper fuel delivery and governor response. The control sleeve features a notch that must align with the matching plunger timing mark during assembly, and the gear segment slot must engage with the housing dowel pin to establish correct rack-to-plunger orientation . Before installation, verify that the governor control lever is in the "FUEL ON" position and that the rack travel moves freely through its full range. When installing the delivery valve holders, ensure they seat completely without exposed threads to prevent internal leakage . Fuel bleeding after installation is mandatory; use the decompression lever when cranking to protect the starter motor while purging air from the system. Internal components such as the plunger and barrel are matched sets and must never be mixed between pumps .

While modern engines increasingly adopt common rail system technology for their ECU-controlled, high-pressure fuel delivery, the YANMAR 4TNE98 relies on the proven durability of a mechanical inline injection pump . This design eliminates the electronic sensitivity and coding requirements associated with common rail injectors, making field repairs more straightforward for workshops without specialized diagnostic tools. However, the pump's internal plunger and delivery valve wear remains a primary concern, as it directly affects injection timing and fuel atomization. Replacing the complete pump assembly with a factory-spec unit like the 104642-7660 avoids the risks of mismatched components and ensures the engine returns to its rated performance without the extended diagnostic cycles often required for CRS repairs .

Q1: Is this pump a direct bolt-on replacement for my YANMAR 4TNE98?
A: Yes, provided your engine matches the 4TNE98 family. Double-check your engine plate and existing pump number against our listed sub-models and equipment fitments.

Q2: Are the governor and delivery valves pre-set from the factory?
A: Yes. The complete assembly is factory-calibrated. Do not adjust the rack or disassemble internal components-installation requires only correct timing alignment.

Q3: How long can I expect this pump to last in normal service?
A: With clean fuel and regular filter maintenance, expect 5,000–8,000+ operating hours. Typical wear symptoms include hard starting and power loss under load.

Q4: New pump vs. rebuilding the old one-which is better?
A: Full replacement eliminates hidden bore wear and mismatched plunger/barrel risks. Considering downtime and labor, a new assembly is usually the more reliable and cost-efficient choice.

Q5: What if the engine won't fire immediately after installation?
A: Thoroughly bleed the entire fuel system first. Then re-check the injection timing marks and verify that the rack linkage is engaging correctly with the governor.
