0491-3771/20C17-1392 Turbocharger | B2G Deutz TCD 7.8 Volvo EC350

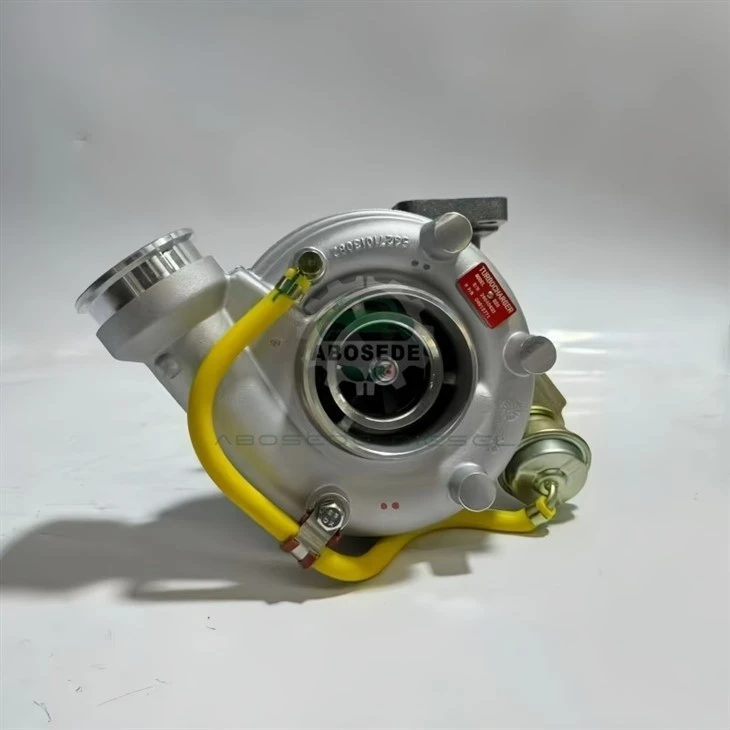

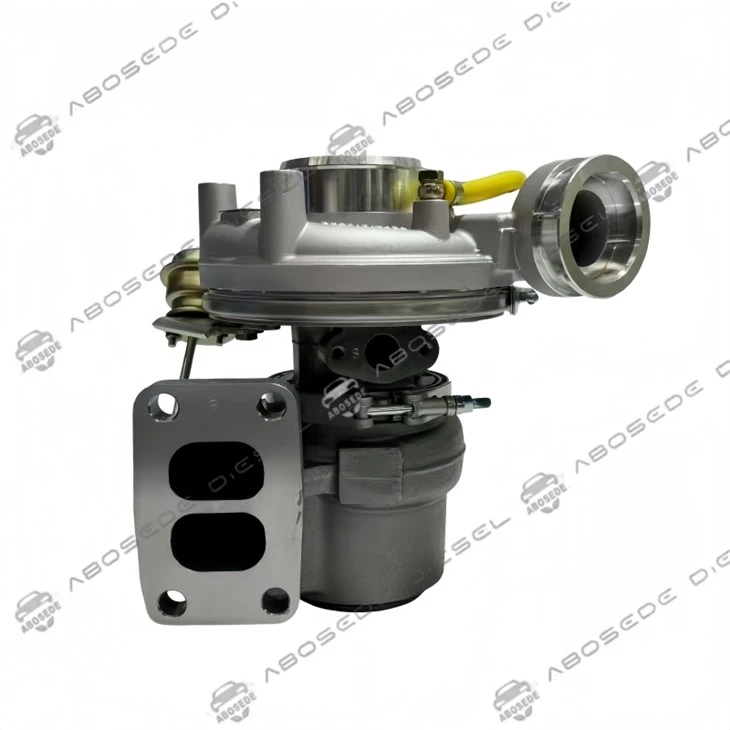

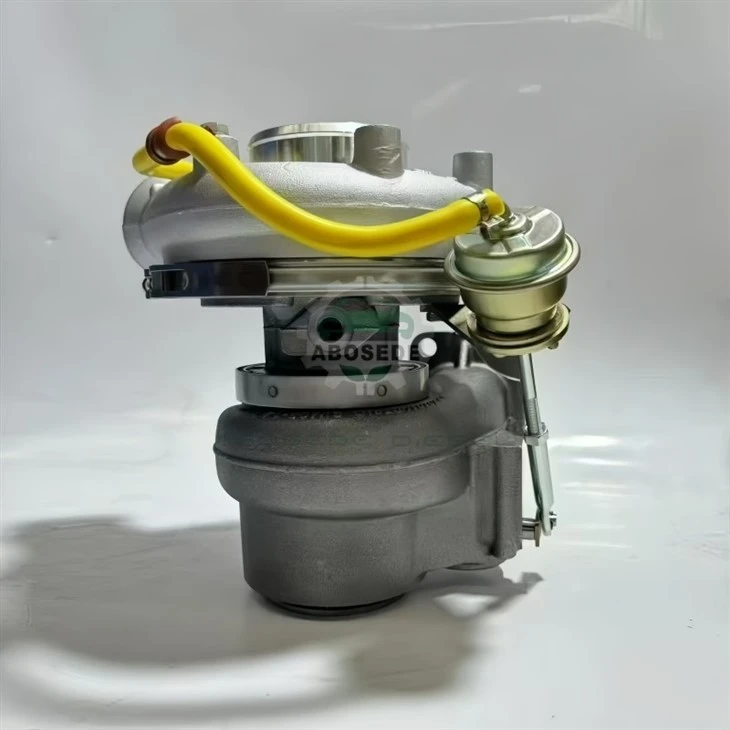

This B2G turbocharger (OEM reference 0491-3771 / 04913771) is engineered as a direct replacement for the Deutz TCD 7.8 industrial diesel engine, delivering consistent boost pressure under sustained high-load conditions. Interchangeable with part numbers 12709880124 and 0491-3771KZ, this unit serves the Volvo EC350 and EC350D excavator platforms, along with Caterpillar D8K and D8F applications where the Deutz TCD 7.8 powerplant is specified. For workshops handling Tier 4f emissions-era equipment, this turbo provides a reliable restoration path when the original unit has suffered bearing failure, wheel damage, or oil control ring degradation.

The assembly carries a B2G frame designation with a turbine housing configured for the TCD 7.8 displacement class, operating within the boost range required to meet the engine's torque curve for excavator duty cycles. Key dimensional and material parameters: turbine housing in cast iron, compressor housing in aluminum alloy, journal bearing lubrication architecture with integrated oil feed inlet, and wastegate-style boost regulation calibrated to Deutz specifications. The turbine wheel and compressor wheel are dynamically balanced as a rotating assembly to ISO 1940 G2.5 tolerances, minimizing vibration and shaft stress at sustained operating speeds. Wastegate actuator preload is set at the factory to match TCD 7.8 boost targets, eliminating the need for field adjustment in most installations.

This turbocharger finds its primary service demand in the Volvo EC350D excavator, a platform widely deployed in earthmoving, quarry, and heavy civil construction fleets across North America and Europe. The Deutz TCD 7.8 four-cylinder engine in these machines operates under near-continuous high-load cycles, making the turbocharger one of the highest-wear components in the accessory drive envelope. Beyond Volvo, the same B2G unit serves Caterpillar D8K and D8F track-type tractors where the TCD 7.8 has been fitted in repower or OEM configurations. Parts distributors stocking for mixed fleets will find this turbo sitting at the intersection of Deutz-powered Volvo and Caterpillar equipment-a crossover position that creates steady replacement demand from independent repair shops and dealer service departments alike.

Before the new turbocharger goes on, verify that the oil feed line is clear and free of coking-a restricted feed is the single most common cause of repeat failure within the first hundred hours. Fill the oil inlet port with clean engine oil and rotate the compressor wheel by hand until oil reaches the bearing housing; a dry start will score the journal surfaces before oil pressure builds. Inspect the charge air cooler and all boots and clamps for cracks or loose connections, because a boost leak downstream of the compressor forces the turbo to overspeed and accelerates thrust bearing wear. Check crankcase pressure at the dipstick tube-excessive pressure prevents oil return from the turbo and pushes oil past the piston ring seals, creating the blue smoke symptom that often gets misdiagnosed as a failed turbo. After installation, idle the engine for 120 seconds before applying load, then verify all air, oil, and exhaust connections for leaks.

Q1: Can this B2G unit be used on Deutz TCD 7.8 engines in non-Volvo applications?
A: Yes, provided the engine code and boost target match the TCD 7.8 Tier 4f specification. The wastegate is preset, but ECU calibration differences across OEM installations may require verification against the machine's original boost pressure sensor readings.

Q2: What is the most common root cause of failure on the original 0491-3771 turbo?
A: Oil starvation from a restricted feed line or degraded oil quality, followed by foreign object damage to the compressor wheel from a compromised air filter. Always replace the oil feed line and air filter alongside the turbo to protect the replacement.

Q3: How do I confirm the turbo is the problem and not a DPF restriction?
A: High exhaust back-pressure from a loaded DPF can mimic turbo failure symptoms-low power, high exhaust temperature, and oil consumption. Measure back-pressure at the turbine outlet before condemning the turbo.

Q4: What warranty coverage applies to this turbocharger?
A: Standard coverage is 12 months against manufacturing defects. Warranty is void if the oil feed line is not replaced, if incorrect oil viscosity is used, or if the unit is installed without priming the bearing housing.

Q5: Do you offer bulk pricing for fleet accounts or distributor stock orders?
A: Yes. Volume tiers start at 5 units for repair shops and 20 units for wholesale distributors. Contact our parts desk for a quote with lead time and shipping terms to your region.
