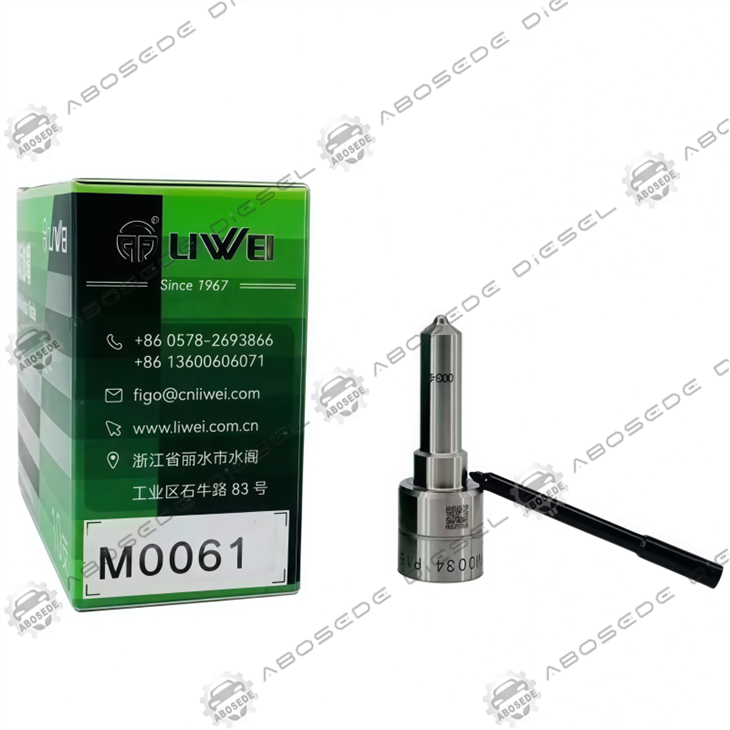

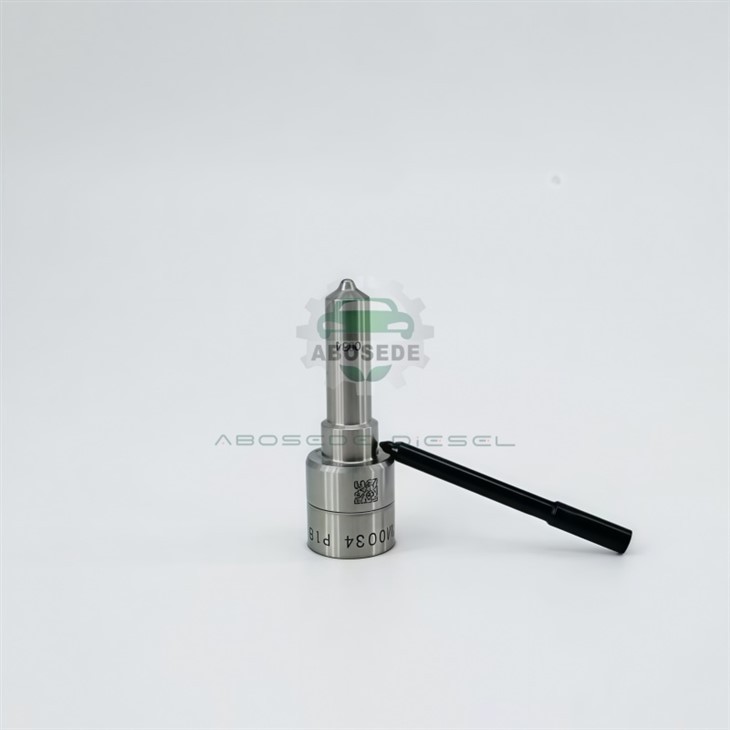

Liwei M0061 Diesel Injector Nozzle – The Universal Service Standard for Bosch & Denso Common Rail Injectors
1. Product:M0061
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
In the diesel aftermarket, one of the most persistent challenges for workshops and fleet operators is the proliferation of nozzle variants – each injector family typically requires a specific orifice geometry, spray angle, and flow rate, making inventory management complex and costly. The Liwei M0061 addresses this challenge through a universal fitment design – a nozzle geometry that accommodates a broad range of Bosch CRI and Denso common rail injectors, reducing the need for multiple part numbers. This nozzle features a 7-hole configuration with 0.190 mm diameter orifices and a 150° spray angle – a geometry that matches the most widely used injector platforms in the 2.0L to 3.0L diesel engine segment. The defining metric of the M0061 is its flow tolerance, held to ±3% of nominal – a range that accommodates the ECU's adaptation capability while providing consistent performance across different injector bodies.
█ Application Coverage – Compatible Injector Platforms
The M0061 is designed to replace nozzles in the following common rail injector families:
Bosch CRI 1.0 / 2.0 / 2.2 – Injectors with 7-hole × 0.190 mm nozzle geometry, including 0445110059, 0445110060, 0445110270, 0445110290, 0445110601, and similar part numbers
Denso G2 / G3 – Injectors with 7-hole × 0.190 mm configuration, including 4CR01974 and variants
Vehicle Applications – Compatible with Volvo D5, Ford Duratorq 2.0/2.4, BMW M57/N57, Mercedes OM642, VW/Audi 2.0 TDI, Toyota D-4D, and similar platforms
The nozzle is a direct replacement for Bosch part numbers 0445110059, 0445110060, 0445110270, 0445110290, 0445110601, and Denso 4CR01974 nozzles. It is supplied as a bare nozzle – the needle and nozzle must be lapped together during assembly.
▐ Technical Specifications – Dimensional and Flow Data
| Parameter | Specification |
|---|---|
| Nozzle Type | Inward-opening, differential pressure |
| Number of Holes | 7 |
| Orifice Diameter | 0.190 mm |
| Spray Angle | 150° |
| Needle Diameter (guide) | 4.2 mm |
| Needle-to-Nozzle Clearance | 4 – 6 µm |
| Material | High-speed steel (M42-grade) |
| Surface Coating | DLC (diamond-like carbon) on guide, 1.5 µm |
| Surface Hardness | 60 – 64 HRC |
| Surface Finish (guide) | Superfinished (Ra ≤ 0.08 µm) |
| Max. Rail Pressure Compatibility | 1,800 bar (26,100 psi) |
| Hydraulic Opening Pressure | 220 ± 10 bar |
| Static Flow @ 100 bar | 870 cc/min |
| Flow Tolerance | ±3% |
| Seat Angle | 60° (conical) |
| Seat Diameter | 3.8 mm |
| Needle Lift | 0.22 mm |
| Matching Requirement | Lapped to specific injector body |
◆ Construction Details – The Universal Fitment Design
→ 7-Hole × 0.190 mm Geometry: The industry-standard configuration for 2.0L to 3.0L diesel engines, providing balanced flow and atomisation.
→ M42 High-Speed Steel: Manufactured from cobalt-containing steel, providing hot hardness up to 650°C.
→ DLC Coating: The needle guide receives a 1.5 µm diamond-like carbon coating, reducing friction and extending service life.
→ Superfinished Guide Surface: The guide is superfinished to Ra ≤ 0.08 µm.
