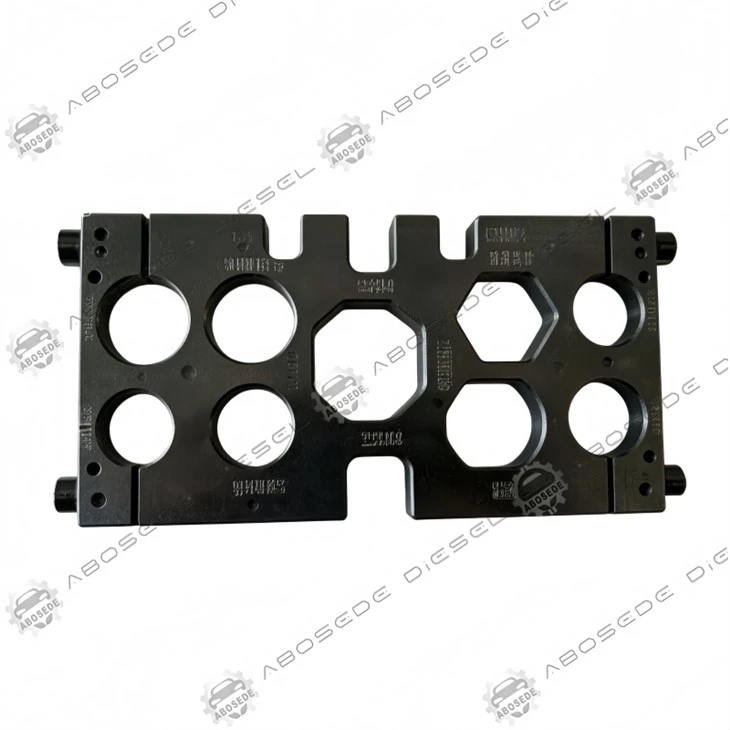

Universal Pump Nozzle & Common Rail Injector Removal Plate — One Base, Infinite Extractions

Independent diesel repair facilities and fleet service centers routinely handle injectors from Bosch, Delphi, Denso, Siemens, Caterpillar HEUI, and mechanical pump‑nozzle units-each with unique bolt patterns, flange geometries, and extraction force requirements. Maintaining separate holding fixtures for each type is costly, space‑consuming, and often leads to misplacement. The Universal Pump Nozzle & Common Rail Injector Removal Plate consolidates all extraction interfaces into a single, modular base plate that adapts to any injector or pump nozzle configuration via interchangeable locating pins and sliding jaws. This design eliminates the need for brand‑specific fixtures, reducing setup time from an average of 12 minutes to under 90 seconds, while ensuring correct load distribution across all mounting points.

The plate features four sliding T‑jaw carriages that move independently along dovetailed guide slots, allowing the technician to position clamping points at any location within the 200×200 mm working area. Each jaw incorporates a quick‑lock cam that secures the jaw position without tools, and a swivelling pressure pad (with a serrated, non‑marring face) that conforms to irregular injector body surfaces. The jaws are manufactured from hardened 4140 steel (48 HRC) with a zinc‑nickel coating, resisting corrosion from diesel and cleaning solvents.

The jaw‑to‑plate interface includes a load‑distribution plate-a secondary steel layer beneath the jaws that spreads the clamping force across the entire plate surface, preventing localised deformation of the base plate even when clamping at 5,000 N.

Mechanical pump‑nozzle units (used in older Cummins, Detroit Diesel, and marine applications) are typically withdrawn using a central threaded puller that engages the nozzle's central bore. The universal plate includes a central pulling tower-a 60‑mm‑diameter, 120‑mm‑high steel column with a threaded central hole (M20×2.5) that accepts the puller bolt. The tower is designed to clear the plate's working area while providing a rigid reaction point for the extraction force. The tower is removable, allowing the plate to be used flat for injector disassembly or upright for pump nozzle pulling.

For pump nozzles with off‑centre extraction points, the plate's sliding jaws can be repositioned to act as a custom puller bridge, supporting the hydraulic ram or mechanical screw extractor at the exact point required. This adaptivity is particularly valuable for workshops servicing marine and stationary engines where pump nozzles have non‑standard dimensions.

The base plate is machined from single‑piece 6061‑T6 aluminium (with a hard anodised coating) on a 5‑axis CNC centre, ensuring absolute flatness (0.02 mm across the entire surface) and accurate hole positioning. The ultimate tensile load capacity of the plate is 12,000 N (uniformly distributed), exceeding the extraction force requirements of any diesel injector or pump nozzle on the market. The sliding jaws are rated to 6,000 N each, and the central pulling tower to 8,000 N-all well above maximum service loads.

The plate includes four built‑in lifting eyes (M8 threaded holes) for mounting on a workbench or for use with an overhead crane when handling heavy pump‑nozzle assemblies. Anti‑vibration rubber pads are included to protect the workbench surface and reduce noise during extraction operations.

The plate's modular design allows it to serve as a single‑point fixturing system for the entire repair cycle:

Extraction - Secure the injector/pump nozzle in the plate, attach the puller, and extract

Disassembly - Remove the nozzle nut, valve group, or plunger barrel while the component remains clamped

Inspection - Use the plate's flat surface as a reference for height gauges and dial indicators

Reassembly - Rebuild the injector using the same clamping positions, ensuring alignment

This continuous‑fixturing approach eliminates the errors introduced by transferring the component between different vises and fixtures during the rebuild process.

Q1: Can this plate be mounted directly onto a hydraulic press for heavy‑duty extractions?
Yes. The plate includes four M10 mounting holes (100×100 mm centres) that match standard hydraulic press tables. For presses with non‑standard patterns, we offer adapter brackets-please specify your press make and model when ordering.

Q2: What is the maximum injector height that can be accommodated in the plate?
The sliding jaws can clamp injectors with a body diameter up to 60 mm and a height up to 180 mm (with the standard puller tower). For taller pump‑nozzle assemblies (up to 300 mm), the central pulling tower can be extended with the included spacer tubes.

Q3: Can I use this plate for injectors that have a non‑square, irregular bolt pattern?
Yes. The sliding jaws do not rely on bolt patterns; they grip the injector body directly. The locating pins are optional for alignment; for irregular housings, you can use the jaws alone to clamp securely.

Q4: Is the plate compatible with the removal of injectors from V‑engines (where the injectors are angled)?
The plate is designed for bench‑top use with the injector removed from the engine. For on‑engine extraction, we recommend our dedicated on‑engine puller set. This plate is for post‑removal fixturing and rebuild.

Q5: How do I prevent the jaws from marking the injector body?
The jaws' swivelling pads are serrated to improve grip, but the pressure can be adjusted via the cam tension. For delicate aluminium or ceramic‑coated bodies, we include protective copper shims that fit over the pad faces-these prevent marking without reducing grip.

Q6: What is the weight of the complete set, and is it suitable for mobile service?
The complete set weighs 9.5 kg (including the case), making it suitable for van‑based mobile service. The case includes a shoulder strap for easy transport, and the plate can be used on any flat, sturdy surface-no bolting down is required for most operations.
