LCRO2 LCR Tester – Diesel Common Rail Solenoid & Piezo Injector Diagnostic Bridge

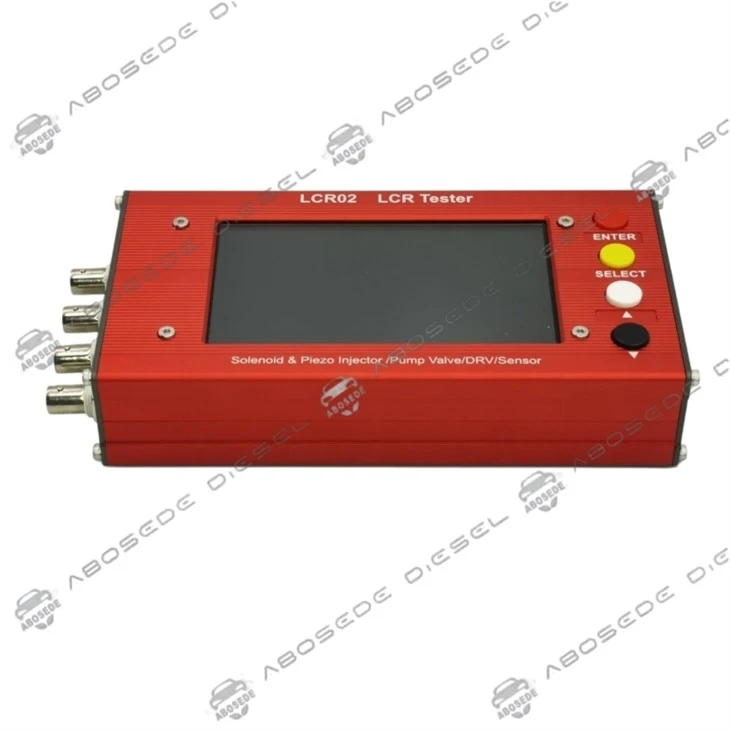

The LCRO2 LCR Tester is a dedicated handheld diagnostic instrument engineered for precise electrical characterization of common rail diesel injectors and related fuel system components. Unlike conventional multimeters that rely on DC measurement, this digital LCR bridge operates on an AC principle at 1 kHz frequency, delivering accurate readings of resistance, inductance, and capacitance across solenoid and piezo injector platforms. For diesel repair shops handling Bosch, Denso, Delphi, and Siemens systems, the LCRO2 provides the electrical verification layer that standalone bench testing cannot replicate-enabling component-level fault isolation before reinstallation.

The LCRO2 measures resistance and inductance for electromagnetic injectors, EUI/EUP units, ZME valves, and DRV (digital rate valve) solenoids, while simultaneously supporting capacitance and resistance verification for piezo injectors and piezo EUI/EUP assemblies. This dual-platform capability means a single instrument covers the two dominant injector actuation technologies in modern diesel common rail systems. The automatic Quality Factor (Q) calculation provides an efficiency metric for inductive components, helping technicians detect winding degradation that produces acceptable DC resistance yet fails under dynamic operating conditions. Adjustable error tolerance windows allow each parameter to be judged against user-defined or factory-derived baselines, with the unit displaying a clear PASS/FAIL determination-a workflow designed for high-volume injector testing where consistency matters as much as accuracy.

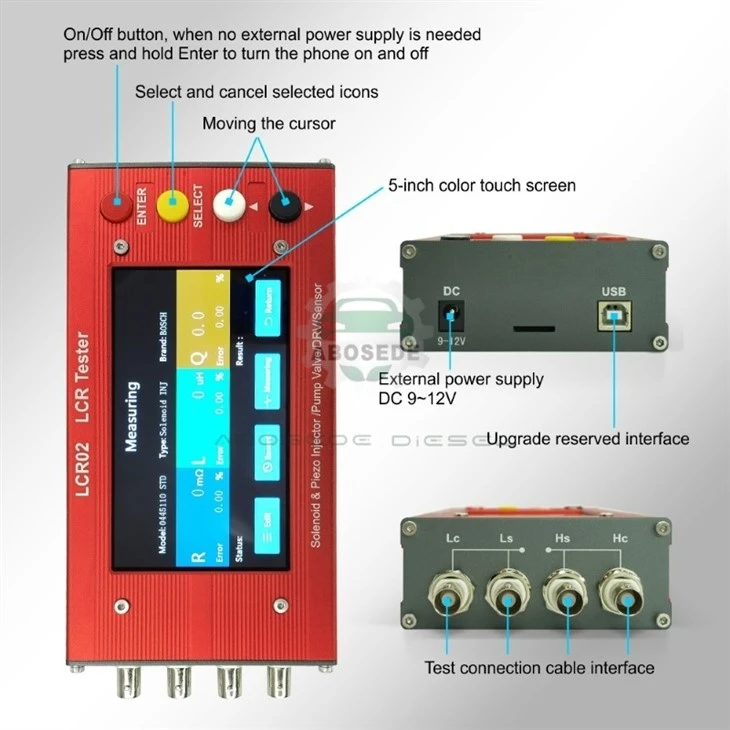

Field technicians benefit from the measurement record function, which captures sequential test values for a batch of injectors-typically six units in a set-allowing side-by-side comparison without manual logging. This is particularly valuable when evaluating a core return set for remanufacturing viability or verifying incoming stock from a supplier. The model search interface permits lookup of stored injector profiles by part number, with the option to run all saved models when a specific code is unknown. Wiring uses two independent channel pairs: Lc/Ls for inductance and resistance measurement (non-polarized), and Hs/Hc for capacitance measurement on piezo components-critical because piezo stacks hold residual charge and must be connected to the appropriate channel to avoid damage. The compact form factor and internal battery support bay-side verification without trailing power leads.

The economic case for the LCRO2 rests on its ability to catch electrical marginality before an injector reaches the test bench or, worse, returns to a customer as a comeback. A solenoid injector that opens and delivers fuel under bench conditions may still exhibit elevated inductance drift or an incipient coil short that only manifests under thermal load in the vehicle. The LCRO2 identifies these trends by comparing measured values against stored OEM reference data-for example, a Bosch 0445110291 solenoid typically reads approximately 560 mΩ resistance and 273 µH inductance, and deviations beyond a few percentage points signal a component approaching the end of its serviceable life. For piezo injectors, capacitance measurement serves as a proxy for crystal stack integrity; a capacitance reading outside the specified window often precedes the rough-running and misfire symptoms that bring the vehicle into the shop. By screening at the electrical level, rebuilders reduce the volume of units that consume bench time only to fail hydraulic or spray pattern testing.
