FOTON CUMMINS Barring Tools (CR) – Precision Engine Rotation For High-Pressure Common Rail Servicing

The FOTON CUMMINS Barring Tools (CR) range represents a specialized suite of manual rotation implements engineered explicitly for High-Pressure Common Rail (HPCR) diesel platforms produced under the FOTON-Cummins joint venture. These service tools are precision-machined to interface with flywheel ring gears and crankshaft dampers, providing workshops with a controlled, safe methodology for barring engines over during critical service intervals. In an era where electronic starting motors cannot be used due to the extreme risks associated with high-pressure fuel injection, these tools transform complex repair procedures into manageable, technician-safe operations, ensuring accurate positioning of pistons and valve trains without compromising the integrity of the common rail fuel system .

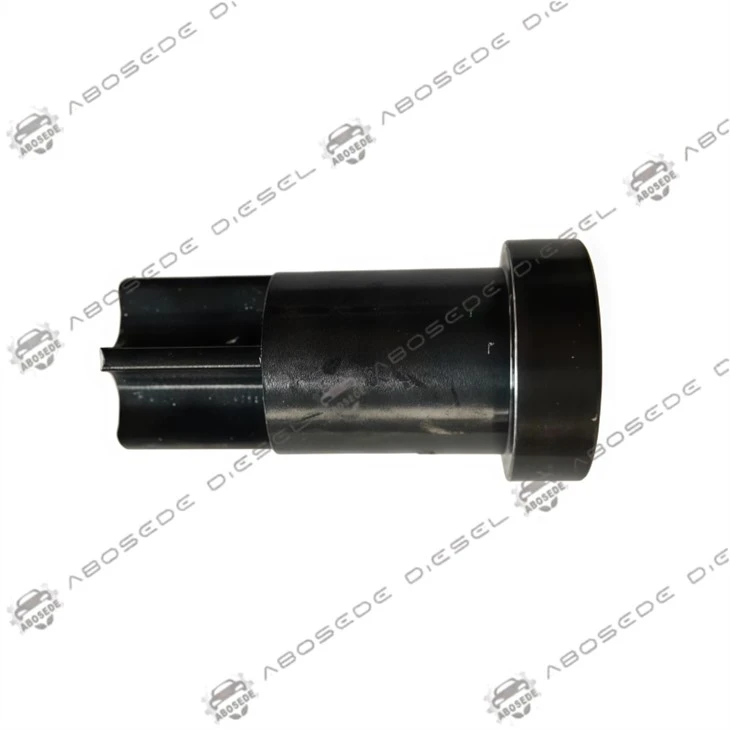

The mechanical design varies by drive configuration. Flywheel housing engagement variants, typically with a 1/2-inch square drive, insert into the housing to mesh with the starter ring gear, incorporating a load-bearing collar to eliminate friction. Specific models, interchangeable with OTC 7471A, fit B-series and C-series architectures and the prevalent 5.9L displacement. Crankshaft-mounted options bolt directly to the vibration damper, accepting a 1/2-inch drive ratchet for direct crank rotation. Materials feature hardened steel with electroless nickel plating for corrosion resistance.

These tools are indispensable across a broad spectrum of diesel service operations, from routine valve lash adjustments to top dead center (TDC) location for injector timing. The core applications involve FOTON commercial vehicles equipped with the Cummins powerplant, as well as Dodge Ram pickups integrating the 5.9L and 6.7L Cummins variants . Service manuals consistently mandate manual barring for precise mechanical positioning, such as rotating the engine to bottom dead center for connecting rod bearing removal . In the context of common rail systems, where fuel pressures exceed 2,000 bar, the tools are critical for service procedures that require engine rotation after loosening the pump-to-rail fuel line to vent residual pressure, mitigating the risk of high-pressure fuel injection injuries .

Feature / Specification	Details / Variants
Primary Drive	1/2-inch square drive (Ratchet/Breaker Bar)
Front Barring (Crank Nose)	3/4-inch drive direct crank access
Engine Families (Core)	Cummins B-series, C-series, 5.9L, 6.7L
Application (OEM)	Foton, Dodge Ram, Commercial Trucks
Alternate P/N / Cross Ref.	7471A, J-46392, 4919092, 3824591
Material / Construction	Hardened Steel, Electroless Nickel Plating (varies)

Effective implementation hinges on the correct engagement protocol. For rear barring, technicians remove the inspection cover or plastic plug from the flywheel housing, inserting the tool until it engages the ring gear. The installation requires secure fastening, often utilizing longer bolts than the original cover bolts, to hold the tool rigidly during rotation . A critical safety protocol specific to HPCR engines involves barring the engine by hand only; using the starter motor for positioning on a common rail engine is forbidden due to the potential for pressurized fuel spray . Upon completing the service or reaching the desired position, the tool must be entirely removed from the timing case before engine start-up to prevent catastrophic damage to the flywheel ring gear . For front barring, rotation is typically clockwise as viewed from the front, while rear barring via the flywheel often involves turning counterclockwise .

The shift toward integrated gear casings and the elimination of external rotational seals in modern FOTON and Cummins engines has rendered traditional pulley-based barring obsolete . The FOTON CUMMINS Barring Tool addresses this paradigm by providing a safe, accessible barring point-often via an aperture in the front gear housing or the flywheel bell housing-thus preserving the engine's design integrity and minimizing leakage points. The ability to safely rotate the engine facilitates critical work on fuel injectors and high-pressure pumps without triggering diagnostic trouble codes or risking damage to sensitive electronic components. For the professional diesel workshop, this translates to improved workflow efficiency and adherence to original equipment manufacturer (OEM) safety standards for common rail diesel maintenance .

Q1: Flywheel tool vs. crank-mounted – which one do I need?
A: Flywheel type (7471A, J-46392) engages the ring gear for valve adjustments and TDC checks. Crank-mounted bolts to the front damper, used when the bell housing is obstructed or for repeated rotations.

Q2: One tool for both ISB and ISC engines?
A: Yes, the 7471A-style covers B and C series CR platforms. Verify against your engine serial; the front 3/4-inch crank drive fits most models universally.

Q3: Critical safety step before barring a HPCR engine?
A: Never use the starter. Always crack the pump-to-rail fuel line at the rail to vent residual pressure, preventing high-pressure fuel spray injuries per OEM mandates.

Q4: When to replace the barring tool?
A: Inspect teeth every 6 months under heavy use. Replace if seating feels loose or teeth show wear – a slipping tool damages the ring gear and compromises accuracy.

Q5: Why ban starter motor for CR engine positioning?
A: Lacks fine control for timing adjustments. Manual barring ensures precise incremental movement, preventing injection misalignment and protecting electronics.

Q6: Compatible with EPA-compliant emissions engines?
A: Physically yes. Manual barring is even more critical for EGR recalibration or compression testing without triggering electronic faults.
