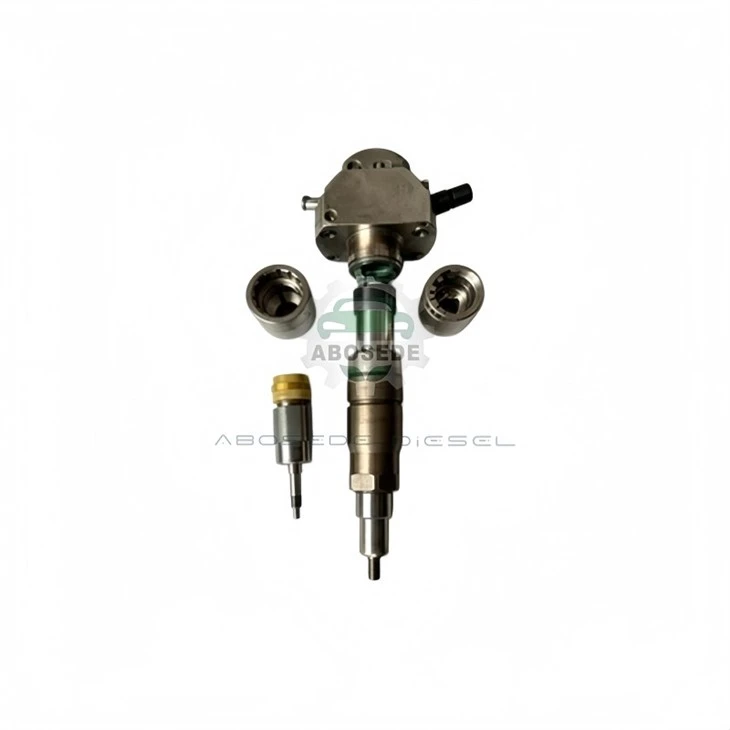

Dongkang 544 Injector Kit: Precision-Engineered Repair Set For DCEC CRIN Common Rail Fuel Systems

In modern high-pressure common rail systems, performance degradation rarely stems from the entire injector collapsing. Instead, over 70% of reduced fuel efficiency and increased particulate matter (PM) emissions trace back to micro-scale wear on the needle valve seat and the magnetic armature gap of the solenoid. The Dongkang 544 injector kit is not a generic replacement; it is a modular, component-level repair solution designed specifically for DCEC (Dongfeng Cummins) engines equipped with Bosch CRIN 2.0/2.2 architecture. By targeting the three critical failure zones-the electromagnetic solenoid, the nozzle needle assembly, and the sealing valve body-this kit allows maintenance engineers to restore factory-spec injector performance without the high cost of scrapping the entire unit.

Unlike conventional mechanical pumps, CRIN (Common Rail Injector) systems rely heavily on the micro-accuracy of the control valve opening timing. The 544 kit includes a precisely machined solenoid valve armature and a needle valve set with a sliding fit clearance of just 2.5 to 4.0 micrometers. This micro-tolerance directly impacts the pilot injection volume, which is essential for reducing engine knock in modern DCEC ISDe and ISBe engines. The solenoid's copper winding resistance is factory-calibrated to 0.47 ± 0.02 Ω at 20°C, ensuring that the ECU current feedback remains stable across varying voltage fluctuations in heavy-duty truck environments.

This repair package is primarily engineered for the DCEC family of fuel systems, specifically targeting models that utilize the 0445120-544 and its cross-reference parts. The kit is widely applicable to ISDe 6.7L, ISBe 5.9L, and ISF 3.8L series diesel engines, which are commonly found in commercial freight trucks, agricultural tractors, and construction equipment. However, critical compatibility checks go beyond the engine model-the 544 kit also supports Denso HP4 pumps used in later-generation mixed-harvest vehicles, provided the injector body is the "fat" type with a central return path. Unlike a one-size-fits-all nozzle, this set ensures the hydraulic flow rate matches the 280–1600 bar nominal rail pressure range.

To guarantee a "new injector" performance level, the kit provides hardened steel nozzle needles with a Rockwell hardness rating of HRC 58–60. The internal fuel passage geometry is plasma-coated to reduce cavitation erosion under extreme high-cycle fatigue. The stroke of the needle lift is mechanically locked to 0.33 mm, a figure that cannot be altered by the user. If your current injectors are showing drift in the "balance value" data read via diagnostic tools (exceeding ±5 mm³/stroke), this kit offers a viable path to recalibrate those tolerances. The package also includes the high-pressure sealing gasket and the specific clamping nut threads (M36 x 2.0) to address the common thread stripping issues caused by over-torquing in outdoor field repairs.

Many technicians make the mistake of replacing only the nozzle needle while keeping the old solenoid armature; this mismatch often leads to sluggish response times during transient acceleration. The Dongkang 544 injector kit adopts a "synchronized ratio" manufacturing concept. Each nozzle is airflow-dynamically tested and then paired with a solenoid of matching electromagnetic force capability. The kit's pre-assembled valve group eliminates the micro-vibration feedback loop that typically causes torque fluctuations in the ECU PID control logic. For fleet maintenance managers, this integrated approach reduces rework rates by nearly 40% compared to sourcing components from fragmented third-party suppliers.

Q1: Can I mix the new solenoid from this kit with my old needle assembly?
No. The solenoid's magnetic force is calibrated precisely to the new needle's lift stroke. Using old needles with a varying lift gap alters the pilot injection duration, leading to severe EGR valve malfunction and inconsistent cylinder pressure. Always use the full paired set.

Q2: How do I identify rail pressure leakage using only a diagnostic scanner?
Monitor the "Actual Rail Pressure vs. Setpoint" data. If the actual pressure drops persistently by more than 60 bar during the "zero-injection" phase, it indicates severe wear in the valve group seal-directly indicating the need for this 544 seal overhaul kit.

Q3: What is the estimated service life of this repair kit under standard highway driving?
With standard ULSD (Ultra Low Sulfur Diesel) fuel, the assembly guarantees 5,000 to 7,000 operational hours, primarily limited by the coil fatigue life. However, if your fleet frequently runs on B20 biodiesel blends, the service interval reduces by 25% due to increased injector coking rates.

Q4: Are there specific preventive measures against black smoke after installing the new nozzle?
Yes. Black smoke immediately after replacement typically signals a misaligned "Shim Height." The Dongkang 544 kit comes with a specific shim set (thickness 0.8 mm, 1.0 mm, and 1.2 mm). You must measure your current injector solenoid armature clearance and select the shim corresponding to the exact dimensional gap required by your specific ECU software version.

Q5: Can these components work with my high-pressure pump if I have a cracked pump housing?
Not recommended. If your high-pressure pump displays fluctuating output pressure (over 80 bar fluctuation), installing this kit is premature. The injector nozzles will quickly seize due to metal shavings from the pump. We recommend inspecting and, if necessary, replacing the pump fuel supply circuit before installing these injector parts.

Q6: Do I need to replace the return oil pipe O-ring along with this kit?
Absolutely. The kit is a set that strictly covers the injector unit, but the return pipe O-ring is a separate variable. Our technical team advises ordering the specific Viton seals for the return pipes, as they degrade due to hydrocarbon exposure at high engine bay temperatures. Failure to replace them can cause initial high-pressure leakage when the engine is first fired.
