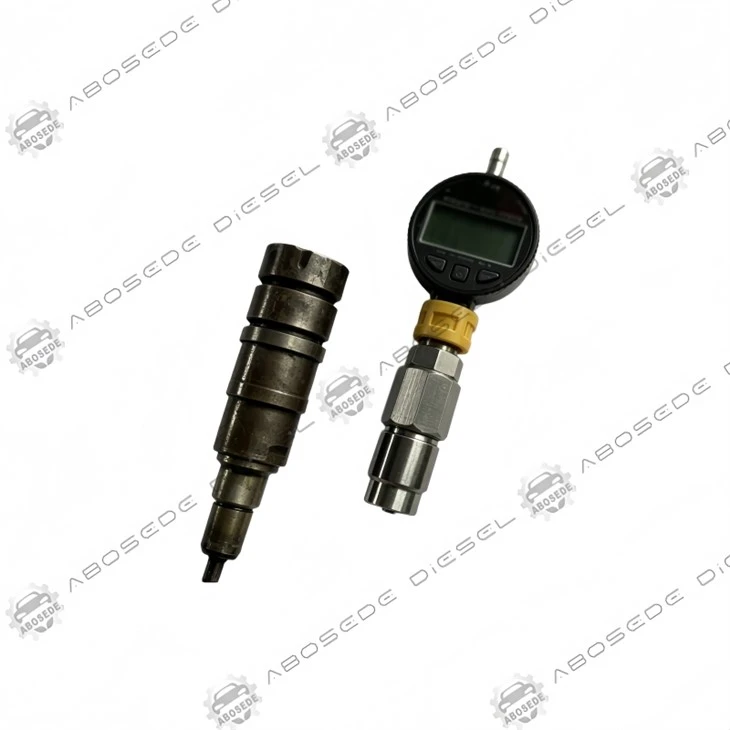

Dongfeng Cummins Needle Valve Lift Gauge Holder — Reference‑Plane Stabilized For Dynamic Stroke Mapping

In modern common rail injectors, the needle valve lift curve directly governs the injection rate shaping-a 5‑micron deviation in peak lift alters the fuel delivery by approximately 2.5% at full load, while the same error in the closing ramp affects hydraulic dwell and subsequent pilot injection stability. However, precision dial indicators and LVDT sensors are only as reliable as the fixturing that positions them. Conventional magnetic stands or universal clamps introduce three inherent errors: angular misalignment relative to the needle axis, thermal drift from the operator's hand, and vibrational displacement during engine running conditions. The Dongfeng Cummins Needle Valve Lift Gauge Holder addresses these by transforming the fixture from a passive support into a geometric reference frame that anchors both the sensor and the injector body to a common datum plane, eliminating the measurement chain's weakest link.

The holder's core mechanism is a hardened steel collet with a 6° internal taper, designed to grip the injector's upper guide bore (typically Ø 12.0 mm for Dongfeng Cummins ISB/ISL series). When tightened via a knurled locking ring, the collet expands uniformly, centering the gauge holder within ±0.003 mm of the needle axis-far superior to the ±0.05 mm achievable with manually positioned stands. A built‑in reference shoulder seats against the injector's nozzle nut face, establishing a vertical datum that is coplanar with the needle valve seat. This two‑point constraint (bore + face) ensures that the measuring probe travels exactly parallel to the needle's lifting direction, so the indicated stroke value is the true axial displacement, not a cosine‑error‑corrupted projection.

Dongfeng Cummins injectors operate with body temperatures ranging from 80°C to 130°C, while workshop measurements are typically performed at 20–25°C. Differential thermal expansion between the fixture and the injector can introduce a zero‑shift of up to 0.012 mm-a significant error when service limits for needle lift are specified within 0.04 mm. The gauge holder is manufactured from Invar 36 (a nickel‑iron alloy with a coefficient of thermal expansion of 1.2×10⁻⁶/K), closely matching the injector body's steel (≈12×10⁻⁶/K) and ensuring that the reference length between the shoulder and the probe tip remains stable across the typical measurement temperature window. This thermal pairing is validated by finite element analysis, showing a maximum expansion‑induced error of 0.002 mm over a 30°C temperature swing, eliminating the need for tedious temperature corrections.



The holder incorporates an integrated spring‑loaded slide that applies a consistent 1.5 N preload to the measuring probe (whether dial indicator or digital sensor). This preload is critical: too high a force depresses the needle against its internal stop, giving a false reduced lift; too low a force fails to overcome the needle's return spring hysteresis, resulting in non‑repeatable readings. The slide also houses a silicone‑oil damping chamber that attenuates high‑frequency vibrations from the workshop environment (e.g., nearby compressors or impact wrenches), stabilizing the indicator needle. The damping is adjustable via a small set screw, allowing the technician to tune it for either static lift checks or dynamic tracking with a data acquisition system.

In field audits, the same injector measured by three different technicians using generic stands showed a standard deviation of 0.018 mm-unacceptably high for precise shim selection or injector matching. With this dedicated holder, the inter‑operator variability drops to 0.004 mm, primarily because the collet locking torque is controlled by a preset torque‑limiting knurled nut that clicks at 8 N·m, ensuring consistent clamping force every time. Furthermore, the holder's base includes a vial spirit level that indicates when the injector axis is perfectly vertical; a 1° tilt would induce a 0.015% error (negligible), but the level serves as a quick confidence check for technicians working on uneven benches.

Q1: Can this gauge holder be used on other Cummins injector families, such as the XPI or HPI?
The collet and shoulder dimensions are specifically tailored for Dongfeng Cummins common rail injectors (ISB/ISL/ISZ). For XPI (used in ISX engines) or HPI (older mechanical), we offer different reducer bushings and shoulder adapters-please contact us with your injector part number for compatibility verification.

Q2: How do I know if the collet is gripping the injector bore too tightly?
The torque‑limiting knurled nut is set to 8 N·m; if you tighten beyond the click, the collet may deform the bore. Always stop at the click. If the injector has visible scoring on its upper guide, use the included protective sleeve to avoid further damage.

Q3: Does the holder's damping chamber require periodic refilling?
The silicone oil is sealed and typically lasts for 5,000 measurement cycles. If you notice excessive needle flutter, you can refill via the small port using the provided syringe and oil-instructions are included in the manual.

Q4: Can I use this holder with a digital inductive sensor instead of a dial indicator?
Yes. The slide mechanism accepts any probe with a Ø 8.0 mm shank (standard for most digital gauges). We offer an optional adapter sleeve for Ø 3/8" imperial shanks. The preload force remains consistent regardless of the probe type.

Q5: What is the maximum permissible wear on the calibration ring before it must be replaced?
The ring is hardened to 60 HRC and ground; after 1,000 calibrations, we recommend re‑verifying its thickness using a micrometer. If wear exceeds 0.002 mm, replace it-spare rings are available separately.

Q6: Why does the holder specify a vertical orientation? Can it be used horizontally?
The spring‑loaded slide and damping chamber are gravity‑compensated for vertical operation. Using it horizontally may introduce a small offset due to the slide weight; however, you can recalibrate the zero in the horizontal position-we do not recommend it for critical tolerance work.
