Dismounting Tools For Cummins N11-N14

Engineered specifically for the Celect and mechanical fuel systems of the Cummins N11 and N14 platforms, this dedicated dismounting tool set addresses the rigorous demands of high-pressure common rail and unit injector servicing. Designed to mitigate the risk of thread galling and connector damage, these implements facilitate the safe extraction of injectors and fuel lines without compromising the integrity of the cylinder head or fuel rail fittings, ensuring workshop efficiency and component reusability.

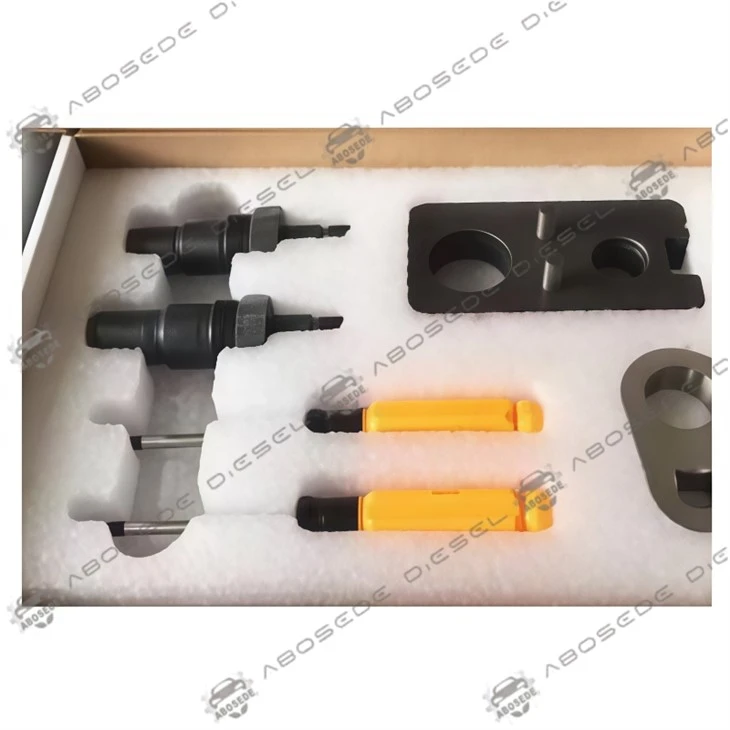

Each tool within this kit is manufactured to precise dimensional tolerances to match the Cummins N14 and N11 engine architectures. The set typically includes a pin-type pulling adapter and a robust slide hammer assembly, engineered to interface with the specific injector hold-down geometries found in these heavy-duty powerplants . For low-pressure fuel line disconnection, the kit incorporates tools with a .250-inch thickness and specific spreader dimensions, ensuring a correct fit that prevents the distortion of VOSS-type connectors common to these engine families . The OTC 5040 style adapters are constructed from hardened alloy steel to withstand the extraction force required to break the seal of injectors that have been subjected to high combustion pressures and thermal cycling, with the installation adapters featuring protective coatings to shield sensitive electronic solenoids from impact damage .

This dismounting tooling is indispensable for workshops servicing a wide range of on-highway trucks and off-highway equipment powered by the Cummins N14, L10, and N11 series. Specifically designed to support Celect electronically controlled engines and mechanical variants, the tools are also applicable to the broader ISX and Signature engine families where similar connection architectures are utilized . They are primarily deployed during overhead adjustments, cylinder head reconditioning, and fuel system overhauls, where the safe removal of supply lines and injectors is a prerequisite. Whether addressing a fleet of Class 8 vehicles or industrial stationary engines, these tools provide the specialized access required to navigate the confined spaces typical of modern engine bays, covering both engine-mounted lines and chassis-level connections .

Correct utilization of these dismounting tools is critical to maintaining the service life of the fuel system. The extraction process requires a controlled linear pull to remove the injector or connector tube without inducing lateral stress. For injector removal, utilizing the provided slide hammer with a firm, consistent stroke breaks the carbon seal at the injector nozzle without exerting leverage on the cylinder head casting . The inclusion of a specialized connector tube remover prevents the common workshop error of damaging the tube during extraction, a fault that often leads to costly fuel leaks or high-pressure system contamination . Before dismounting, proper procedures dictate relieving fuel pressure and rotating the crankshaft to relieve valve spring tension on push rods to ensure the installation of the new component proceeds without mechanical interference .

In the context of diesel common rail systems, precise tooling directly correlates with the longevity of the fuel injection equipment. High-pressure fuel systems are susceptible to microscopic contamination; using improper extraction methods can damage the precision-machined mating surfaces of the fuel rail and injector cups. By ensuring clean, undamaged disconnections, these tools prevent metallic debris from entering the fuel galleries. Furthermore, the ability to remove injectors without damage facilitates core return programs for remanufacturing, offering significant cost savings. Investing in application-specific dismounting tools reduces diagnostic time and minimizes the risk of premature injector failure caused by improper seating or damaged O-rings during reinstallation .

Q1: Are these dismounting tools compatible with both Celect mechanical and later electronic Cummins N14 engines?
A: Yes, the kit is engineered to accommodate the physical fitment requirements of both mechanical and Celect electronically controlled N14 and L10 engine variants. The pin-type pulling adapters interface with the injector configurations found across these model lines .

Q2: How do these tools prevent damage to the high-pressure fuel connector tubes during removal?
A: The set includes a specific connector tube remover designed to extract the tube prior to injector removal. This two-step process ensures the connector tube is not bent or scored, which is a common issue when using universal pullers .

Q3: What is the material thickness of the fuel line disconnect tools, and why is it important?
A: The fuel line disconnect tools measure .250 inches in thickness. This specific dimension is crucial for correctly engaging the retaining clips on the low-pressure lines to release the connector fully without causing distortion .

Q4: Is special training required to use this injector remover kit safely?
A: While the tools are designed for intuitive use, technicians should be familiar with standard Cummins service procedures. Proper rotation of the crankshaft to relieve spring pressure and careful use of the slide hammer are recommended to ensure safe operation .

Q5: Can this tooling be used for the removal of injectors on the Dodge 5.9L Cummins, or is it strictly for N14?
A: This specific kit (e.g., OTC 5040) is tailored for the larger N14 and L10 industrial and over-the-road engines. While sharing design philosophies, the 5.9L applications typically require specific tools like the OTC 6069 due to different head geometries .

Q6: How does using the correct dismounting tool affect core charges for injector remanufacturing?
A: Using the precise pin-type puller and installation adapters minimizes external damage and solenoid impact, ensuring the core meets the stringent acceptance criteria for remanufacturing, thereby protecting your core charge refund .
