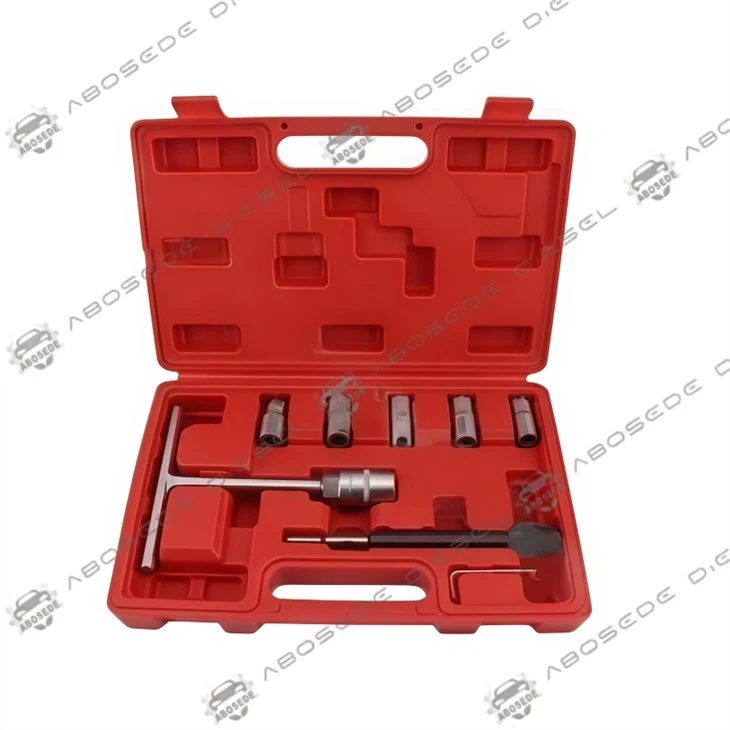

Diesel Injector Service Kit – 8-Piece Professional Set For Common Rail Systems

The 8-piece diesel fuel injector cleaning tool set represents a complete workshop solution engineered specifically for the dismantling, servicing, and cleaning of modern Common Rail Diesel (CRD) injectors. This professional-grade kit consolidates all the necessary implements for addressing the most common failure points within Bosch, Denso, and Siemens injector systems, allowing technicians to perform precise internal component extraction, valve seat lapping, and removal of carbon-locked internal fixings without risking damage to the injector body or critical mating surfaces.

Manufactured from heat-treated Chrome Vanadium and high-carbon S45C steel, this 8-piece diesel injector repair kit delivers structural rigidity and resistance to deformation under high-torque disassembly demands, with every component machined to exacting tolerances for a gapless fit on parts frequently seized by heat cycles and carbon buildup. The comprehensive set includes three ball valve lapping tools with a centering guide for accurate seat reconditioning, a 1/2" drive bit socket featuring a 21mm external hexagon combined with a 10mm internal hexagon and 6.6mm tamperproof bore, a second bit socket with a 7.6mm internal hexagon for alternate Bosch configurations, an 8-sided socket profiled for Bosch CR injector retaining nuts, a 17mm external hexagon socket with three drift pins for Denso common rail injector valve seats, and a 4-tooth centering socket for internal split nuts on Siemens CR injectors, all finished with anti-corrosion coating for daily workshop endurance.

This tool set's versatility anchors on broad coverage of the three dominant diesel fuel injection manufacturers-Bosch, Denso, and Siemens-servicing the European and Asian automotive aftermarket, with the tooling purpose-built to interface directly with disassembly procedures for the most prevalent Common Rail injectors in contemporary diesel powertrains. This adaptability proves critical for diesel repair specialists and general workshops handling diverse fleets, from Volkswagen, BMW, and Mercedes-Benz to Toyota, Nissan, and Hyundai models, effectively eliminating the need for multiple proprietary kits while reducing inventory costs and lead times. The application scope extends to most passenger cars and light commercial vehicles equipped with these injector brands, and the inclusion of tamperproof drivers ensures workshops can perform injector internal cleaning across virtually all common rail vehicles produced in the last two decades without waiting for costly "dealer-level" implements.

Effective use of this diesel fuel injector cleaning tool demands a methodical approach prioritizing torque management and component protection, beginning with secure mounting of the injector body in a soft-jawed vice, after which the appropriate bit socket or 8-sided socket is selected based on the injector manufacturer's fastener profile, with the 1/2" drive configuration ensuring maximum torque transfer without stripping critical engagement surfaces. Post-disassembly, the ball valve lapping tools refinish seating surfaces to rectify leak-off and pressure loss issues, with fine-grade lapping compound applied while the tool rotates under consistent pressure to create a uniform matte finish, while the centering device maintains concentricity and prevents excessive material removal or ovality that would compromise the hydraulic seal. This precision workflow ensures reassembly meets factory specifications, effectively eliminating microscopic blow-by within the injector capsule and restoring the precise fuel metering that common rail systems depend on for optimal combustion efficiency.

Market demand for this 8-piece diesel injector cleaning tool set stems from intrinsic failure modes in Common Rail fuel systems, where operating pressures exceeding 2,000 bar subject internal components to immense stress and thermal fatigue, leading to lacquer deposits and metal particles that disrupt hydraulic balance and manifest as poor atomization, power loss, rough idle, increased consumption, and elevated emissions. By enabling in-house injector servicing, this kit circumvents costly OEM replacements exceeding $400 per unit while reducing downtime from days to hours and capturing significant labor revenue that would otherwise go to third-party remanufacturers. The ability to dismantle, clean, and lap the injector ball valve restores flow characteristics and leak-off rates to near-original levels, while the tooling allows safe extraction of fixings rendered immovable by heat and carbon adhesion, effectively salvaging prematurely condemned injectors and delivering measurable savings to fleet operators and individual owners alike, enhancing workshop reputation for comprehensive diesel fuel system repair capabilities.

Q1: Does this 8-piece set include everything for a complete Bosch CR injector rebuild?

A: This set covers mechanical disassembly, cleaning, and lapping of internal components, but a full bench rebuild typically requires a separate hydraulic press or puller for solenoid or piezoelectric stack removal, which is not included.

Q2: Are the sockets compatible with Denso's tamperproof fasteners?

A: Yes, the set includes a 17mm external hexagon socket with three drift pins specifically for Denso internal valve seats, plus bit sockets with 10mm and 7.6mm internal hexagon dimensions featuring tamperproof bores for security fasteners.

Q3: How does this tooling reduce injector blow-by failures?

A: The ball valve lapping tools create a perfectly sealed valve seat that prevents high-pressure fuel and combustion gases from leaking past the internal valve, which is distinct from external seat re-facing addressed by a separate injector seat cutter set.

Q4: What is the lifespan of these tools under heavy daily use?

A: Hardened Chrome Vanadium steel ensures bits and sockets maintain dimensional accuracy through thousands of cycles, while the lapping tools are durable consumables with replacement availability based on injector volume processed.

Q5: Is this set suitable for American heavy-duty truck injectors?

A: This set is optimized for Bosch, Denso, and Siemens injectors in passenger cars and light commercials like Ford Transit and Mercedes Sprinter; heavy-duty trucks require a separate diesel injector puller set with larger M20+ adapters.

Q6: Does this kit include seat cutters and cleaning brushes?

A: This is a dedicated 8-piece diesel injector repair kit for internal dismantling and valve lapping only; cylinder head preparation requires our supplementary injector seat cleaning sets with reamers, brushes, and bore plugs.
