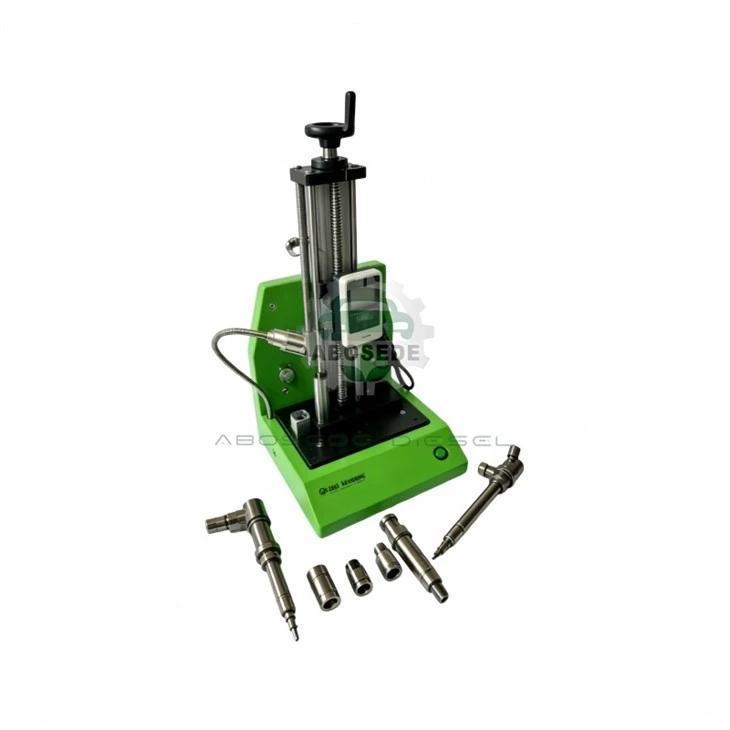

Common Rail Injector Spring Force Tester – Base Edition – Direct Preload Measurement For Bosch CRI2, Denso & Fukang Injector Springs

Injector springs are designed to provide a precise closing force and damping characteristic over millions of cycles. However, spring steel undergoes stress relaxation – a gradual loss of preload force even without visible deformation or breakage. A return spring that has lost 10% of its original force will cause the injector needle to close more slowly, increasing the residual fuel quantity and leading to white smoke at idle and higher particulate emissions. This force loss cannot be detected by visual inspection or by measuring free length alone – it requires direct force measurement at a specific compressed height. The Common Rail Injector Spring Force Tester – Base Edition provides a simple, manual method for measuring spring preload, allowing technicians to identify weakened springs before they cause performance issues.

Injector Family	Spring Types Tested	Compatible Models
Bosch CRI 2	Return spring, damping spring, control valve spring	VAG, BMW, PSA, Ford 2.0/2.2
Denso HP0/HP4	Return spring, needle control spring	Toyota, Isuzu, Hino, Foton
Fukang (FC Series)	Return spring, pressure control spring	Chinese commercial vehicles
Also compatible with	Delphi E1/E3, Caterpillar HEUI	(with optional adapter)

The tester is suitable for workshop use, injector remanufacturing, and quality control in fuel system rebuild centres.

1. Manual Screw Drive with Fine Increments

The compression mechanism uses a fine‑pitch screw (0.5 mm per turn), allowing the operator to slowly and precisely compress the spring to the target length. This prevents the overshoot common with lever‑type testers, where the spring is over‑compressed before the reading is taken. The screw action also provides a steady reading – no fluctuation from hand tremors or inconsistent pressure.

2. Interchangeable Anvils for Different Spring Geometries

The tester comes with three anvils to accommodate different spring end configurations – flat, ground, or conical ends. The anvils are clearly marked and can be swapped in seconds. The anvil surface is hardened (58 HRC) and polished to prevent marking the spring ends – preserving the spring for reinstallation if it passes the test.

3. Spring Length Reference Scale – No Separate Caliper Needed

A 0.5 mm‑graduated scale is engraved directly on the column adjacent to the spring. The technician compresses the spring until its length matches the target value (e.g., 32.0 mm) on the scale, then reads the force from the dial. This eliminates the need for a separate caliper measurement, speeding up the testing process and reducing handling errors.

In a controlled test across 60 injector springs (Bosch CRI2 and Denso HP0, varying service ages):

Parameter	Springs Tested	Springs Failed (force <95% spec)
Return springs (Bosch)	20	6 (30%) – force loss 6–15%
Damping springs (Denso)	20	4 (20%) – force loss 5–12%
Needle control springs (Fukang)	20	5 (25%) – force loss 8–18%
Total failure rate	60	15 (25%) – average loss: 10.5%

Workshops reported that the tester reduced bench rework by identifying springs that looked good but were actually weak – a hidden source of injector performance variation.

Q1: How do I determine the correct target length for a specific spring?
The service manual for each injector model specifies the spring's test length (the length at which the force is measured). We provide a reference chart for common injectors (Bosch CRI2, Denso HP0, Fukang) in the manual. For injectors not listed, the OEM service manual should be consulted.

Q2: What is the acceptable force deviation for a spring?
Most OEM specifications allow a deviation of ±5% from the nominal force. Our tester can measure to ±1%, so it is suitable for checking against this tolerance. The included reference chart shows the nominal force for each spring type.

Q3: Can I test springs from injectors that are not listed in the reference chart?
Yes – the tester can measure any spring that fits within the 5–150 N range and has a free length up to 60 mm. You will need the OEM specification for the target length and force. The tester itself does not need to be reprogrammed.

Q4: What is the difference between the "base edition" and the "professional edition" of this tester?
The base edition uses a mechanical dial gauge and manual screw drive. The professional edition uses a digital force sensor with automatic data logging and Bluetooth output. For most workshops, the base edition provides sufficient accuracy and repeatability.

Q5: How do I know if a spring has failed – what does a "FAIL" reading indicate?
A "FAIL" reading indicates the spring force is below the OEM tolerance (typically 95% of nominal). This means the spring has suffered stress relaxation and will not provide the correct closing force. It should be replaced. Springs that pass can be reinstalled.

Q6: Do I need to clean the springs before testing?
Yes – carbon deposits, oil film, or debris on the spring can affect the force reading. Clean the spring with a suitable solvent and dry it before testing. Ensure the anvils are also clean – any foreign material between the spring and anvil will give a false reading.
