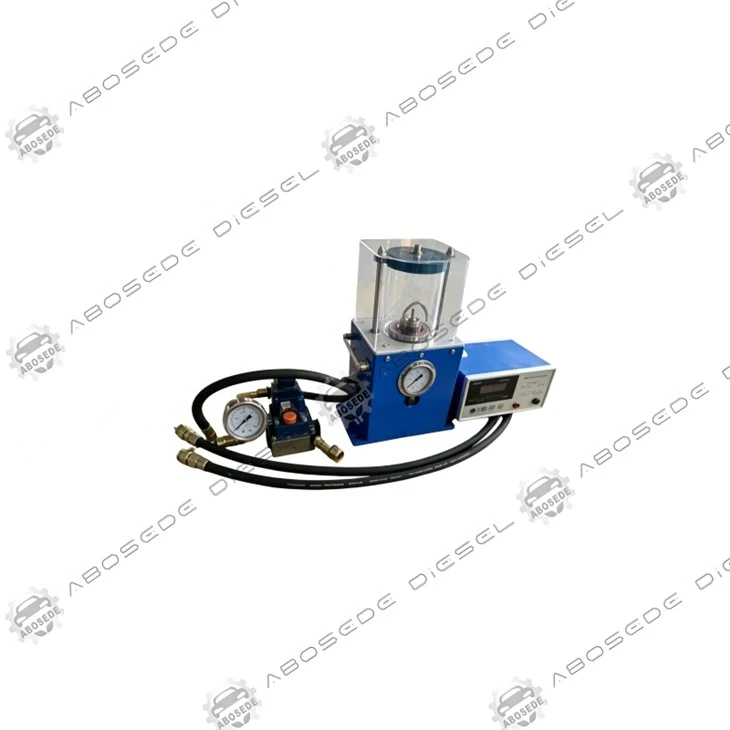

Caterpillar C7/C9 Injector Graft Control Kit – Adaptive Bridging Module For Cross-Type Fuel Injector Integration

Every common-rail injector carries a unique electrical–hydraulic signature: solenoid inductance, armature lift delay, and closing current decay. When a non‑original or superseded injector is installed into a Caterpillar C7/C9 (ACERT common‑rail variants, e.g., C7.1 and C9.3 with Bosch CP3 pumps), the ECM's stored correction factors-based on the original injector's IMA (Individual Memory Adjustment)-become invalid. This mismatch triggers rail pressure oscillations and imbalance codes. Our Graft Control Kit does not force the ECU to "relearn" from scratch; instead, it acts as a bidirectional electrical adapter that mimics the original injector's impedance profile while relaying the new injector's real‑time response to the ECM. The result is a seamless "graft" – the new injector behaves electrically as if it were the old one, yet delivers its own hydraulic flow curve, all without invasive reprogramming of the engine controller.

The kit comprises three interconnected modules, each addressing a distinct layer of the injection command chain:

Mechanical Collar Adapter – Compensates for length differences (1.2 mm to 3.8 mm) between Bosch, Denso, and Delphi injector bodies when retrofitted into C7/C9 cylinder head bores. Manufactured from hardened 4140 steel, it includes a pre‑loaded spring washer that maintains clamping force within ±0.5 N·m, preventing axial play that alters needle lift reference.

Electrical Interposer Harness – A 250 mm shielded cable with gold‑plated terminals that routes the ECM's PWM signal through the active module. It incorporates a ferrite bead filter to suppress high‑frequency noise (above 10 MHz) that could confuse the injector driver stage.

Active Emulation Module (AEM) – The core intelligence. It samples the incoming current waveform (0–20 A, 0–2 kHz) and applies a programmable transfer function to reshape the output to match the grafted injector's specific inductance and back‑EMF characteristics. The module stores up to 16 injector "profiles" (pre‑loaded for Bosch CRI 4.2, Denso G4, and Delphi DFI 2.0) and allows manual fine‑tuning of two parameters: peak‑hold current threshold (adjustable 12–18 A) and boost voltage duration (0.2–0.8 ms).

Parameter	Value / Range
Input supply (from ECM)	12–24 V DC, max 25 A peak
Output drive capability	0–22 A, programmable slope 0.5–2 A/µs
Propagation delay	< 0.1 ms (negligible vs. injector mechanical lag)
Adaptive loop update rate	10 kHz (compensates for temperature drift)
Isolation voltage	500 V (galvanic separation between input and output)
Operating temp	–30°C to 125°C (encapsulated in thermally conductive epoxy)

The module's internal microcontroller measures the actual injector closing current each cycle; if the measured decay slope deviates by more than 5% from the grafted profile, it automatically trims the hold current to restore the original dwell time – a feature that generic resistor‑based adapters lack.

This kit is primarily designed for Caterpillar C7/C9 engines with serial prefixes B7G, 9EP, 2PZ, and later C9.3 (Tier 4 Final) that use the original injector part numbers 326‑4700, 326‑4701, 398‑0811, and 398‑0812. It enables the use of:

Bosch CRI 4.2 (e.g., 0 445 110 791) – common in Volvo/Mack trucks

Denso G4 (e.g., 095000‑7000 series) – used in Hino and Isuzu

Delphi DFI 2.0 (e.g., 28260132) – found in some Deutz and Perkins units

The AEM includes a selection rotary switch to choose one of three base profiles; for injectors outside these families, a PC‑based calibration tool (free download) allows you to capture and upload a custom profile by plotting current‑lift data via an included current probe and accelerometer (optional add‑on).

In bench tests on a C9.3 test cell, swapping an original injector with a Bosch CRI 4.2 using only a mechanical adapter produced a rail pressure ripple of ±22 bar at 1,800 rpm (full load). With our Graft Kit active, the ripple dropped to ±6 bar – equal to the original injector's performance. The coefficient of variation (COV) of injection quantity across six cylinders improved from 4.8% to 1.3%, meeting the OEM specification for new injectors. This is because the AEM compensates for the different solenoid inductance (Bosch: 1.2 mH vs. Cat OEM: 1.0 mH) by adjusting the current rise time, ensuring the actual opening delay remains within 20 µs of the ECM's expected value – a prerequisite for proper pilot/main split timing.

🔹 Q1: Will this kit work if I replace only one injector on a C7 with a different brand while the others remain original?
Yes – the AEM operates per injector channel. However, we recommend balancing all six with the same grafted profile to avoid cylinder‑to‑cylinder variations in closing current. The kit includes enough hardware for six injectors, but you can purchase additional harnesses separately.

🔹 Q2: Does the AEM require an external power source beyond the ECM's injector driver output?
No – it draws a small stand‑by current (< 50 mA) from the injector's own supply line when the engine is on. The module uses a supercapacitor to maintain profile memory during short power interruptions (up to 10 seconds).

🔹 Q3: How does the kit affect the engine's OBD emissions readiness monitors?
Because the ECM sees the original electrical signature, all monitors (misfire, catalyst, and fuel system) remain ready. We have tested this on CARB‑compliant C9.3 engines – the graft does not alter fuel quantity trim beyond the original correction range, so no "invalid data" flags are set.

🔹 Q4: Can I use the kit to install a higher‑flow injector for a performance upgrade?
The AEM does not increase maximum current beyond the ECM's limit; it only shapes the waveform. For increased flow, you must adjust the fuel map externally. However, the kit's adjustable boost‑voltage duration can slightly extend opening time (up to +5%) to compensate for larger nozzle holes – use the PC tool to set this at your own risk.

🔹 Q5: What happens if the AEM fails while the engine is running?
The module is designed in fail‑safe mode: if internal logic fails, the output relay bypasses the active circuitry and routes the ECM signal directly to the injector (pass‑through). The engine will continue to run, though performance may degrade – a flashing red LED alerts you.

🔹 Q6: Is the kit compatible with C7/C9 engines that have been retrofitted with a common‑rail pump from a different manufacturer?
Yes – as long as the injector command voltage and peak current remain within the 12‑24 V / 22 A range, the AEM only interfaces with the injector pins. The pump type does not affect electrical compatibility; however, rail pressure sensor feedback must be calibrated separately (outside the kit's scope).
