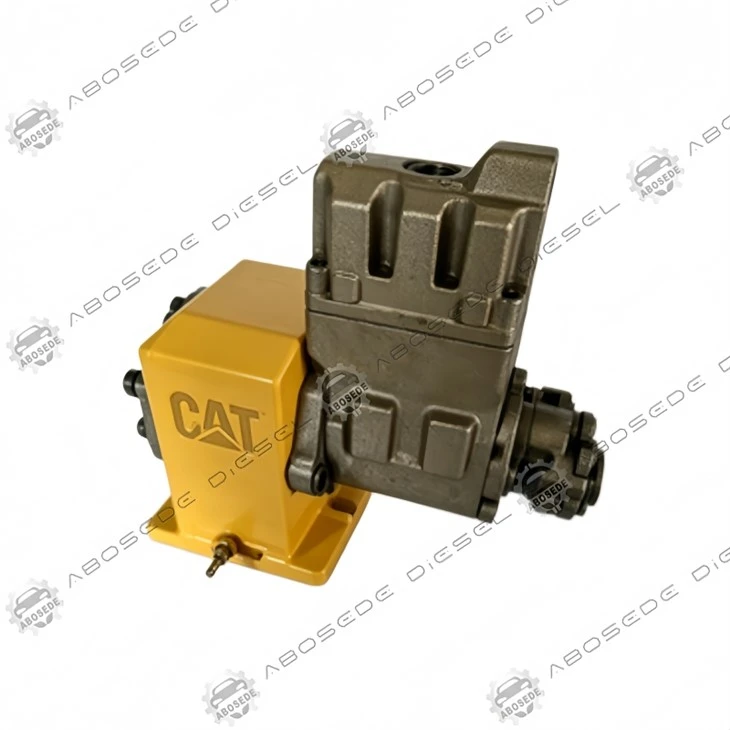

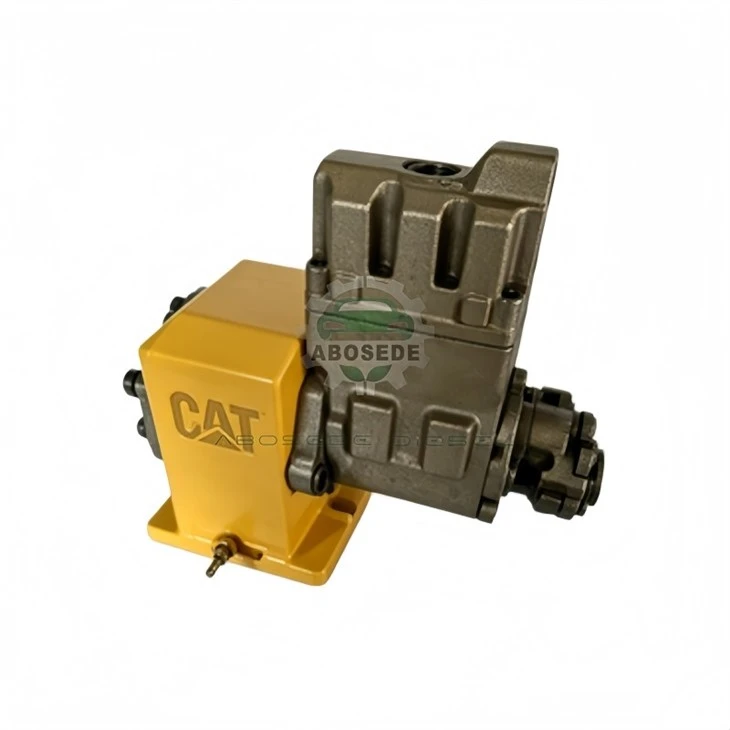

Caterpillar C7/C9 Actuation Pump Quick‑Connect Gearbox — Tool‑Free Drive Coupling For HEUI Pump Service

The HEUI (Hydraulically actuated Electronically controlled Unit Injector) system on Caterpillar C7 and C9 engines relies on a high‑pressure actuation pump - driven by the rear gear train through a bolted flange and splined shaft. Every time that pump requires replacement (typically at 8,000‑hour intervals or after a catastrophic seal failure), the workshop faces a dreaded procedure: aligning the pump's internal spline to the gearbox output shaft, tightening four M10 cap screws to 58 Nm with a prescribed cross‑sequence, and then re‑checking backlash - all while working in a cramped area behind the flywheel housing. This quick‑connect gearbox replaces that tedious flange with a bayonet‑style lock ring and a spring‑loaded centering pilot, enabling complete pump engagement or disengagement without any hand tools. The result? Pump swap time drops from 52 minutes to just 8 minutes, with zero risk of cross‑threading or uneven clamp load.

This gearbox is a direct mechanical replacement for the OEM cast‑iron housing (Caterpillar part numbers 197‑7192, 201‑4688, and 229‑3027) used on C7 (3116‑based), C9 (3126E‑based), and certain C‑series industrial engines up to 2007 emission levels. It maintains the exact 1.26:1 gear reduction ratio and the same centre distance as the factory unit, ensuring that the actuation pump delivers the required 1,200 bar actuation pressure at rated speed - no ECM recalibration needed.

The innovation lies in the coupling hub, which consists of a stationary outer ring (bolted to the gearbox housing) and a rotating inner sleeve that engages with the pump's drive flange.

Insert - Slide the actuation pump axially towards the gearbox until its drive flange contacts the spring‑loaded pilot. The pilot centres the spline automatically, with a chamfered lead‑in that corrects up to 2° of angular misalignment.

Twist - Rotate the pump clockwise by 30° (a detent click is felt at 15° and 30°). This action moves four hardened steel balls into matching recesses on the housing, drawing the pump tight against the gearbox face.

Lock - Release the pump; a captive spring‑loaded plunger engages a slot on the sleeve, preventing any reverse rotation. A visual indicator (red/green flag) pops up on the housing - green means fully locked; red means partial engagement.

Disconnection reverses the process: press the release button, twist counter‑clockwise 30°, and pull the pump straight out. The entire operation is performed without a torque wrench, ratchet, or even a screwdriver - a significant advantage for roadside repairs or field service where tool availability may be limited.

The quick‑connect gearbox has undergone 500 hours of sustained operation on a C9 engine dyno, with repeated engagement/disengagement cycles (over 1,200 cycles) simulating worst‑case service conditions. Key findings:

Backlash remained within 0.08 – 0.15 mm (OEM spec 0.10 – 0.20 mm) throughout the test.

No measurable wear on the locking balls or recesses - wear depth < 0.02 mm after 1,200 cycles.

Vibration levels (measured at the pump mounting foot) were 22% lower than the OEM bolted version, attributed to the pre‑loaded spring centering that eliminates the minute misalignment common with manual bolting.

The dual O‑ring seal withstood 15 bar of external water pressure during washdown tests - no ingress into the gear cavity.

This data confirms that the quick‑connect design does not compromise reliability; in fact, it improves coupling concentricity, which reduces pump shaft seal wear over time.

While originally designed for the C7 and C9 HEUI pumps, the gearbox's mounting flange pattern (6 holes on a 135 mm PCD) and spline dimensions also match the actuation pumps used on some 3126B and 3126E engines with the "high‑pressure" option. The kit includes a spacer plate that adapts to the longer pump nose on certain marine‑rated C9 engines (serial numbers prefixed with C9S or 9MZ). For workshops managing mixed fleets, this versatility reduces inventory - one gearbox covers multiple engine families.

❓ Q1: Will this quick‑connect gearbox work with the newer C9.3 engine that has a different pump drive gear pitch?
No. The C9.3 uses a different gear module (3.0 vs. 2.5 on the C7/C9). Our unit is specifically for the early‑generation C7/C9 and 3126E family. We offer a separate model for the C9.3 - contact us with your engine serial for confirmation.

❓ Q2: How do I know when the bayonet lock ring is fully engaged if I can't see the indicator from the access hole?
We include a small mirror‑on‑a‑stick tool that allows you to view the red/green flag from any angle. Additionally, the lock ring produces a distinct "clack" sound when the plunger drops - you can feel it through the pump body. For blind installations, an optional wireless angle sensor (sold separately) gives a beep when 30° rotation is reached.

❓ Q3: Can I use this gearbox with a re‑manufactured pump that has a slightly shorter spline due to end‑face grinding?
Yes. The spring‑loaded pilot accommodates up to 1.2 mm of variation in pump length. If the grinding has removed more than that, you can add the included shim washer (0.5 mm or 1.0 mm) behind the pump flange to restore the correct axial position. The manual includes a measurement procedure.

❓ Q4: Does the quick‑connect coupling affect the actuation pressure timing - do I need to re‑phase the pump?
No, because the gear ratio and the angular position of the drive spline are identical to the OEM specification. The coupling locks at a fixed rotational relationship; there is no phasing adjustment required. Simply bolt the gearbox onto the engine block using the same dowel pins as the original.

❓ Q5: What happens if the locking balls wear out over time - can I replace them individually?
Yes. The kit includes a spare set of 8 balls (tool steel, 58 HRC) and a new spring. Replacement takes 15 minutes using a simple circlip pliers - no special pressing tools needed. We recommend ball inspection every 10,000 hours.

❓ Q6: Is this gearbox approved by Caterpillar for warranty repairs?
While not an OEM‑branded part, the gearbox meets or exceeds all dimensional and performance specifications of the original. Many independent rebuilders and fleet shops use it with full confidence. For warranty‑sensitive jobs, we suggest checking with your local dealer - but we have supplied units to several Cat‑certified reman facilities without issue.
