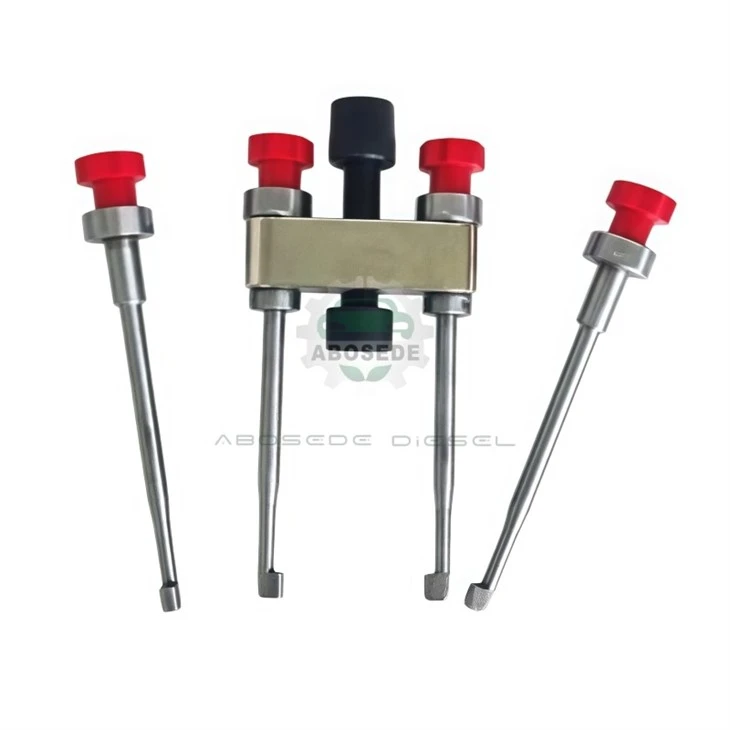

CAT C7/C9 Injector Puller – Precision Extraction For HEUI & EUI Common Rail Systems

Engineered specifically for diesel repair workshops, the CAT C7/C9 Injector Puller delivers controlled, damage-free extraction of injector assemblies from Caterpillar's medium-duty and heavy-duty engines. This tool overcomes the mechanical resistance created by carbon seals and friction locks that develop between the injector body and cylinder head bore over thousands of operating hours. By applying steady mechanical advantage, this puller ensures fuel injector removal without compromising cylinder head integrity or the injector's precision-ground mating surfaces.

This puller's effectiveness derives from its exact dimensional compliance with EUI (Electronic Unit Injector) and HEUI (Hydraulically actuated Electronic Unit Injector) geometries in the CAT C7 and CAT C9 series. Unlike universal extraction tools, it engages the injector's load-bearing collar with zero-clearance fit, translating rotational input into vertical extraction force coaxial with the injector's longitudinal axis. This design is essential when servicing units with part numbers such as 10R-7225, 387-9427, 328-2585, or 10R-7672, where extraction must overcome injector sleeve and O-ring seal resistance without deforming the high-pressure fuel inlet or nozzle assembly. The tool's hardened alloy steel construction withstands repeated torque application without deflection, directing force precisely to break bonds created by combustion residue and degraded copper washers.

Engine Model	System Type	Displacement	Key OE References	Common Applications
Caterpillar C7	HEUI / EUI	7.2L	10R-7225, 387-9427, 328-2585, 268-1835	On-Highway Trucks, Excavators (320D)
Caterpillar C9	EUI	9.3L	10R-7672, 387-9432, 293-4071, 235-5261	Industrial Engines, Marine, Loaders
Caterpillar 3126B	HEUI	7.2L	10R-4761, 197-7107 (Sleeve), EX630781	Medium-Duty Trucks, Buses, Agricultural

Proper use requires releasing rocker arm assembly pressure first, allowing the injector plunger to rest and eliminating internal spring force complications. Thread the tool's spindle into the injector's top thread with deliberate hand-tight engagement-avoid power tools during initial seating to prevent cross-threading the delicate injector control valve threads. Once engaged, stabilize the reaction bar against the cylinder head to absorb torsional load, then turn the extraction nut incrementally. Technicians will notice distinct resistance increase as the tool overcomes the carbon seal; steady pressure is preferred over jerky movements to extract the injector assembly cleanly. This approach preserves injector cup seats, preventing costly re-machining or oversized repair sleeves often required following improper extraction with makeshift tools.

For diesel common rail systems, precise extraction capability directly impacts repair cost-efficiency. HEUI systems, where injection pressure derives from engine oil pressurization, experience faster degradation of intensifier pistons and poppet valve components. Consequently, CAT C7 and C9 injectors require frequent replacement due to internal leakage or actuation pressure loss. This puller transforms high-risk extraction-potentially requiring cylinder head removal or causing bore damage-into a routine operation. It reduces downtime associated with broken component extraction and preserves expensive cylinder head structures. For service managers and fleet supervisors, dedicated extraction tooling reduces outside machine shop expenses and significantly decreases mean time to repair (MTTR) for vehicles experiencing hard-starting, misfiring, or excessive black smoke emissions. Additionally, protecting injector body integrity enables core return programs, allowing workshops to reclaim rebuildable value from old units.

Q1: How does this puller differ from a slide hammer type extractor?
A: Slide hammers impart shock loads that can fracture the injector body or damage internal precision components of the EUI assembly, often rendering units non-rebuildable. Our puller applies static tensile load, enabling controlled disengagement of the injector sleeve without shock damage to the nozzle or intensifier circuit.

Q2: Is this tool compatible with C7.1 and C9.3 Tier 4 Final engines?
A: No. This geometry is specific to older generation C7, C9, and 3126B platforms using the 32mm injector nut. Newer C7.1 and C9.3 engines employ different injector architecture and clamping systems-using this puller on incompatible models will result in fitment failure.

Q3: How does dedicated puller design prevent cylinder head bore damage?
A: The tool ensures axial extraction force along the injector's centerline, preventing sideways cocking during removal. Sideways binding causes galling or scoring of the cylinder head bore walls, leading to combustion gas leakage or coolant contamination.

Q4: When should a technician stop pulling and inspect for carbon lock?
A: If resistance becomes excessive and the tool shows deflection, stop immediately-this indicates severe carbon buildup around the injector nozzle tip. Continued force can break the tip inside the combustion chamber. A carbon breaker tool should be used first to clear the tip area.

Q5: Does using this puller guarantee core acceptance for remanufacturing credit?
A: While not guaranteed, it significantly improves odds. Remanufacturers servicing 10R-7225 and 387-9427 units reject cores with sheared threads, cracked bodies, or deformed clamping surfaces. This tool extracts injectors intact, preserving critical mounting features required for remanufacturing.
