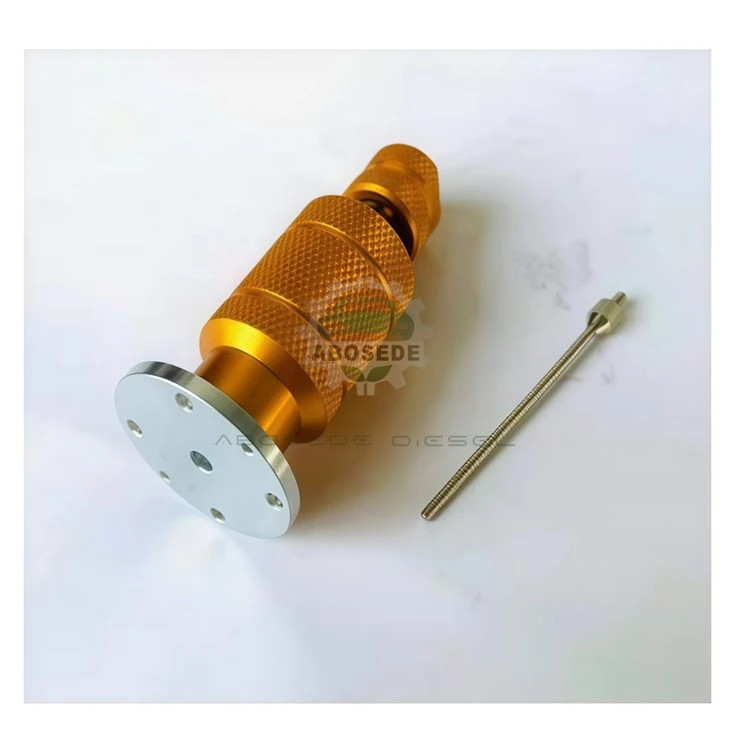

C7 C9 Measuring Tools – Precision Diagnostic Solutions For HEUI Common Rail Systems

Engineered specifically for Caterpillar HEUI (Hydraulically actuated Electronically controlled Unit Injector) systems, the C7 C9 Measuring Tools deliver workshop-grade accuracy for diesel repair facilities and parts distributors. This diagnostic kit enables technicians to assess injector health, control valve clearance, and plunger cavity integrity with laboratory-level repeatability, addressing the unique actuation dynamics where oil pressure and electronic control define injection performance.

The C7 C9 Measuring Tools operate within a lube oil pressure simulation range of 0 to 20 MPa and accommodate injection pulse width adjustments from 0.1 to 8 ms, parameters essential for replicating actual engine running conditions. The kit includes specialized gauges for measuring control valve plunger cavity depth and injector height with calibrated scales ensuring micron-level precision. The testing apparatus supports input power configurations of AC 380V/50Hz/3Phase or 220V/60Hz/3Phase and incorporates a 5μ filtration precision system to maintain oil cleanliness during extended test cycles. Every measurement-from backflow quantification to sealing integrity validation-adheres to OEM rebuild standards.

Beyond the core Caterpillar C7 and C9 models, this toolkit extends across the HEUI engine family, encompassing 3126, 3126B, 3408, and select C-9 configurations found in on-highway trucks, excavators, and stationary generators. The apparatus effectively tests high-speed oil quantity, medium-speed oil quantity, and cranking oil quantity, providing a full performance spectrum critical for engine rebuild decisions. Its versatility also supports EUI and EUP testing for Bosch, Cummins, and Delphi systems with appropriate adapters, making it a multi-brand asset for independent shops and wholesale distributors serving mixed fleets.

Deploying the C7 C9 Measuring Tools requires strict procedural discipline to prevent cross-contamination and ensure data validity. Prior to measurement, technicians must verify the forced-cooling system is operational and that test oil temperature stabilizes at 40°C, as thermal variance directly impacts viscosity and injection timing. The industrial computer interface displays real-time feedback from flow meter sensors and requires calibration with the correct injector data set for the specific engine serial number. Physical installation incorporates a plexiglass protective door for operator safety during high-pressure actuation tests, with the unit securely mounted on a stable surface accommodating overall dimensions of 1200×750×1400 mm.

Integrating the C7 C9 Measuring Tools into service workflows delivers quantifiable gains in repair accuracy and cost control. Executing sealing tests and lube oil backflow quantification early in diagnosis allows shops to differentiate between injector mechanical wear and electronic driver faults, reducing unnecessary component swaps. This capability directly addresses the industry pain point of HEUI injector lacquering and plunger binding, where traditional pressure testing alone falls short. For parts distributors, the tooling system enhances aftermarket credibility by enabling validation of rebuilt injectors before dispatch, while preserving expensive engine components and slashing customer downtime.

---

Q1: How does this tool differentiate between a failing injector and an ECM command issue?
A: By measuring both actuation pressure response and drive pulse width, it isolates hydraulic and electrical variables to verify whether a misfire stems from a worn plunger versus a signal interruption, preventing costly misdiagnoses.

Q2: Is this toolkit compatible with the C9.3 engine?
A: This toolkit is calibrated for Cat C7, C9, 3126, and C-9 configurations. For C9.3 engines with different rail architecture, compatibility is not guaranteed without consulting our adapter chart.

Q3: What is the annual maintenance cost for this test bench?
A: Minimal. The primary consumable is the 5-micron test oil filter, changed every 200 operating hours. Flow meter sensors are solid-state with no routine calibration required.

Q4: Can the software generate custom fleet reporting logs?
A: Yes. The industrial computer allows data saving and searching for each test cycle, producing printouts (optional) for customer documentation or internal quality control and warranty audits.

Q5: How does the bench protect HEUI injectors during high-pressure testing?
A: The system uses drive signal modulation to gradually ramp lube oil pressure up to 20 MPa, combined with short-circuit protection, preventing sudden shocks that could damage internal spool clearances.

Q6: Can this be used on a mobile field service truck?
A: No. Given its 400 kg weight and requirement for 220V or 380V 3-phase power, this bench is designed for permanent shop installation, not mobile field use.
