Denso Transfer Pump 294180-0090 – Common Rail Fuel Feed Rotor Set

Designed as the primary fuel lift mechanism for Denso HP3 high-pressure pump assemblies, the 294180-0090 transfer pump ensures a regulated fuel supply reaches the injection system. This gear-type transfer pump draws diesel from the tank and delivers it at consistent feed pressure to the high-pressure pumping stage. Workshops and parts distributors serving modern diesel platforms recognize this rotor set as mission-critical for maintaining combustion stability and injector protection across common rail architectures.

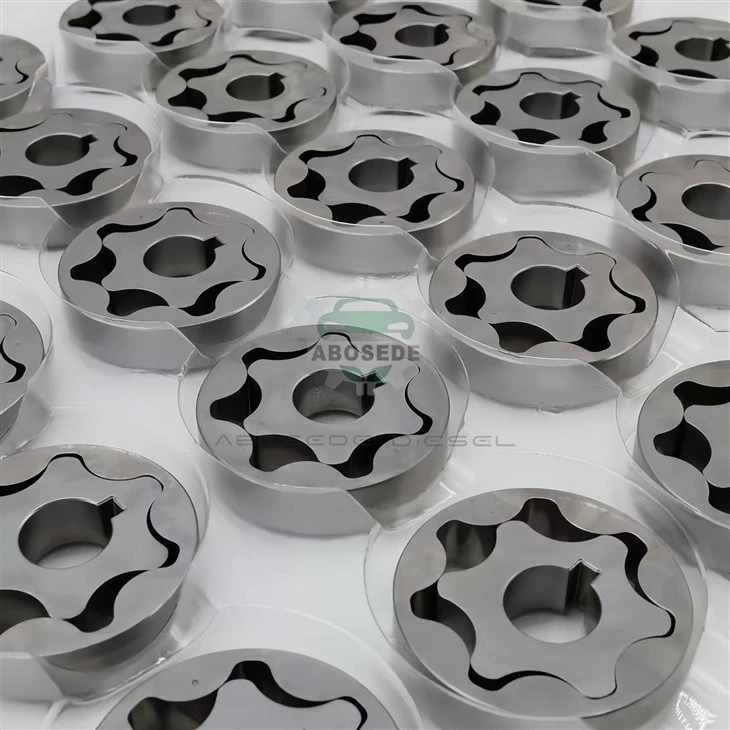

Manufactured under Denso Thailand quality protocols, the 294180-0090 functions as a positive displacement rotor set comprising matched inner and outer gears. The part operates within the HP3 common rail system, where feed pressure consistency directly governs high-pressure pump inlet conditions. Volumetric efficiency depends on the metallurgical hardness and dimensional precision of these gear interfaces. Original equipment designation 294180-0090 serves as the sole accurate reference for HP3 rotor replacement. Technicians must confirm flow rate compatibility with Denso HP3 specifications before installation, as mismatched delivery volumes introduce aeration or pressure drop across the high-pressure circuit. The component's material composition resists diesel fuel degradation, yet wear remains inevitable given the tight clearances involved.

The transfer pump finds broad deployment in vehicles relying on the Denso HP3 injection architecture. Primary fitment includes the Toyota Hi-Lux with 2KD-FTV 2.5L diesel engines produced between 2005 and 2008, where this rotor set commonly appears in fuel system overhauls. Beyond light-duty applications, heavy-duty trucks from Mack (LEU, LR, MRU, CHU, GU series) and Volvo (VNL, VNM, VNR, VAH, VHD) equipped with 11L and 13L powerplants and US17+OBD emissions standards also rely on this same HP3 pump architecture. Parts distributors catering to both off-highway equipment and on-road fleets will recognize the 294180-0090 as a consistent mover within diesel aftermarket inventory.

Installation of this feed pump rotor set demands a contaminant-free environment and exact alignment with the pump drive shaft. Access requires removal of the HP3 pump head or end cover, exposing the rotor cavity. The replacement unit must be pre-lubricated with clean diesel or light assembly oil before rotation; dry starts cause immediate scoring on the gear surfaces. Proper engagement of the drive lug or locating pin prevents misalignment, which would otherwise stop fuel delivery entirely. Following reassembly, diagnostic monitoring should include checks for P0194-00 (Fuel Rail Pressure Sensor Circuit Erratic) or P016E-00 (Closed Loop Fuel Pressure at Control Limit), both of which may be triggered by insufficient feed pressure originating from a worn or incorrectly seated transfer pump.

Degradation of the 294180-0090 directly compromises high-pressure pump longevity. Cavitation occurs when a weak feed pump introduces vapor pockets, leading to plunger scoring and eventual pump destruction. By replacing only the rotor set rather than the complete HP3 housing, repair shops offer customers a budget-conscious alternative that addresses the wearable interface without discarding serviceable pump bodies. Fleet managers proactively exchanging this feed pump during scheduled fuel system servicing observe fewer injector failures and reduced cold-start hesitation. This component intervention preserves rail pressure integrity across the entire fuel delivery chain, minimizing unplanned roadside breakdowns for commercial operators.

Q1: Which engine families use this rotor set beyond the Toyota 2KD-FTV?
A: The HP3 system housing this rotor set also appears in Mack and Volvo heavy-duty engines meeting US17 emissions standards, plus various industrial diesel applications using Denso HP3 architecture. Always verify the pump nameplate for HP3 designation before ordering.

Q2: Does this rotor set include the pump housing or only the gears?
A: The 294180-0090 supplies the inner and outer gear rotor assembly only, not the complete pump housing. Installation requires transferring the new rotor set into the existing HP3 pump body.

Q3: What diagnostic symptoms indicate transfer pump failure?
A: Extended cranking, rail pressure drop under acceleration, and fault codes related to fuel pressure regulation often point to this component. Loss of prime after vehicle sits overnight is another common indicator.

Q4: How does feed pressure degradation affect injector lifespan?
A: Low feed pressure forces the high-pressure pump to work harder, introducing cavitation that damages plungers. This creates metal debris which travels downstream and erodes injector nozzles, dramatically shortening injector service intervals.

Q5: Can I reuse the original seals when replacing this rotor set?
A: Denso recommends fitting new O-rings and seals alongside the 294180-0090 rotor set. Reusing aged seals risks fuel leaks and air ingress, compromising feed pressure immediately after assembly.
