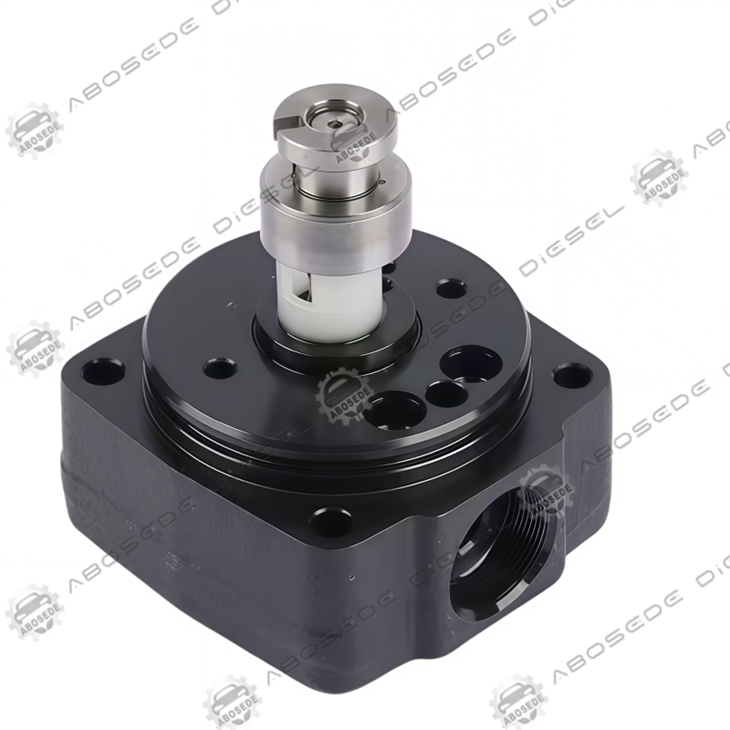

096400-1250 Diesel VE Pump Head (Head Rotor) | High-Precision Hydraulic Unit For Toyota & Isuzu 4-Cylinder Engines

In the high-stakes world of diesel combustion, the difference between a clean burn and a cloud of black smoke lies in the micron-level tolerances of the fuel injection system. The 096400-1250 pump head-often referred to as the "Head Rotor"-is not merely a replacement part; it is the hydraulic core of the VE (Verteiler-Einspritzpumpe) distribution pump. While modern Common Rail systems use electronic unit injectors, millions of reliable engines worldwide still depend on this rotary architecture.

For workshop owners and procurement managers, understanding the material science behind the 096400-1250 is vital. This component operates under extreme pressure (often exceeding 500 bar during injection). To withstand these forces without galling or seizing, high-quality versions are crafted from specialized case-hardened steels (such as GCR15 or 20CrMnTi). This article explores why selecting a pump head with superior metallurgy and precise grinding is essential for restoring engine performance and longevity.



🎯 Selection Logic: Precision Over Price



When sourcing a replacement for a worn VE pump, the temptation is often to buy the cheapest option. However, the selection logic for the 096400-1250 must prioritize hydraulic efficiency and durability.

The "Three Pairs" Compatibility: The 096400-1250 is designed to house the critical "three pairs" of偶件 (precision mating parts): the plunger/barrel, the delivery valve/seat, and the hydraulic head/distribution rotor. A poor-quality housing will not maintain the concentricity required for these parts to seal effectively.

Surface Finish & Hardness: Look for units that undergo vacuum heat treatment and mirror finishing. A surface roughness that is too high will cause premature wear, while insufficient hardness (below HRC 60-62) will lead to deformation under load.

Flow Rate Consistency: The internal galleries of the 1250 model are calibrated for specific flow rates suitable for 4-cylinder engines. Using a head from a different series (e.g., a 6-cylinder variant) will result in incorrect fueling maps and potential piston damage.

💡 Pro Tip: Always replace the plunger and delivery valve when installing a new 096400-1250 head. Mixing old wear-prone components with a new head creates mismatched tolerances that kill performance.





Ensure this specification matches your existing pump data plate.



Feature	Specification	Contextual Note
Part Number	096400-1250	Standard Denso/Bosch VE style cross-reference
Configuration	4-Cylinder Head Rotor	Designed for inline-4 cylinder engines
Material	Alloy Steel / Bearing Steel	High carbon content for wear resistance
Hardness	HRC 62-65	Essential for high-pressure durability
Application	Toyota / Isuzu / Pickup	Common in light commercial vehicles
Pressure Rating	Up to 500+ Bar	Peak injection pressure capability
Rotation	Bi-Directional Capability	Depends on cam plate profile (check pump type)





To appreciate the engineering of the 096400-1250, one must visualize its function within the pump assembly.

The Distribution Function

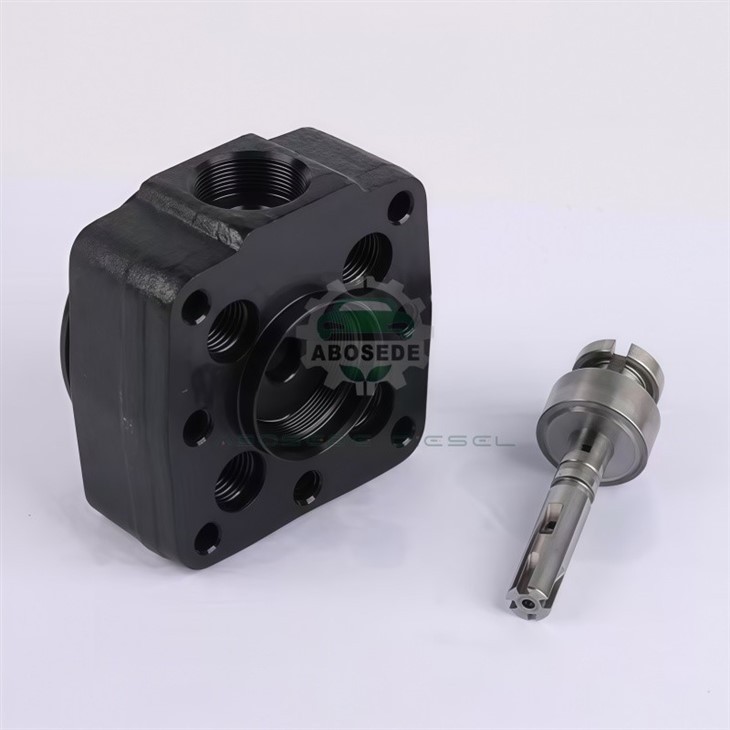

Unlike inline pumps which have separate barrels for each cylinder, the VE pump uses a single plunger housed inside the Head Rotor. As the plunger reciprocates to create pressure, the head rotor spins to align discharge ports with the specific outlet line for the firing cylinder. The 096400-1250 is machined with these precise distribution galleries.

The Hydraulic Head
This is the stationary outer shell that fits into the pump body. It contains the charging ports (inlet) and the high-pressure outlets. The interface between the rotating rotor and the stationary hydraulic head is where the magic happens-and where most failures occur if filtration is poor.

Centrifugal Advance Integration
While the 096400-1250 is the hydraulic component, it works in tandem with the pump's advance piston. The pressure generated within this head helps actuate the timing advance mechanism, ensuring the engine runs smoothly at both idle and high RPMs.





Installing a new pump head is a delicate procedure that requires cleanliness and precision.

Cleanliness is Godliness: The tolerances inside the 096400-1250 are less than 2 microns. Any dust or debris introduced during assembly will score the surfaces immediately. Work in a dust-free environment.

Lapping and Seating: If reusing the housing (though not recommended), the mating surfaces must be lapped flat. For new units, ensure the O-rings and copper washers are replaced to prevent external leaks.

Fuel Quality Check: Water in diesel is the enemy of the VE pump. The 096400-1250 relies on diesel for lubrication. Water causes rust, which destroys the plunger fit. Always install a high-quality water separator filter.

Static Timing: After installation, the pump timing must be set using a dial gauge (typically 1.0mm lift, but check manual). Incorrect timing leads to hard starting or backfiring.





Q1: Can I rebuild my old 096400-1250, or should I buy new?
While rebuilding is possible, it requires specialized tools (calibrating bench, collet puller) and clean room conditions. For most workshops, swapping in a pre-calibrated new 096400-1250 head is more cost-effective and reliable.

Q2: What are the symptoms of a worn-out pump head?
Common signs include difficulty starting (especially when hot), uneven idle (misfiring), excessive white smoke (unburnt fuel), and a drop in engine RPM under load.

Q3: Is the 096400-1250 compatible with biodiesel?
Yes, mechanically it handles biodiesel well. However, biodiesel acts as a solvent and can degrade rubber seals over time. Ensure all O-rings in the pump assembly are made of Viton or compatible synthetic rubber.

Q4: Does this head come with the plunger and delivery valve?
Usually, the "pump head" refers to the casting and rotor assembly. The plunger kit and delivery valves are often sold separately as "3-pair kits." Always verify what is included in the box before purchasing.

Q5: How does this relate to Common Rail systems?
The 096400-1250 is for older mechanical VE pumps, not modern Common Rail. However, many fleets still operate these engines because they are simpler to fix in remote areas compared to CR systems.

Q6: What is the significance of the "1250" number?
It is a dimensional and flow-rate designation used by the manufacturer (like Denso or Bosch) to distinguish it from 3-cylinder (e.g., 1680) or 6-cylinder (e.g., 1670) variants.
