Precision Reconditioning Package For Denso Common Rail Injectors – Direct Fitment For 295050-0520 & 23670-09350

This overhaul kit addresses the degradation patterns inherent to the Denso G3S73 injector platform, delivering a factory-specified solution for restoring hydraulic efficiency without complete unit replacement. Engineered for workshops servicing modern common rail architectures, this set carries the critical OEM interchange references 295050-0520 and 23670-09350, ensuring direct applicability across multiple Toyota diesel variants. Rather than opting for costly new injector assemblies, technicians can leverage this precision-engineered component collection to reinstate injection accuracy and eliminate pressure bleed issues commonly observed in high-mileage fuel systems operating at rail pressures beyond 1,600 bar.

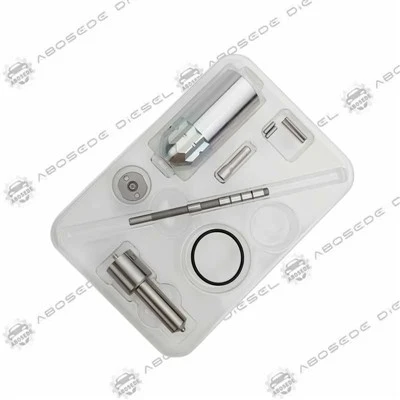

Included within this service package are the high-wear elements that dictate injector response characteristics. The control valve assembly, responsible for modulating spill port flow and injection dwell time, arrives pre-dimensioned to original equipment standards. Accompanying this are the needle valve and mating dowel pin, both ground to specific clearance tolerances that directly influence spray atomization quality. The seal complement comprises FKM-based O-rings and backup rings, selected for their resistance to biodiesel blends and thermal excursion events within the injector body. Every component reflects the dimensional constraints imposed by the 23670-09350 OE specification, guaranteeing that the rebuilt injector maintains the flow coefficients required for Euro 4 emissions compliance . This kit intentionally excludes the solenoid actuator, focusing instead on the mechanical cartridge where abrasive wear from particulate contamination most frequently compromises performance .

Interchangeability of the 295050-0520 identifier places this kit firmly within the Toyota D-4D ecosystem. Primary recipients are the 2KD-FTV and 1KD-FTV power units, which equip the Hilux (model years 2005 through 2015), alongside the Hiace van range and Fortuner SUV in markets where diesel remains the predominant fuel . Cross-verification against the 23670-09350 number confirms its role as the service counterpart for four-injector configurations adhering to Euro 4 emission norms . Additional interchange compatibility extends to remanufactured units cataloged as DCRI300460, broadening its utility for workshops managing inventory across Australian mining fleets, European agricultural support vehicles, and African overland expedition platforms where these engines are renowned for their endurance.

Disassembly of the G3S73 injector demands a contamination-controlled environment, as microscopic debris can compromise the lapped surfaces within the valve group. Before initiating the overhaul, technicians must record the existing IQA (Injector Quantity Adjustment) code from the engine control module; this numerical value must be reprogrammed following mechanical reassembly to preserve cylinder balancing . Torque application to the injector retaining nut requires careful adherence to specified angular values, as excessive force induces bore distortion that impedes needle lift and promotes premature sticking. It is strongly advised to simultaneously replace the high-pressure connection washers and the fuel return line sealing elements, as these external interfaces frequently become leak paths after injector extraction. The use of a Denso-specific seat lapping tool is non-negotiable for achieving the required surface finish on the valve seat prior to installing the new control piston .

Opting for a premium overhaul set over a complete injector replacement delivers substantial cost advantages for fleet operators, yet the technical execution determines the outcome. Common rail systems exhibit zero tolerance for compromised injection events; an injector exhibiting poor atomization contributes to oil dilution, elevated exhaust gas temperatures, and accelerated wear on the upstream high-pressure pump due to pressure feedback anomalies . By renewing the internal valving and sealing elements, this kit reinstates the multi-injection strategies-pilot, main, and post-injection-that define the D-4D combustion characteristics . Workshops frequently report resolution of the characteristic "nailing" noise and erratic idle behavior in 1KD-FTV engines following a correct overhaul, with restored fuel efficiency and reduced soot loading on the EGR and DPF systems serving as further validation of a successful rebuild .

Q1: Are the nozzle and needle valve pre-lapped from the factory, or does the technician need to perform this step?
A: The mating surfaces are finished to operational tolerances at origin. However, a light lapping procedure against the existing injector body seat is recommended to accommodate minor wear variations in the housing, ensuring optimal hydraulic sealing upon final assembly.

Q2: Could this service set be applied to injectors initially designated with 295050-0460 or 295050-0200 without modification?
A: Yes. Based on technical bulletins covering Denso G3-type injectors, the 295050-0520 supersedes these earlier identifiers and shares identical cartridge dimensions, permitting direct substitution across multiple production runs of the 2KD and 1KD engine families .

Q3: What measurable improvement in fuel return rate should a workshop expect after a successful overhaul using this set?
A: A properly executed rebuild should reduce the leak-off volume to within 20–30 ml per minute at idle, compared to the 80–100 ml per minute often observed in worn units. This reduction directly correlates with improved rail pressure stability.

Q4: From a wholesaler's perspective, how does this kit address the variability in core quality when supplying to different workshops?
A: This kit standardizes the variable elements of the injector. It provides a consistent baseline for the mechanical cartridge, allowing the workshop to focus on the condition of the solenoid and body-factors outside the kit's scope-without compromising the rebuild outcome.

Q5: Does the 295050-0520 kit include any components for the solenoid armature or only the lower hydraulic section?
A: The package is strictly confined to the hydraulic section. It supplies the needle, nozzle, control valve, and all associated seals. The magnetic armature and coil are not included, as these components typically exceed the service life of the mechanical cartridge and are evaluated separately.

Q6: Is there a risk of the new seals deteriorating when exposed to high percentages of biodiesel (B20/B30) in the European market?
A: The included FKM elastomers are formulated to resist the swelling effects associated with fatty acid methyl esters. For B30 blends, the backup rings provide additional extrusion resistance, safeguarding the seal integrity under high-pressure fluctuations.
