Heavy-Duty Injector Rebuild Core – DENSO 295050-0901 / 16600-LC10B For 2KD-FTV & YD25 Platforms

For workshop operations dealing with high-mileage Toyota Hilux, Nissan Cabstar, and similar commercial diesel workhorses, the DENSO common rail injector identified by engineering code 295050-0901 represents a critical wear component. This service kit addresses the internal hydraulic degradation that compromises fuel delivery precision. The OEM crossover 16600-LC10B confirms this as the correct specification for DENSO G2-type injector bodies used across multiple light-duty truck platforms. For rebuilders in African and Southeast Asian markets where parts availability and cost-efficiency determine service intervals, understanding this injector's failure modes and restoration process is essential to maintaining fleet uptime.

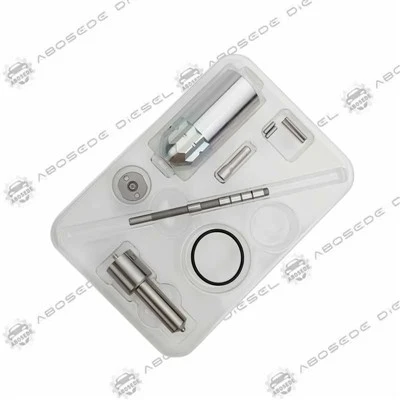

The 295050-0901 repair set targets the control valve unit and guide plunger assembly-the two areas most susceptible to wear in high-pressure operation. DENSO injectors operating at rail pressures up to 1,600 bar rely on precision-mated surfaces within the valve seat and half-ball interface. Laboratory analysis of failed units identifies surface scratching and deformation of the valve seat as primary failure mechanisms, typically caused by fuel contamination or improper filtration . The kit includes the specific damper spring and spacers calibrated to restore the injector's hydraulic response curve. When rebuilding, resistance checks on the solenoid typically fall between 0.5–0.7 Ohms for this generation, a baseline that should be verified against factory specifications .

This injector assembly directly services the 2KD-FTV engine found in Toyota Hilux, Fortuner, and Innova models, alongside Nissan applications including the Cabstar and Navara equipped with the YD25 powerplant. The Euro 5 emissions variant of the Nissan Cabstar specifically carries this injector configuration . Cross-reference verification using both DENSO 295050-0901 and OEM 16600-LC10B ensures correct component matching. For workshops handling mixed fleets of Japanese light commercial vehicles, maintaining stock of this specification covers a significant portion of the 2.5L common rail segment. Note that while the injector body may appear externally identical across applications, internal shim stacks and calibration differ-always verify the stamped code on the injector body before proceeding with overhaul.

Successful overhaul demands strict adherence to contamination-control protocols. Ultrasonic cleaning should not exceed 30 minutes, and control solenoid valves must remain out of cleaning fluid to prevent plastic housing damage and insulation breakdown . Post-cleaning inspection focuses on the guide plunger-any resistance during removal indicates permanent seizure and renders the injector unserviceable . The half-ball valve installation requires precise orientation: the flat face must be visible and level with the valve stem before insertion. If the spherical portion remains visible, the valve will not seat correctly, compromising sealing performance . Torque specifications for the retaining yoke are critical-over-tightening during engine assembly has been documented as a primary cause of injector body deformation and cracking.

In markets where new OEM injector pricing presents a significant barrier to fleet maintenance, the DENSO repair kit offers a cost-effective alternative that restores injector function without sacrificing operational reliability. Technical research confirms that DENSO electromagnetic injector repairs demonstrate "very high efficiency" for reasonable service intervals . However, for injectors exceeding 200,000 km, replacement of the precision pair (needle and spray nozzle) is recommended regardless of the diagnosed fault type . The growing incidence of control element failures-often difficult to address due to limited availability of original spare parts-makes proactive rebuild programs a strategic advantage for wholesale distributors and large workshop operations managing multiple vehicles.

Q1: How do I verify whether the 295050-0901 kit matches the injector bodies in my stock?
A: Read the alphanumeric code stamped on the injector main body. Cross-reference against the DENSO part number on the solenoid housing. If the code shows 295050-0900 or 295050-0901, this kit is compatible. For Nissan Euro 5 variants, the 16600-LC10B reference confirms the fit.

Q2: What is the most common failure this kit addresses that simple nozzle replacement doesn't?
A: Internal leakage caused by guide plunger scoring or valve seat deformation. Nozzle replacement alone does not resolve excessive leak-off rates. A static leak test (LKT) above 85 MPa on the test bench typically indicates internal control valve wear that this kit addresses.

Q3: Can this repair kit be used for engines already beyond 200,000 km?
A: Yes, but the precision pair (needle and nozzle) should be evaluated separately. Research indicates that beyond 200,000 km, even if other components are restored, the nozzle assembly may require replacement regardless of the specific fault identified.

Q4: What tools are required to perform the rebuild correctly?
A: You will need a valve seat removal tool specific to DENSO injectors, lapping tools for the ball valve seat, and a proper injector holding jig. General-purpose tools will damage the precision surfaces. A common rail injector test bench is essential for verifying flow rates post-rebuild.

Q5: Why do I need to check solenoid resistance during the rebuild process?
A: Resistance measurement (typically 0.5–0.7 Ohms for this generation) confirms electrical integrity. Any deviation indicates potential winding faults or internal damage. This test is supplementary to the standard test bench procedure but helps identify issues not detectable through mechanical inspection alone.

Q6: What is the lead time and MOQ for wholesale orders destined for African or Southeast Asian ports?
A: Please contact our sales team directly with your quantity requirements and destination port. We maintain stock levels to support regional wholesale operations and can provide shipping schedules upon request.
