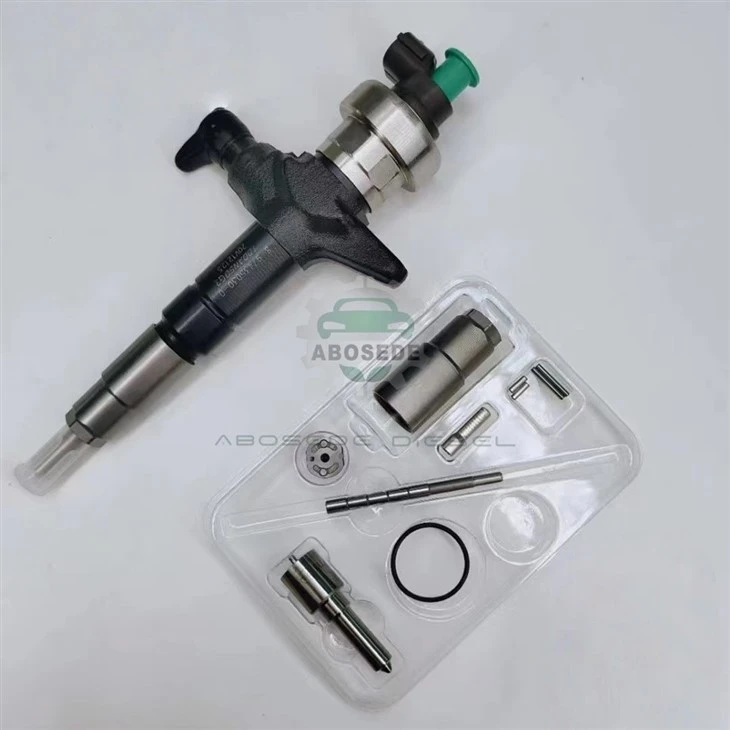

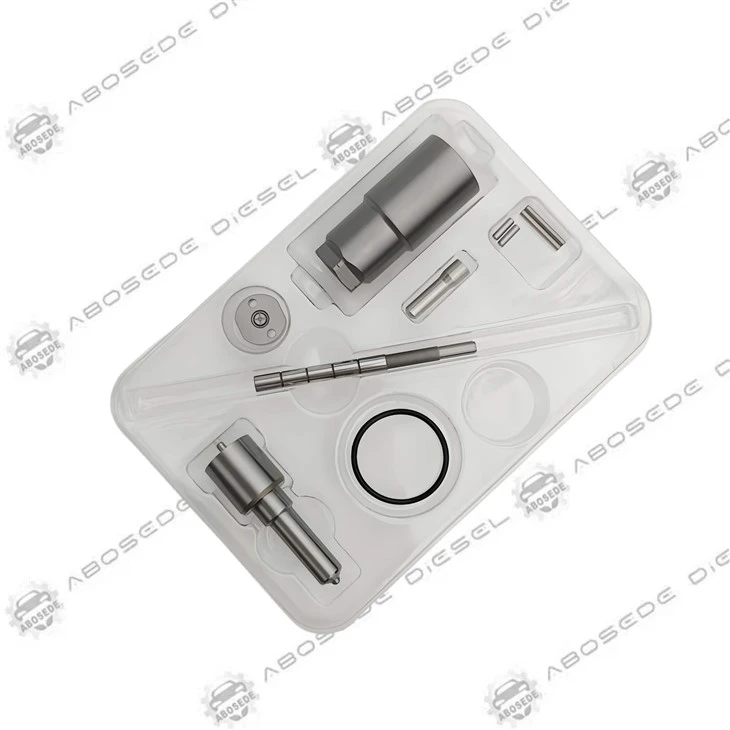

Denso 095000-8340 / 8-97435030-1 – G2 Common Rail Injector Overhaul Set

For independent diesel workshops and aftermarket distributors, the real profit erosion rarely stems from the initial parts sale-it is buried in the warranty callbacks and bench time lost to subpar consumables. When servicing a Denso G2 platform injector, the choice of overhaul components directly dictates the hydraulic consistency of the fuel delivery system. This repair set, identified by OEM references 095000-8340 and 8-97435030-1, addresses the specific wear mechanisms that degrade injection timing and volumetric efficiency in high-mileage commercial powertrains. Rather than merely supplying components, this package offers a workflow that targets the control chamber sealing integrity and nozzle opening dynamics, allowing a shop to restore injector behavior to parameters that align with the ECU's original correction maps.

From a workshop operations standpoint, the most frequent failure vector in this injector variant is the progressive erosion of the half-ball valve interface and its corresponding seat. This wear manifests not as immediate breakdown but as a gradual drift in the fuel metering accuracy, leading to uneven idle, sluggish throttle response, and eventual cranking difficulties when the engine is cold. For the distributor holding inventory, the financial hit comes twofold: return rates spike when rebuilt units fail leak-off tests prematurely, and shop labour gets consumed by re-diagnosing the same unit. This kit directly confronts that pattern by supplying the precision-ground control valve assembly and the matched command piston, which are the two surfaces most vulnerable to the abrasive action of high-pressure fuel cycling. Replacing these as a matched set eliminates the tolerance stacking that occurs when mixing used valve components with fresh springs, ensuring that the injector's internal pressure balance returns to the design window required for stable pilot injection events.

Distributors managing stock across multiple commercial vehicle marques face a persistent dilemma: carrying dozens of SKUs ties up capital, yet stocking too narrowly loses sales. The cross-reference pairing of 095000-8340 alongside 8-97435030-1 points to a single injector platform that appears across Isuzu N-Series trucks, Hino 500 models, and certain off-highway power units used in telescopic handlers and wheel loaders. This breadth means that a single bin of these overhaul sets can serve a regional workshop handling mixed fleets, reducing the need to maintain separate line items for each vehicle badge. For the service bay, this universality simplifies the rebuild queue-technicians can process multiple injector cores from different customers using identical consumables, cutting the parts verification time per job. Importantly, when reinstalling these rebuilt units, the workshop must retrieve the QR code correction stored in the engine management system and re-enter it after assembly, as the ECU relies on that alphanumeric string to fine-tune the solenoid energising time for each cylinder. This step is non-negotiable; skipping it introduces cylinder-to-cylinder imbalance that no mechanical adjustment can correct.

The physical installation of this consumable set demands more than a clean bench-it requires a disciplined workflow that accounts for torque-angle tightening and component orientation. The nozzle retaining nut supplied in this kit must be drawn down to a specific clamping load, not merely a torque figure, because the compressibility of the copper sealing washer alters the effective preload. Over-tightening distorts the injector body, causing the command piston to bind within its bore, while under-tightening permits combustion gases to creep past the nozzle seat, leading to carbon fouling that ruins the new half-ball valve within running hours. Equally critical is the handling of the solenoid armature: the magnetic gap between the armature and the coil core determines the energising dwell required for precise injection onset. This kit includes the correct shim stock to set that air gap, but the fitter must measure the existing clearance with a dial indicator before disassembly, then select the appropriate shim thickness from the provided range. Workshops that skip this measurement often find the rebuilt injector produces a delayed injection command, which elevates exhaust gas temperatures and accelerates DPF clogging in on-highway applications.

The decision to overhaul rather than replace an injector hinges on a cost-benefit calculation that extends beyond the parts invoice. For a fleet operator, the breakeven point typically falls between 180,000 and 220,000 miles of service; beyond that window, the guide plunger and the injector body bore often exhibit scoring that no consumable kit can remedy. This scoring introduces parasitic leakage past the plunger, raising the return fuel volume to a level that starves the high-pressure pump of adequate feed pressure. Distributors advising their workshop clients should frame this kit as a diagnostic-dependent investment: if a flow bench test shows the injector delivering within 15% of nominal delivery across all test points, the kit offers a cost-effective restoration. However, if the delivery deviation exceeds that threshold, the core is likely too worn to justify the labour, and a complete exchange injector becomes the logical choice. This nuance positions the kit not as a universal cure but as a precision tool for cases where the hydraulic architecture remains structurally sound, enabling the workshop to offer tiered service options that match the customer's budget and uptime requirements.

Q1: What is the average inventory turnover rate we should expect for this overhaul set in a regional warehouse serving mixed fleets?
A: Based on fleet maintenance cycles, turnover typically aligns with 100,000‑ to 120,000‑mile service intervals for Isuzu and Hino trucks. Distributors in agricultural regions often see seasonal spikes during pre-harvest equipment checks, so forward-stocking 3–5 sets per workshop client is a prudent baseline.

Q2: Can we reuse the QR code from the original injector after rebuilding, or does the flow correction data shift significantly?
A: The QR code remains the ECU's reference for that cylinder position, but the rebuild alters the solenoid response characteristics. You must re-enter the same code after installation-the ECU cannot self-learn the new mechanical tolerances, and omitting this step introduces cylinder‑to‑cylinder deviation that shows up as uneven EGT readings.

Q3: How does this kit's valve seat alloy cope with high‑sulphur or biodiesel blends that are common in export markets?
A: The valve seat and half‑ball receive a hardened coating specifically formulated for low‑sulphur diesel. For markets using fuel with sulphur content exceeding 500 ppm or B20 blends, we recommend shortening the service interval by 25%, as the accelerated corrosion attacks the control valve sealing face before the nozzle shows wear.

Q4: We have seen elevated return‑fuel rates on freshly rebuilt injectors using other kits-what specific failure mode does this set address to prevent that?
A: High return flow post‑rebuild usually traces to incorrect command piston‑to‑bore clearance or a mis‑seated half‑ball. This kit supplies factory‑graded pistons and a matched valve set that eliminates the clearance variance, provided the fitter follows the orientation mark on the ball stem during assembly.

Q5: For a distributor offering a warranty on rebuilt injectors, what is the realistic field failure rate we should budget for with this consumable set?
A: Field data from workshops using genuine‑spec components indicates a first‑year failure rate below 3%, with most incidents attributable to external factors like contaminated fuel or incorrect torque application, not the consumables themselves. That figure assumes the fitter inspects the guide plunger for scoring before installing the new parts.

Q6: Is there a visual marker on the packaging or components that confirms this kit belongs to the 095000‑8340 family rather than the visually similar G3 variant?
A: Yes, the inner bag label carries the suffix "‑G2" adjacent to the OEM number, and the nozzle retaining nut has a distinct chamfer profile that differs from the G3 counterpart. Always confirm the injector body casting before opening the package to avoid fitment mismatches.
