DENSO 095000-7390 / 095000-6190 & 23670-30100 Injector Overhaul Set – Factory-Matched Wear Components For Common Rail Restoration

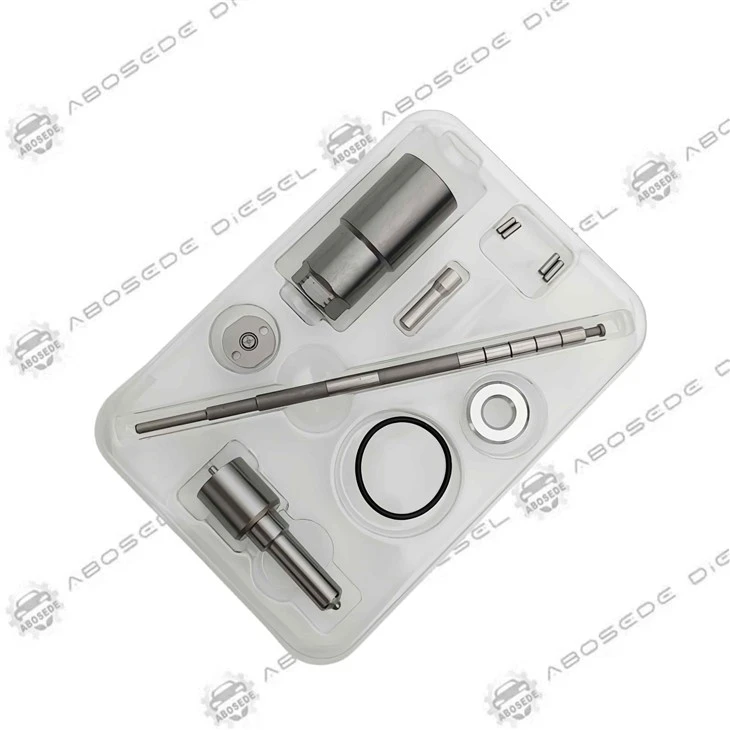

This reload kit addresses the finite operational life of internal metering components within DENSO G2 common rail injectors, specifically those carrying the manufacturing stamps 095000-7390 and 095000-6190, alongside Toyota's OE assembly code 23670-30100. Rather than exchanging the entire injector body-which often retains a serviceable solenoid and plunger-this assortment supplies the exact wearing parts required to reverse flow degradation and timing drift. The package centres on a fresh DLLA145P864 orifice plate, complemented by a replacement valve piston, metering spring, shim assortment, and the full suite of static seals and dynamic O-rings. Workshops executing this overhaul effectively reset the injector's hydraulic behaviour to a condition statistically indistinguishable from factory-fresh units, directly countering the effects of fuel-bound abrasives and thermal stress on the nozzle needle and control valve interfaces.

Every constituent element within this kit is gauged to DENSO's production release standards for the 095000-7390 injector variant. The supplied DLLA145P864 nozzle incorporates a precisely lapped needle-and-body fit, maintaining sac volume and orifice geometry that governs both pilot charge quantity and main event delivery. Complementing the nozzle is a replacement control piston and return spring, components whose mating surfaces dictate the pressure balance within the injector's hydraulic amplifier. The kit further bundles the high-pressure seal carrier, the half-ball check valve, and a set of copper compression gaskets dimensioned to the injector's insertion depth into the cylinder head. Critically, the included valve seat and nozzle retaining nut are machined to the correct thread pitch and clamping load specifications, ensuring that once torqued, the internal clearance between the needle and orifice plate remains within the 0.02–0.04 mm operational band. Substituting any of these parts with aftermarket equivalents that lack these specific clearances would inevitably shift the injector's flow coefficient, pushing correction values beyond the ECU's adaptive limits.

This overhaul set directly serves injectors removed from the Toyota 2KD-FTV powerplant, a 2.5-litre common rail diesel extensively deployed in Hiace vans, Hilux pickups, and certain Fortuner SUVs across global markets. The primary OE casting 23670-30100 appears on injectors bearing the DENSO factory codes 095000-7390 and 095000-6190, with additional cross-reference to Toyota service numbers 8976024852 and 8976024853. While the kit is expressly bundled for these references, the component geometry also accommodates a broader family of G2 injectors, including 095000-525#, 095000-593#, and 095000-776# variants, provided the nozzle code on the existing unit matches DLLA145P864. Prior to stripping the injector, workshops must verify the six-digit DENSO serial against the kit's application matrix-fitting this set into a body with a different nozzle holder geometry will alter the spill-to-delivery ratio, often manifesting as cranking difficulty or erratic idle immediately following reassembly.

Overhauling these injectors demands methodical cleanliness and rigid torque discipline, given that the common rail fuel system routinely sees internal pressures in the 1,600–1,800 bar bracket. Technicians should begin by marking each injector's cylinder assignment and recording the existing IQA correction code via diagnostic interface. After ultrasonic cleaning of the injector body, the retaining nut must be loosened using a dedicated socket to avoid deforming the thin-walled nozzle holder. Upon separation, carefully extract the needle and valve piston, inspecting the old nozzle seat for characteristic erosion rings-these indicate the primary leakage path responsible for reduced rail pressure retention during off-throttle conditions. During reassembly, the new control piston must drop freely into its bore under its own weight, confirming the absence of burrs or residual carbon; any resistance mandates re-cleaning. The nozzle retaining nut receives a staged torque application-typically an initial 35 Nm followed by a final angle-tightening step per the engine service bulletin-to preload the nozzle assembly without distorting the internal guidance bore. Post-installation leak-off testing at warm idle provides immediate validation: individual return volumes should cluster within 5–10 ml per minute, with any significant deviation indicating a valve seat that has not properly bedded.

For independent diesel specialists and fleet maintenance planners, this 095000-6190 repair package presents a clear financial argument when weighed against sourcing brand-new DENSO injectors or purchasing remanufactured exchanges. The metallic components-specifically the injector body, solenoid stack, and armature assembly-exhibit fatigue life that far exceeds the service interval of the hydraulic metering elements. By replacing only the nozzle, control valve, and sealing hardware, workshops retain the original housing's magnetic properties and plunger fit, eliminating the core surcharge typically associated with remanufactured units. This targeted approach effectively restores spray plume integrity and pilot injection accuracy, directly remedying the customer complaints that drive repair orders: excessive cranking time after hot soak, whitish smoke during cold start, and the tell-tale "knocking" signature of misfiring pilot events. Moreover, restoring atomisation to factory specifications contributes to lower particulate opacity during loaded acceleration, a meaningful advantage for operators subject to roadside emissions audits or periodic smoke testing under local commercial vehicle regulations.

Q1: We have an injector stamped 095000-7390 but the nozzle code is partially obscured. Can we still use this kit safely?
A: Proceed with caution. The nozzle code-typically DLLA145P864 for this family-must be positively identified before fitting. If the code is illegible, use the vehicle's VIN and engine variant to confirm the correct nozzle specification through Toyota's parts catalogue. Fitting this kit to an injector with a different nozzle holder (e.g., DLLA140P or DLLA150P series) will produce incorrect fuel delivery and likely trigger a P0200-series injector circuit malfunction code.

Q2: Does this overhaul set include the copper sealing washer for the injector-to-cylinder-head interface?
A: Yes, the kit contains a fresh copper compression gasket alongside all high-pressure O-ring seals. This washer must be replaced at every service to guarantee correct heat transfer from the injector nozzle to the cylinder head and to prevent combustion gas leakage past the injector bore-a common cause of rapid nozzle coking and degraded fuel economy.

Q3: What is the recommended procedure for cleaning injector bodies before installing new components?
A: Use an ultrasonic bath with a dedicated injector-cleaning solution at 60–70°C for a minimum of 20 minutes, ensuring the solenoid area remains dry or is protected from fluid ingress. After cleaning, blow all internal galleries with filtered compressed air. Avoid using wire brushes or abrasive media on the valve piston bore or the nozzle seat pocket, as surface scratching will compromise the hydraulic seal of the new components.

Q4: Is it mandatory to replace all injectors in the set if only one is showing high leak-off?
A: Not mandatory, but commercially prudent. Rebuilding a single injector while leaving others with comparable mileage on the original wear components creates an imbalance in correction values. The ECU compensates, but the spread across cylinders often widens, leading to uneven combustion and a persistent vibration. Most workshops recommend overhauling all four injectors simultaneously to restore uniform cylinder balancing.

Q5: Can this repair kit address the "black death" carbon buildup around the injector bore?
A: The kit resolves the internal hydraulic causes of poor combustion, which contributes to soot generation. However, existing carbon buildup on the cylinder head bore must be mechanically removed using a reaming tool before installing the new injector and copper gasket. Failure to clean the bore will prevent the new gasket from seating properly, allowing combustion gases to blow past-a condition known as "chuffing"-which accelerates nozzle damage and contaminates engine oil.

Q6: How do we store unused components from this kit for future use?
A: The nozzle and valve piston are supplied with a thin protective oil film. Store these parts in their sealed packaging, away from moisture and dust, at an ambient temperature between 10–30°C. Do not remove components from their protective sleeves until the moment of installation, as airborne particles as fine as 5 microns are sufficient to obstruct the metering orifices and induce premature sticking.
