095000-7140 Denso Injector for Hyundai D4GA Diagnostic Replacement
1. Product:095000‑7140
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

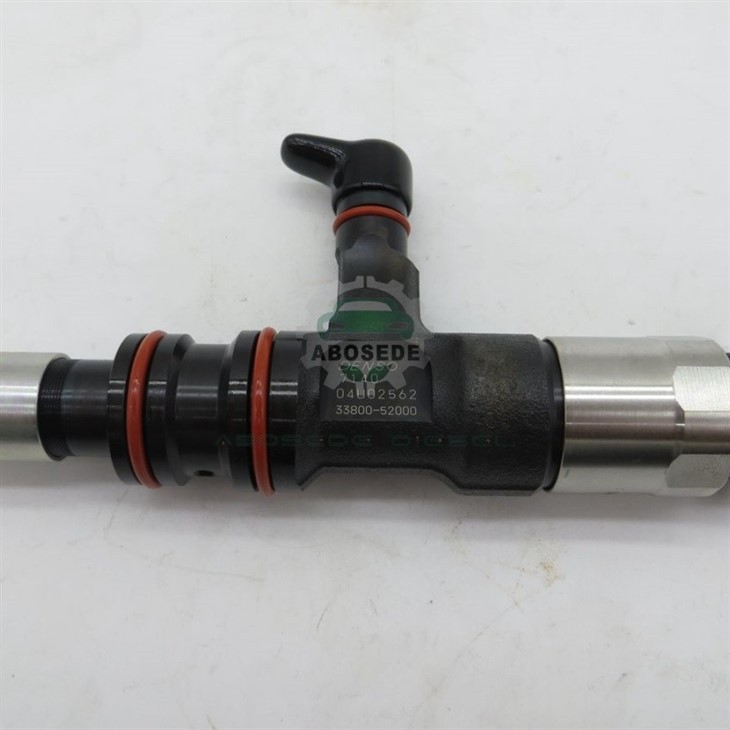

This Denso common rail injector, part number 095000-7140, is the assembly you reach for when a Hyundai D4GA-powered truck rolls into the bay with a P0087 or a cylinder-balance fault that follows the injector after a swap. It carries the OEM cross-reference 33800-52000 and is built for the D4GA 3.9L four-cylinder diesel found in Mighty, Mega, HD65, and HD75 chassis. Rather than a catalogue entry, this is a working unit for technicians who have already ruled out rail pressure sensor drift and suction control valve sticking, and need a common rail injector that will accept the injector compensation code and hold pilot injection stability across the duty cycle.
🔧 Solenoid Response and Hydraulic Trim Data
The 095000-7140 is a G3-generation Denso solenoid injector with a control valve that must close within the ECU's expected energizing time window. On a bench with an EPS 815 or comparable tester, a healthy unit returns an idle delivery that stays within the correction band the D4GA ECU can absorb through injector coding. The nozzle is a DLLA152P989 type, and the leak-off at 1600 bar should not exceed the threshold that triggers a P02E1-style cylinder balance deviation. What matters at the counter is not the marketing claim-it is whether the return flow curve matches the ECU's zero-delivery expectation when the rail pressure stabilizes at 250 bar during the post-injection phase.
🛣️ Chassis Coverage and ECU Calibration Boundaries
| Platform / Engine | Engine Code | Injector Position | Calibration Note |
|---|---|---|---|
| Hyundai Mighty / HD65 | D4GA | All four cylinders | Requires compensation code entry via GDS or equivalent |
| Hyundai Mega / HD75 | D4GA | All four cylinders | Verify rail pressure sensor part number before coding |
| Hyundai HD35 | D4GA | All four cylinders | Confirm Euro IV calibration file matches donor ECU |
| Cross-reference | 33800-52000 | - | Some aftermarket units ship without a readable IMA code |
🔩 Installation After a Cylinder-Balance Fault
Never install this injector without first extracting the correction code from the new unit and entering it through GDS or a compatible J2534 pass-through device. The D4GA uses the code to trim injection duration per cylinder; skipping this step leaves the ECU running the old adaptive values, and the misfire will persist even with a mechanically sound injector. Use new combustion sealing washers and the high-pressure pipe torque sequence from the Hyundai service data-reusing the old pipe is the most common cause of a fuel dilution complaint after replacement. Before cranking, confirm rail pressure builds to 180 bar within the specified cranking window; a slow build points to a leak-off issue at the injector inlet fitting, not the injector itself.
💡 When to Replace the Injector Instead of the Pump
A D4GA with a P0087 and a cylinder 3 balance fault that improves when the injector connector is unplugged is telling you the control valve is leaking internally, not that the HP pump has failed. The common rail injector is the cheaper and more diagnostically sound first move when leak-off testing shows one cylinder returning fuel at twice the rate of the others. The pump usually announces itself with metal contamination in the rail or a pressure regulator that cannot hold idle pressure-not with a single-cylinder imbalance. Buying a remanufactured or aftermarket OEM replacement injector makes sense when the core body is clean and the solenoid resistance reads within spec; if the nozzle is carbon-fouled beyond cleaning, the assembly is the only reliable path.
❓ FAQ for Diagnostic-First Buyers
Q1: Cylinder 2 balance reads +3.5 mm³ while others sit within ±0.8, and leak-off is normal. Is the 095000-7140 still suspect?
A: Swap the injector to another cylinder first. If the balance fault follows it, the nozzle is not atomizing correctly at pilot quantities. If it stays, look elsewhere.
Q2: The compensation code label is illegible. Can I install without coding?
A: No. On D4GA, skipping the IMA code leaves the ECU running old trim values. It may idle, but pilot timing will be offset and a roughness code returns under load. Get a readable code before fitting.
Q3: How do I spot a relabeled 095000-7140 before installation?
A: Check solenoid resistance against Denso G3 spec and inspect the nozzle for uniform laser-drilled holes. Counterfeits often show a compensation code sticker mismatched to the body serial, with erratic low-pressure leak-off.
Q4: Truck runs fine cold but misfires after 20 minutes. Injector or just the valve?
A: Heat-sensitive misfire on D4GA usually means the control valve loses hydraulic preload when hot. If warm leak-off is excessive on that cylinder, the valve group is worn. Replace the valve only if the seat is undamaged; otherwise fit the complete assembly.
Q5: Will this fit a Mega that originally ran a 33800-52000 with a different suffix?
A: Confirm engine code and Euro level from the VIN, not the cab badge. The 095000-7140 cross-references to 33800-52000, but revision suffixes affect ECU compatibility-a physically fitting unit can still fail coding.
