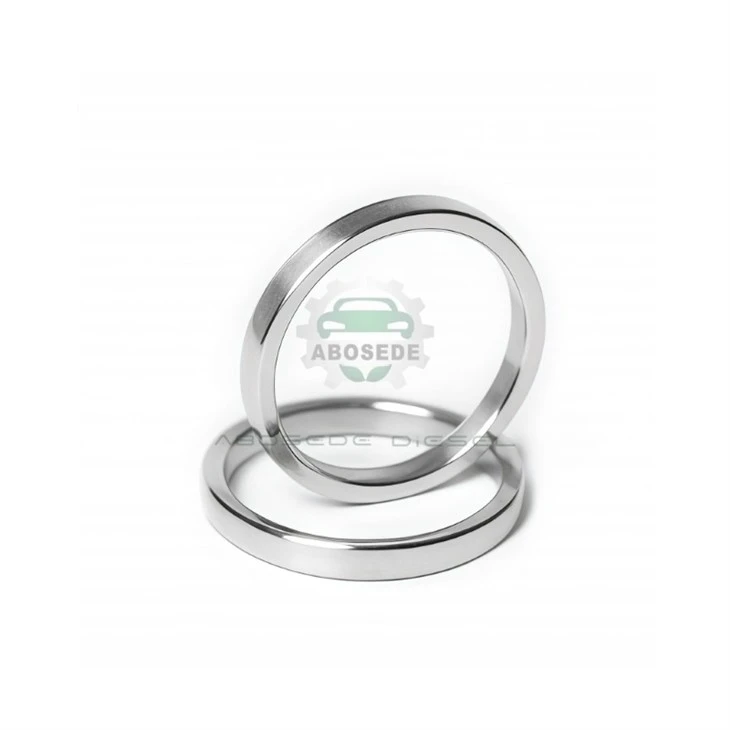

Cummins XPI Series Type I Adjustment Shim – Precision Calibration Spacer

The Cummins XPI Series Type I Adjustment Shim is a precision-ground micro-spacer engineered for high-pressure common rail (HPCR) fuel injectors. Operating at pressures exceeding 2,500 bar, this shim dictates needle lift and spring pre-load, directly influencing injection timing and fuel atomization. For diesel repair specialists, selecting the correct adjustment shim is a calibrated engineering decision that determines injector performance, emissions compliance, and fuel economy. This component meets OEM replacement specifications for heavy-duty Cummins platforms, offering the dimensional accuracy required for professional injector calibration workflows.

Manufactured from high-alloy chromium-vanadium tool steel with cryogenic tempering, the shim achieves 63-66 HRC surface hardness, resisting deformation under cyclic combustion loads. Thickness gradients range from 0.80 mm to 1.95 mm, available in 0.005 mm micro-steps. Dimensional parallelism must not exceed 0.002 mm, as variance alters hydraulic fluid dynamics within the injector body. The component profile-typically B28/B30-interfaces directly with the solenoid assembly and needle valve spring stack, making precise spacer gasket selection essential for correct armature lift calibration. The shim's metallurgical composition ensures consistent performance across extreme temperature fluctuations commonly encountered in engine compartments, maintaining its dimensional stability throughout the injector's operational life.

This adjustment shim supports Cummins ISX15, QSX15, ISL9, and ISC8.3 platforms, dominant in North American Class 8 fleets and vocational applications. It also cross-references to Scania DC13/DC16 engines sharing the XPI architecture. Core injector part numbers include 2872544, 4307475, 4327072, 5491515, and 2488244. The shim integrates with G4-32 repair kits and is essential for rebuilders performing precise lift adjustments on heavy-duty diesel fuel systems. Workshop managers should verify compatibility through injector serial number verification, as production variants may require specific thickness ranges to accommodate manufacturing tolerances accumulated during engine assembly.

Within the common rail architecture, the adjustment shim establishes baseline needle opening pressure across all test zones: Full Load (VL), Pre-injection (VE), Emission Point (TL), and Idle Speed (IL). Incorrect thickness shifts injection characteristics beyond the ECU's adaptive range. A thin shim reduces spring pre-load, causing premature opening at idle and poor atomization. Excessive thickness delays needle lift, resulting in over-fueling and increased particulate emissions. Proper thickness shim selection ensures the HPCR system maintains precise fuel quantity for each event, supporting fuel economy and regulatory compliance. Field data indicates that improperly shimmed injectors contribute to approximately 15% of all drivability complaints in high-mileage heavy trucks, making this small component disproportionately significant to overall engine health.

Never stack multiple thin shims to achieve target thickness-this introduces structural compliance and elastic deformation under rail pressure. Use a single spacer gasket machined to the calculated thickness. Inspect the injector bore for uneven seating before insertion. Set armature lift to specifications, typically 50 μm, measured with a digital micrometer. Torque the nozzle cap to 70-75 N·m for sealing integrity. Always perform post-maintenance flow audits on a test bench to validate injection volume across all test points. Technicians should also document the original shim thickness during disassembly, as this baseline measurement often provides valuable diagnostic insight into wear patterns affecting other injector components.

Q1: How does shim selection affect injector service life?
A: Correct shim maintains optimal spring preload, reducing needle and valve wear, extending service intervals beyond 500,000 miles in over-the-road applications.

Q2: What symptoms indicate an incorrect XPI shim?
A: Erratic idle, white smoke at cold start, and fuel economy decline. Bench testing reveals injection volume deviation across TP2 and TP3 load points.

Q3: Can the adjustment shim be reused during rebuilds?
A: No. Professional practice mandates replacement each rebuild. The material compresses over time, introducing tolerance stack errors.

Q4: Why is this shim critical for Euro 6/EPA compliance?
A: It stabilizes pilot injection quantity, directly affecting NOx and particulate formation. Incorrect thickness shifts the injection curve beyond opacity limits.

Q5: What inventory strategy do you recommend for workshops?
A: Stock a graded set covering 0.80–1.95 mm in 0.005 mm steps for immediate availability and precise calibration across varying injector wear levels.
