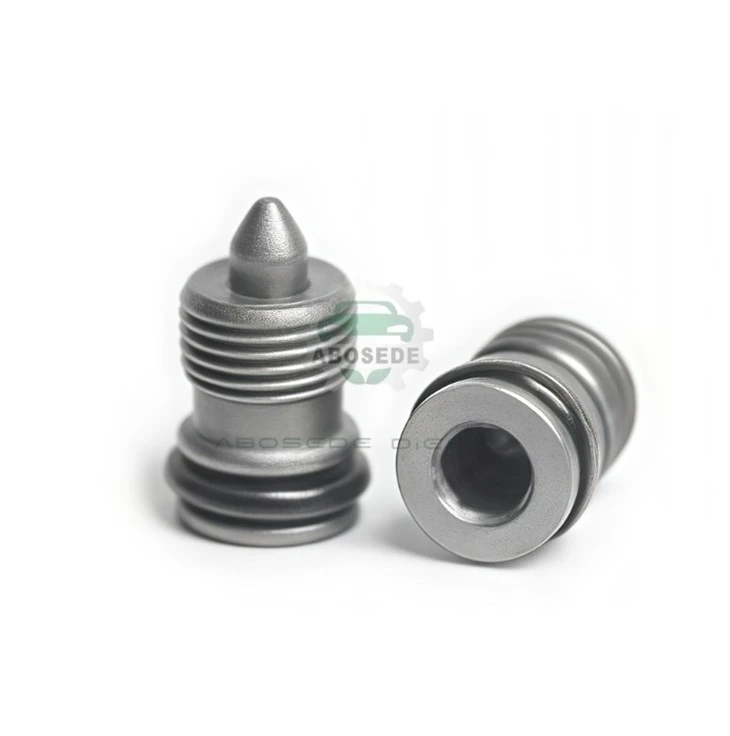

Cummins XPI Series-II Solenoid Valve Preload Adjustment Screw

This precision-engineered Solenoid Valve Preload Adjustment Screw is a mission-critical service component specifically dimensioned for the Cummins XPI (Xtreme Pressure Injection) Series-II fuel system. Designed to restore factory-specified actuator response and hydraulic balance, this adjustment screw directly governs the valve bias spring preload within the high-pressure injector stack. When rail pressures exceed 2,000 bar, even minute deviations in this setting compromise injection timing and fuel quantity accuracy . This service part ensures your rebuilds deliver consistent, predictable performance across the full spectrum of Cummins heavy-duty applications.

This adjustment screw is a non-negotiable wear-and-replace item during a thorough XPI injector overhaul. It precisely dictates the compression force exerted on the control valve spring, which modulates the movement of the control valve member within the injector body . Correct preload is essential for achieving the correct armature lift and electromagnetic response consistency. This part is directly compatible with the following extensive list of XPI injector assemblies: Injector 4307452, Injector 4359204, Injector 5594305, Injector 5572336, Injector 4327072, Injector 2872331, Injector 2872765, Injector 2897414, Injector 5579401, Injector 2872075, Injector 5579403, Injector 2872127, Injector 5579405, Injector 5579407, Injector 2872068, Injector 5579409, Injector 5579411, Injector 2872621, Injector 5579413, and Injector 4307045. Always verify the existing spring condition and confirm the preload setting using a calibrated torque wrench during reassembly to account for variations in solenoids and springs .

The XPI Series-II fuel system is the backbone of Cummins' most demanding on-highway and off-highway platforms. This preload adjustment screw is integral to servicing engines found in Freightliner, Peterbilt, Kenworth, and International trucks equipped with ISX15 and QSX15 powerplants. It is also utilized in heavy construction equipment and agricultural machinery where the Cummins XPI system provides the necessary power density and fuel efficiency . For workshops specializing in Class 8 truck maintenance or industrial diesel repair, stocking this component is vital for ensuring the hydraulic diagnostic test results align with factory parameters after an injector rebuild.

Accessing the preload adjustment device requires a specific approach; the adjustment passage is often oriented at an acute angle to the control valve longitudinal axis, necessitating the use of a specialized adjustment tool through the barrel portion of the injector to reach the head portion of the screw . During installation, setting the correct preload involves more than just tightening; it requires precise measurement. Turning the solenoid valve spring screw clockwise increases the injection volume by increasing preload, while counter-clockwise adjustments decrease it, typically allowing for 45-degree micro-adjustments to fine-tune the main injection quantity . Rebuilders must adhere strictly to the torque specifications and ensure the screw is free from deformation or corrosion to prevent unstable operation and repeat failures .

In the context of common-rail system repairs, the solenoid preload adjustment is often the defining factor between a successful rebuild and a costly comeback. This adjustment screw directly addresses hydraulic instability issues, acting as the primary calibration point for injector response time. Worn or incorrectly set preload leads to rising fuel return flow, hard starting, and unstable idle . Using a genuine preload adjustment screw eliminates variables introduced by worn threads or fatigued metals, restoring the injector's ability to maintain precise fuel delivery and reliable cold-start performance. This part is essential for achieving accurate results on Bosch and Delphi test benches, ensuring the injector passes stringent flow and back-leakage tests .

Q1: Can this adjustment screw be reused if it is undamaged?
A: While physical damage may not always be visible, professional rebuilders consistently recommend replacing the preload adjustment screw to eliminate variables. Thread fatigue and micro-corrosion can alter the preload force, affecting injector performance and long-term reliability.

Q2: How does this screw affect injector return flow?
A: Incorrect preload directly impacts the movement of the control valve, leading to excessive leakage from the high-pressure circuit. A properly set screw ensures the valve seats correctly, minimizing return flow and maintaining rail pressure stability .

Q3: What is the procedure for setting the preload correctly?
A: Correct procedure involves installing the injector in a test fixture with high-pressure fuel flowing, using a specialized tool to access and rotate the screw to achieve specified flow rates (TP2 & TP3) as measured on a diesel test stand .

Q4: Is this part specific to any particular electronic control module (ECM) calibration?
A: No, this is a mechanical calibration component. However, its condition directly dictates how effectively the ECM's pulse-width modulated (PWM) signal controls the injector, bridging the mechanical and electronic aspects of the fuel system .

Q5: What are the signs of a failed or incorrectly adjusted preload screw?
A: Key symptoms include erratic injection quantity variations between cylinders, difficult cold starts, excessive white smoke at idle, and a noticeable increase in engine noise and vibration due to inconsistent ignition timing.
