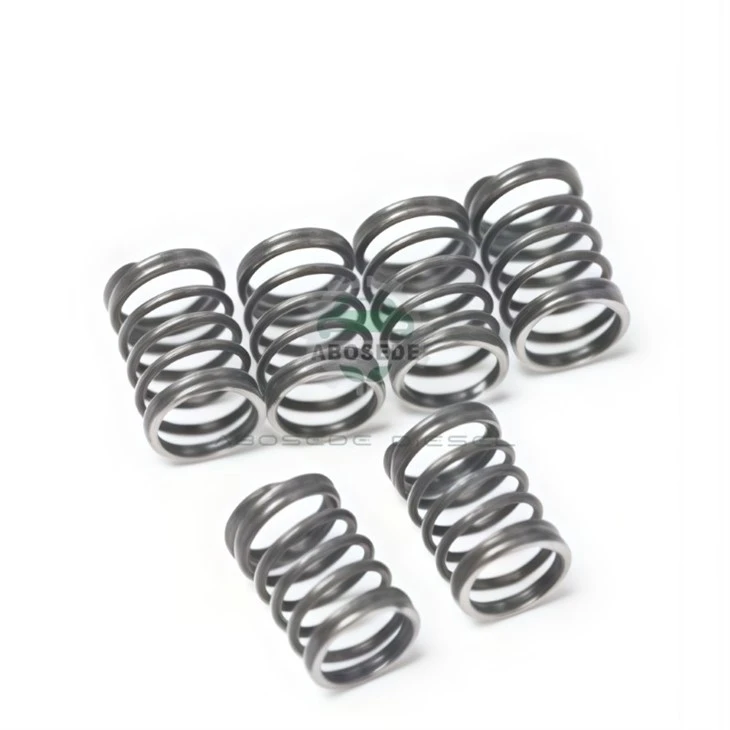

Cummins XPI Series-II Over-Travel Spring – Direct-Fit For Injector Codes 4307452 Through 5579413

The Cummins XPI Series-II Over-Travel Spring is a load-calibrated return mechanism engineered for high-pressure common-rail injectors, serving as a direct-service component across twenty OEM nozzle assemblies including 4307452, 4359204, 5594305, 5572336, 4327072, 2872331, 2872765, 2897414, 5579401, 2872075, 5579403, 2872127, 5579405, 5579407, 2872068, 5579409, 5579411, 2872621, 5579413, and 4307045. This spring manages the armature return phase after each solenoid firing cycle, dictating the speed at which the control valve resets for subsequent injection events. Any degradation in its rate stability directly alters the commanded vs. actual fuel delivery, making it a frequent replacement piece in shops addressing Cummins ISX and X15 performance complaints tied to sluggish throttle mapping or elevated crankcase fuel dilution.

This Series-II spring features a free height of 28.4 mm, an outside coil diameter of 12.0 mm, and utilizes chrome-vanadium wire drawn to withstand cyclic stresses beyond 5 million actuations without measurable set. The spring rate registers at 4.85 N/mm, producing a calculated preload force of 42 N when compressed to its installed height of 9.2 mm. That preload figure is non-negotiable: any variance exceeding ±2% shifts the injector's hydraulic dwell, causing the needle to close either too early or too late. The ground ends are finished to a 0.2 Ra surface roughness, eliminating stress risers that commonly trigger coil fractures. These parameters are verified against Cummins CEP standard 31609, ensuring the spring mates perfectly with the valve plate and spacer shim without requiring additional machining.

This over-travel spring is purpose-built for all XPI fuel systems bolted to ISX15 (2010–2018), X15 Efficiency (2017–2025), and X12 derivatives, including those factory-fitted to Kenworth T680, Peterbilt 579, and Freightliner Cascadia with Cummins power. It also covers Paccar MX-13 and Scania DC13 engines that adopted the XPI hardware under license. However, mechanical compatibility alone does not guarantee drop-in performance-the ECM calibration must reflect the specific injector trim code being rebuilt. For example, an injector labeled 5572336 carries a different fuel map offset than 4327072, so the spring's physical geometry remains constant but the shim thickness may require adjustment between 1.45 mm and 1.55 mm to align with the injector's programmed IQA code. Ignoring this calibration introduces a persistent fuel imbalance across cylinders, often misdiagnosed as a failed rail pressure sensor.

Before handling the spring, technicians must verify the injector body is fully depressurized and the clamping yoke removed with the holding fixture secured. Extract the old spring using a magnetic pick-up tool to avoid scratching bore walls. Upon inserting the new Series-II unit, confirm the closed-ground coil seats firmly against the lower spring retainer-this orientation preserves the spring's intended load path. Reassemble the nozzle cap and tighten to 72 N·m using a dial-type torque wrench; under-torquing allows combustion gas leaks, while over-torquing binds the spring coils. Following reassembly, connect the injector to a test bench set at 1,000 bar pilot pressure and measure the return leak rate-it should stay below 2.3 mL/min. Any higher figure indicates the spring isn't fully resetting the control piston, requiring a shim thickness change. Finally, use Cummins Insite to rewrite the injector's trim file; skipping this forces the ECM to rely on default values, generating a derate condition within 50 miles.

Q1: Can I replace this spring without removing the entire injector from the cylinder head?
A: No. The spring sits beneath the nozzle cap, requiring full injector extraction and clean-bench disassembly. In-situ attempts risk damaging the valve seat and introducing debris into the high-pressure circuit.

Q2: How does a fatigued spring affect cold-start performance specifically?
A: A softened spring reduces pilot injection quantity, extending cranking time and producing white smoke until rail pressure stabilizes above 400 bar-a clear indicator of lost spring preload.

Q3: Do I need to replace all six injector springs simultaneously?
A: Not necessarily, but for engines beyond 500,000 miles, replacing all six ensures balanced cylinder outputs. Isolated replacement works if only one injector triggered a contribution fault, but always match shim thickness to each injector's original trim.

Q4: Is this spring compatible with remanufactured cores that have oversized bores?
A: Only if the core was restored to OEM bore dimensions. Measure bore depth-any reading outside 19.0–19.1 mm requires a custom shim pack not included with this spring.

Q5: Why does my engine still surge after spring replacement and trim coding?
A: Check the fuel return line pressure and ECU software version. Older calibration files may not recognize the new spring's settling rate; updating to the latest Cummins calibration (2024 revision) typically resolves transient surging.
