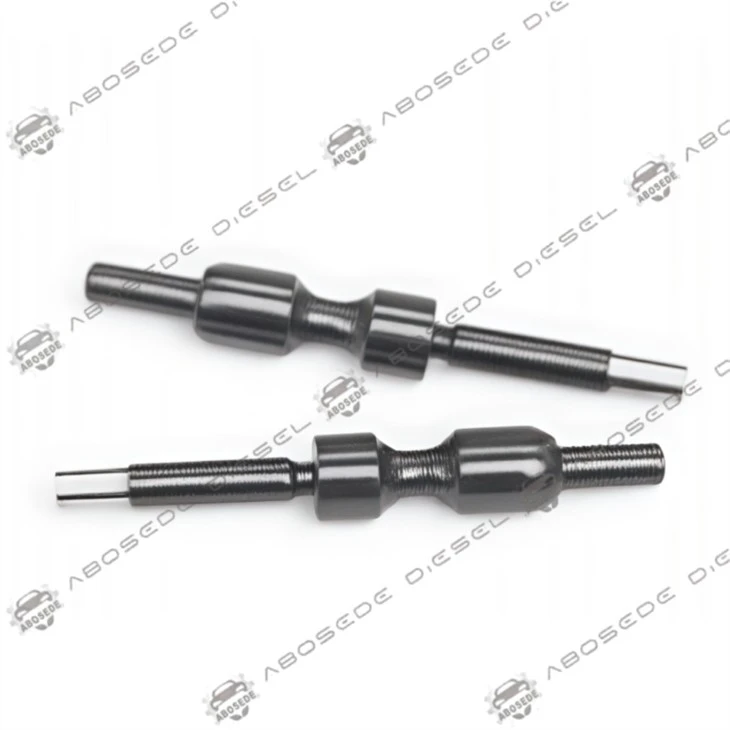

Cummins XPI Series-II Armature Core – Direct Replacement For 4307452, 4359204, 5594305 & More

Precision fuel metering within contemporary Cummins XPI common rail systems relies upon the electromagnetic behavior of the armature core assembly. This component functions as the primary moving element inside the injector solenoid valve, translating each ECU injection pulse into mechanical lift that governs fuel delivery timing and injected quantity across all combustion events. The Cummins XPI Series-Ⅱ Armature Core services injector models 4307452, 4359204, 5594305, 5572336, 4327072, 2872331, 2872765, 2897414, 5579401, 2872075, 5579403, 2872127, 5579405, 5579407, 2872068, 5579409, 5579411, 2872621, 5579413, and 4307045, delivering factory-fresh solenoid response to correct fuel quantity deviations without necessitating complete injector replacement.

System pressure resistance exceeds 2000 bar, with the armature surface specifically treated to minimize magnetic hysteresis and eddy current losses that compromise performance over time. Dimensional tolerances on the guide shaft and contact face are held to ±0.002mm, ensuring interference-free fitment across all listed injector bodies. The working air gap (lift) and magnetic flux density directly determine injector opening duration and fuel return volumes. For XPI Series-II applications, armature lift is set to a 50μm baseline during assembly, with further micro-adjustments achieved through the solenoid valve spring screw-each 45-degree rotation modifies main injection volume, affecting test points TP2 & TP3 to align with specific engine calibrations.

Fitment Note: This armature core is specifically profiled for the XPI Series-II injector architecture-distinct from early ISX open-rail or CAPS systems. Cross-referencing your engine serial number (ESN) against the listed OE injector numbers is recommended to confirm absolute match.

Before installation, technicians should verify solenoid coil resistance, typically ranging from 12 to 16 ohms, to rule out external electrical faults. During reassembly, the nozzle cap receives torque application of 70–75 N·m prior to securing the solenoid valve. Free axial movement of the armature core must be confirmed; any sticking indicates worn guide bores or compromised return springs. Following armature replacement and lift shim positioning, dynamic validation must confirm acceptable injection volumes at TP1 (idle) , TP2 (full load) , and TP4 (partial load) . A critical post-service verification involves pressure retention testing-rapid rail pressure bleed-down after shutdown, despite acceptable test injection volumes, points to a compromised armature seating face or control valve. UV-curable adhesive should be applied to the solenoid spring screw after final adjustments to prevent back-out.

Within high-mileage commercial fleets, worn armature cores rank among the primary drivers of injector return fuel creep and single-cylinder imbalance. These conditions place excessive load on the DPF and typically reduce fuel economy by 3–5%. Selecting the dedicated XPI Series-Ⅱ Armature Core rather than undertaking a full injector replacement lowers parts expenditure by roughly 60–70%, while directly addressing the root cause of inconsistent metering. This component proves central to sustaining the ultra-high-pressure injection accuracy demanded by 4th-generation common rail architectures. Minor armature lift variations manifest as noticeable power loss or increased exhaust opacity. For diesel workshops, maintaining inventory of this essential service part ensures rapid turnaround for the most frequent XPI injector failures-specifically the 68% of performance complaints attributed to sealing and solenoid degradation rather than terminal nozzle damage.

Q1: Is it possible for a worn armature core to allow an injector to pass bench volume testing yet still produce drivability complaints?
A: Absolutely. Bench setups often fail to capture armature response lag or excessive closing delay, leading to inconsistent pilot injection and suboptimal cold-start behavior.

Q2: How many operating hours can a fleet operator expect from this armature core in an ISX15 over-the-road application?
A: Under typical highway duty cycles, the armature core generally maintains factory specifications through 6,000–8,000 hours, beyond which electromagnetic hysteresis and mechanical wear induce measurable injection drift.

Q3: Does fitting this armature core require any ECM trim code updates or programming actions?
A: Although mechanical function is restored through physical replacement, fuel trim codes often need recalibration on the engine ECM to accommodate the new component's specific electromagnetic properties and sustain optimal EUI performance.

Q4: What distinguishes the XPI Series-Ⅱ armature from earlier ISX open-nozzle injector hardware?
A: The XPI design operates at elevated rail pressures (2000bar+) and incorporates a compact solenoid architecture, demanding a specific magnetic armature with tighter lift tolerances and superior flux conductivity.

Q5: Why might armature cores fail prematurely in engines running biodiesel blends?
A: Biodiesel frequently lowers fuel lubricity and increases deposit formation within the injection system, accelerating wear on armature guide surfaces and potentially inducing sticking, which draws excessive current and overheats the solenoid coil.
