Cummins XPI Series-I Overhaul Kit 5473254EF – Precision Rebuild Solution For Common Rail Injectors

The Cummins XPI Series-I Overhaul Kit 5473254EF is an OEM-grade consumable set engineered for the comprehensive refurbishment of high-pressure fuel injectors within the XPI (eXact Precision Injection) common rail system. This kit addresses the critical wear mechanisms inherent to ultra-high-pressure diesel injection-namely seal fatigue, thermal degradation, and extrusion damage-providing repair shops with a complete suite of components to restore injector performance to factory flow specifications. Instead of replacing entire injector assemblies, this overhaul kit enables a cost-intensive yet highly effective service strategy, targeting the primary failure points that compromise atomization quality and rail pressure stability in heavy-duty Cummins engines.

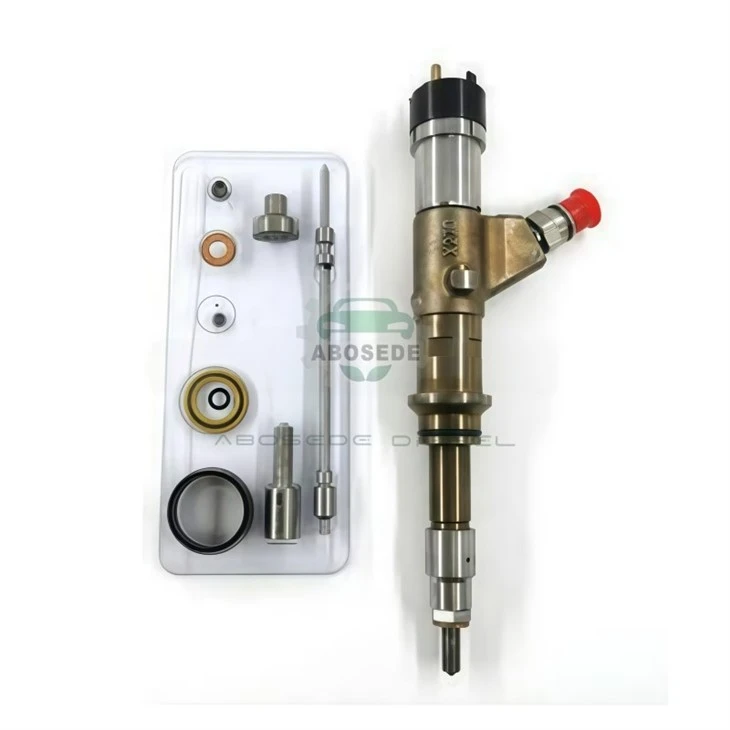

The 5473254EF overhaul kit is exclusively dimensioned for Series-I XPI injector platforms, incorporating all high-tolerance sealing elements required for a single injector teardown and rebuild. The package includes critical items such as FKM-based high-pressure O-rings, reinforced PTFE anti-extrusion backup rings, solenoid cap sealing washers, and specialized control cavity isolators. These components are manufactured to strict dimensional tolerances, with a finish quality that ensures perfect mating with the injector body's precision-ground grooves. The kit is designed to withstand sustained rail pressures characteristic of the XPI system, maintaining physical integrity under extreme thermal cycling. Technicians should verify the presence of all gaskets and sealing washers, as internal bypass leaks often originate from the degradation of these specific elements, leading to a measurable drop in injection pressure and increased return fuel volume .

This overhaul kit is specifically calibrated for the heavy-duty ISX15 and X15 engine families-predominantly the CM2250 and CM2350 control module variants-that utilize the XPI fuel system architecture . It is a direct service solution for on-highway Class 8 tractors, vocational trucks, and high-horsepower industrial power units operating under variable load cycles. The 5473254EF is not a universal repair item; it is structurally incompatible with older CAPS or mechanically governed fuel systems, making correct application critical. For workshop managers and parts distributors, this kit targets engines where injector performance degradation manifests as hard cold starts, uneven idle, or elevated soot loads impacting the DPF, confirming the necessity of a system-level approach to fuel system maintenance .

Service professionals must adhere to a stringent installation sequence when utilizing the 5473254EF, as improper handling of the delicate sealing surfaces is a leading cause of premature re-failure. Prior to assembly, all injector bores in the cylinder head must be meticulously cleaned of carbon deposits and old sealant. Lubrication of the new PTFE seals with clean diesel fuel is essential to prevent rolling or shearing during insertion . The tightening torque for the injector hold-down clamp and the high-pressure fuel line connections must be rigidly observed, typically within the range of 17–19 N·m for internal solenoid cap components, to avoid distorting the new sealing elements . Post-installation, the fuel system must be primed and purged of air-fuel filters should be installed dry and the priming pump cycled-before cranking the engine to prevent dry-start scoring, a critical step often overlooked in standard shop procedures .

Q1: How does the 5473254EF kit differ from a universal O-ring set for common rail injectors?
A: This kit is engineered specifically for the XPI's unique high-pressure architecture. Generic O-ring sets often lack the necessary PTFE anti-extrusion rings and high-elasticity FKM compounds required to withstand the XPI's 2000+ bar pressure spikes, leading to rapid seal blow-by and immediate performance loss .

Q2: If I rebuild an injector with this kit, do I need to recalibrate the injector trim code?
A: Yes. Disassembly alters the internal mechanical clearances of the control valve. Re-entering the correct trim code via the ECM is mandatory to compensate for these minute variations and ensure consistent fuel delivery across all cylinders .

Q3: Is this overhaul kit suitable for rebuilds targeting the X15 Efficiency or X15 Performance series?
A: While the kit is physically compatible with X15 engine family injectors, the service life heavily depends on the duty cycle. For severe service applications with shorter oil drain intervals, the use of this kit is standard, but always verify part numbers against the engine's ESN to avoid fitment issues .

Q4: What are the trade-offs between using this overhaul kit versus purchasing a remanufactured injector?
A: The primary advantage is cost control; a "hard parts" replacement (nozzle/plunger) is usually needed for advanced wear, but the 5473254EF kit addresses seal failures that account for 70% of performance complaints, offering a low-cost repair alternative to a fully remanufactured core .

Q5: What are the telltale signs that an XPI injector needs this kit rather than a fuel filter change?
A: Filter changes won't resolve mechanical bypass. Look for a rising fuel level in the oil pan, unstable rail pressure at idle (visible on diagnostic tools), and excessive return fuel flow-all indicators of internal seal failure addressed by this overhaul kit.
