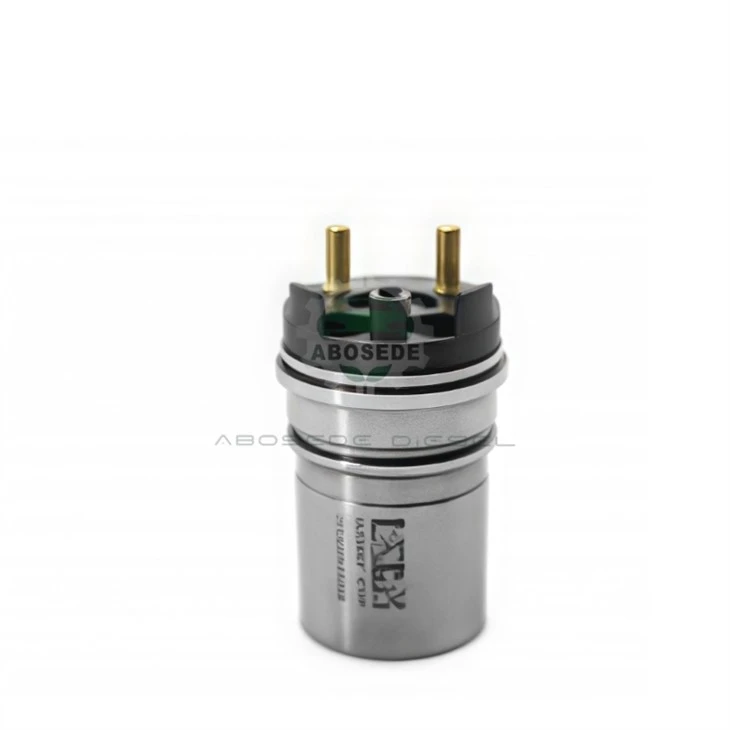

Cummins XPI Series - I Type Solenoid Valve

The Cummins XPI Series - I Type Solenoid Valve is a precision electromagnetic actuator engineered specifically for the XPI (Xtra Pressure Injection) common rail fuel system. This high-response component converts ECM electrical signals into precise mechanical motion, governing fuel metering, injection timing, and multi-pulse strategies across ISX15, QSX15, and X15 heavy-duty engines. For diesel workshops and parts distributors, understanding this I-Type variant is critical for accurate diagnostics and reliable system restoration under extreme load conditions.

The I-Type solenoid valve features a unique armature stack and coil geometry delivering faster magnetic flux rise time than earlier generations, enabling consistent injection control at rail pressures reaching 2,500 bar (36,300 psi). Key technical parameters for workshop verification: coil resistance 0.5–1.2Ω (temperature-dependent), armature lift 50μm, and spring preload ensuring closing response within 0.3 milliseconds after ECM command. The electrical connector incorporates a hermetically sealed interface preventing moisture ingress and terminal corrosion. Replacement units must include IMA (Injector Metering Adjustment) coding compatibility to maintain correct cylinder balancing and exhaust aftertreatment performance.

This I-Type solenoid valve is deployed across Cummins XPI-series fuel injectors serving: ISX15 (CM870, CM871, CM2250, CM2350), QSX15, and X15 Performance Series used in heavy trucks, mining equipment, agricultural tractors, and generator sets. OEM part references include 4358667, 2872866, 4954476, and 4307475-each correlating to specific injector bodies and calibration families. Verify compatibility with injector part numbers such as 5594305, 2872544, 5579415, or 2897320, as electrical impedance and hydraulic flow coefficients vary between early and late-model XPI generations. Ensure certification for ULSD and B20 biodiesel blends to avoid premature seal degradation.

Strict cleanliness and torque adherence are mandatory. Clean the injector bore and high-pressure fuel lines to eliminate particulates that cause abrasive wear on precision mating surfaces. Apply 13–25 N·m torque on the solenoid retaining cap; over-torquing distorts the valve body, altering internal clearances and causing abnormal return fuel flow. The armature lift shim must be precisely set within 50μm-a 5μm deviation shifts injection quantity by 2–3% at full load. After assembly, program the IMA trim code into the ECM using Cummins Insite software. Skipping this calibration causes cylinder-to-cylinder variation, rough idle, elevated EGT, and compromised DPF regeneration due to incorrect post-injection timing.

The I-Type solenoid valve is among the most cost-effective replacements when addressing XPI faults, as solenoid failure often mimics expensive injector body or high-pressure pump issues. Key failure indicators include SPN 651–656 fault codes, excessive return fuel flow exceeding 75ml/min during crank tests, and rail pressure instability failing to track ECM commands. A worn solenoid causes cylinder imbalance, white smoke at idle, and engine oil dilution from incomplete combustion-conditions that accelerate bearing wear and catastrophic failure if ignored. Stocking pre-calibrated solenoid assemblies reduces diagnostic time and eliminates on-site flow bench requirements, directly improving first-time fix rates and reducing comeback labor costs.

Q1: Can I replace a single solenoid valve, or must I replace the entire injector?
A: Yes, the solenoid is serviceable separately on most XPI injectors. For engines over 500,000 miles, whole injector replacement is recommended to maintain uniform cylinder performance.

Q2: What causes solenoid valve failure in XPI systems?
A: Leading causes include fuel contamination (water and abrasives causing coil shorts), voltage spikes from alternator issues, and return spring fatigue after extended high-cycle operation.

Q3: How do I verify the correct IMA calibration code?
A: The IMA code is laser-etched on the new valve body or packaging. Enter this 6–8 digit code via Cummins Insite during ECM programming to match fuel flow characteristics.

Q4: What warranty applies to aftermarket vs. OEM solenoid valves?
A: OEM parts typically offer 12-month warranty. ISO-certified aftermarket alternatives provide comparable coverage (6–12 months) at 20–40% cost saving with test bench certification.

Q5: How does a failing solenoid affect DPF regeneration?
A: An unreliable solenoid cannot deliver precise post-injection pulses to raise exhaust temperatures for soot oxidation, leading to incomplete DPF regeneration, rapid soot accumulation, and eventual DPF blockage.
