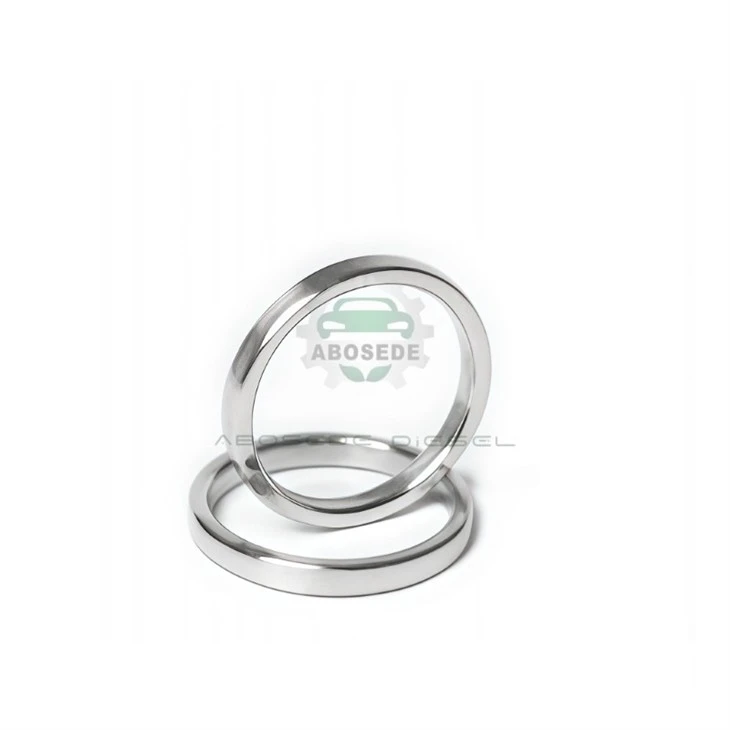

Armature Lift Adjustment Shim – For Cummins XPI Series-II Injector Systems

Every hour a Class 8 tractor sits idle in your bay due to injector drift, your workshop burns margin on hoist occupancy and ties up a technician who could be turning two other jobs. The Armature Lift Adjustment Shim for Cummins XPI Series-II injectors exists not as a performance upgrade, but as a cost-containment tool-it stops the bleed of repeat diagnostics on fuel imbalance complaints that keep trucks returning to your door. When armature clearance expands beyond 0.050 mm from factory nominal, the solenoid's magnetic pull weakens, injection timing scatters, and drivers report haze under acceleration.

This shim uses vacuum-argon refined chrome-vanadium alloy, hardened to 63–66 HRC via cryogenic treatment, with thickness grades from 0.80 mm to 1.95 mm in 0.005 mm steps. Flatness holds at 0.002 mm across the face-a tolerance that minimises off-axis load on the armature plate. Why does this matter for your bottom line? A shim that deforms plastically under 2,400 bar cyclic pressure forces the armature to seat inconsistently, which shifts injection quantity by 2–3% between cylinders. That variance drives DPF soot loading faster than the aftertreatment can handle, triggering parked regenerations that eat shop hours and frustrate fleet dispatchers. The alloy's resistance to compression set means you are not chasing the same tolerance drift six months after a rebuild.

This spacer directly replaces the original equipment in Injector 4307452, 4359204, 5594305, 5572336, 4327072, 2872331, 2872765, 2897414, 5579401, 2872075, 5579403, 2872127, 5579405, 5579407, 2872068, 5579409, 5579411, 2872621, 5579413, and 4307045. That translates to coverage for Cummins ISX15, QSX15, ISL9, and ISC8.3, plus Scania DC13 and DC16 installations sharing the XPI architecture. For your parts shelf, carrying 0.05 mm incremental grades between 1.20 mm and 1.60 mm covers roughly 80% of the wear cases you will encounter, reducing the number of special orders that delay a truck's departure.

Before you pull the solenoid, measure existing lift with a dial indicator-record that number. Remove the old shim and inspect its seating face for micro-indentations; these tell you whether the previous installer over-torqued the retaining nut or allowed dirt ingress. Select the replacement thickness such that the new installed lift falls within 0.005 mm of the nominal specification for that injector variant. Do not combine two thinner shims to reach a target-stacked spacers introduce elastic hysteresis, meaning the effective clearance changes as rail pressure modulates, and your test bench numbers will not match on-engine behaviour. After reassembly, run a six-point flow check: pilot quantity, main delivery at mid-range, full-load output, idle stability, and two emission-relevant part-load points. If any point exceeds ±1.8% from the mean, recheck your lift measurement before condemning the nozzle or valve group. This discipline saves you from the classic trap: swapping a $2,100 injector** when a **$4.80 shim and 25 minutes of careful work would have solved the issue.

Holding a cabinet of these shims in 0.01 mm increments might seem like capital tied up on the shelf-until you calculate the cost of a truck down for a backordered part. A typical heavy-haul rig generates $800–$1,200 per day in revenue for its owner; if your rebuild needs a shim you do not have, that truck sits, the owner calls another shop, and your reputation takes a hit. Stock the most-called thicknesses (1.30, 1.40, 1.45, 1.50, 1.55 mm) in quantities of ten-these cover the majority of ISX15 injector overhauls in the 600,000–900,000 km range. For the less common extremes, maintain an exchange relationship with a supplier who ships overnight from a regional depot.

Q1: What is the real-world failure rate of these shims in fleet service, and how often do they actually need swapping?
A: The shim itself does not "fail" abruptly. However, in fleets running 100,000+ km annually, measurable thickness reduction from micro-creep appears around 700,000 km. Swapping proactively during injector service is cheaper than a comeback.

Q2: If I buy in bulk, what is the shelf life-do these shims degrade in storage?
A: No degradation. The alloy is oxidation-resistant; store in a dry cabinet and they remain within tolerance indefinitely. Bulk discount economics make sense for shops rebuilding more than 20 injectors monthly.

Q3: Can I reuse a pulled shim if it measures within tolerance?
A: Technically yes, but practically no. The cost of verifying flatness and thickness after removal exceeds the price of a new shim, and reusing risks installing a spacer with invisible surface stress risers.

Q4: Does a 0.01 mm thickness change produce a noticeable difference in actual engine performance?
A: On a test bench, 0.01 mm alters injection quantity by roughly 1.2–1.5% at full load. In the truck, that translates to measurable fuel economy variation and visible smoke on step-load acceleration. The driver will feel the difference.

Q5: How do I explain to a fleet customer why they need a shim change when their injector "looks fine"?
A: Show them the bench flow sheet before and after. A 2.5% spread between cylinders is invisible to the eye but costs them 0.3–0.5 mpg and accelerates DPF ash loading. Quantify the annual fuel penalty-that speaks their language.
