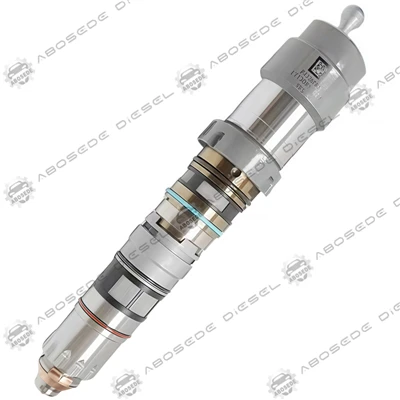

QSK60 MCR Fuel Injector 4326781 | Performance-Optimized Precision For Tier 2 Power Systems

The 4326781 Injector is engineered to solve the most difficult challenge in high-displacement diesel engineering: maintaining high torque density without compromising the longevity of the cylinder head. While other injectors focus solely on pressure, the 4326781 is designed for Harmonic Stability. By utilizing an advanced solenoid actuator, it ensures that the "Pilot" and "Main" injection events are perfectly phased, reducing the peak cylinder pressure spikes that often lead to head gasket failures in heavy-duty mining and power gen applications.





For technical procurement officers and lead mechanics, the 4326781 meets the following industrial benchmarks:

Technical Parameter	Specification Detail
Compatible Engine	Cummins QSK60 / QSK45 Modular Common Rail
OEM Part Number	4326781 (Interchange: 4088428, 4903330)
Injection Architecture	MCR (Modular Common Rail) Technology
Peak Operating Pressure	1600+ Bar with Dynamic Flow Control
Actuator Type	Fast-Response Electromagnetic Solenoid
Surface Treatment	Anti-Scuffing DLC (Diamond-Like Carbon)





In the field, "one size fits all" is a myth. Choosing the 4326781 requires understanding your engine's specific calibration:

The MCR Distinction: This injector is specifically designed for the Modular Common Rail fuel system, characterized by its external high-pressure fuel lines and centralized accumulators. It is NOT interchangeable with the older HPI-PT systems.

Tier 2 Compliance: The nozzle orifice geometry of the 4326781 is optimized for EPA Tier 2 / EU Stage IIIA engines. It provides the specific "swirl ratio" needed to meet NOx limits without the need for complex aftertreatment in many jurisdictions.

Refurbishment Strategy: If you are overhauling a high-hour QSK60, the selection logic dictates a matched set replacement. The 4326781's flow rates are so precise that mixing it with worn injectors can cause catastrophic crankshaft torsional vibration.





1. Solenoid Ball Valve Dynamics

At the heart of the 4326781 is a high-speed ball valve mechanism. Unlike lower-tier injectors, this valve is designed to cycle millions of times with zero "hysteresis" (delay). This allows the ECM to adjust fuel delivery in real-time based on ambient altitude, fuel temperature, and load, ensuring the QSK60 remains in its optimal "BSFC" (Brake Specific Fuel Consumption) map.

2. The DLC Coating & Fuel Lubricity

With the global shift toward Ultra-Low Sulfur Diesel (ULSD) and Bio-diesel blends, fuel lubricity has plummeted. The 4326781 addresses this with an upgraded Diamond-Like Carbon (DLC) coating on the needle and command piston. This technology prevents the "metal-to-metal" welding that occurs at 1600 bar pressures, extending service life by up to 30% in harsh environments.

3. Thermal Management Structure

The QSK60 generates immense heat in the combustion bowl. The nozzle of the 4326781 is constructed from a specialized high-thermal-conductivity alloy, which facilitates rapid heat transfer away from the tip. This prevents "nozzle coking"-the buildup of carbon that distorts the spray pattern and leads to piston crown erosion.





O-Ring Integrity: Always lubricate the 4326781's external seals with clean engine oil before installation to prevent "shearing" which can lead to fuel-in-oil contamination.

Torque Sequence: Follow the manufacturer's multi-stage torque specs for the injector hold-down clamp. Improper torque leads to combustion gas blow-by, which can melt the injector body.

The 5-Micron Rule: In a common rail environment, your fuel is your lubricant. Use a 5-micron (or better) water-separating fuel filter to protect the delicate internals of the 4326781.





Q1: What is the most obvious sign that my 4326781 injectors need replacing?

A: Beyond the "Check Engine" light, look for Excessive Blow-by and White Smoke during cold starts. White smoke indicates poor atomization-the fuel is being injected as droplets rather than a mist, failing to ignite properly until the cylinder reaches peak temperature.

Q2: Can the 4326781 handle high-sulfur fuel in unregulated markets?

A: While designed for ULSD, the DLC coating provides significant protection against the corrosive byproducts of high-sulfur fuel. However, if using such fuel, injector life will be shortened, and more frequent oil analysis is required.

Q3: How does the "Modular" part of MCR affect the injector?

A: In the MCR system, the injector doesn't have to "pump" the fuel; it only "meters" it. This means the 4326781 is under less mechanical stress than an HPI unit, but it is far more sensitive to electrical interference and fuel contamination.

Q4: Is it necessary to program the ECM with trim codes for the 4326781?

A: Yes. Each 4326781 comes with a unique calibration code (QR code or alphanumeric). Entering this into the Cummins Insite™ software ensures the ECM compensates for tiny manufacturing variances, providing perfectly balanced power across all 16 cylinders.

Q5: Why is my QSK60 experiencing "Hunting" at idle after installing new 4326781 units?

A: This usually indicates air trapped in the modular rail or a failure to properly prime the system. Common rail systems are not self-bleeding; you must follow the specialized priming procedure to ensure the 4326781 solenoids are fully submerged in fuel before cranking.
