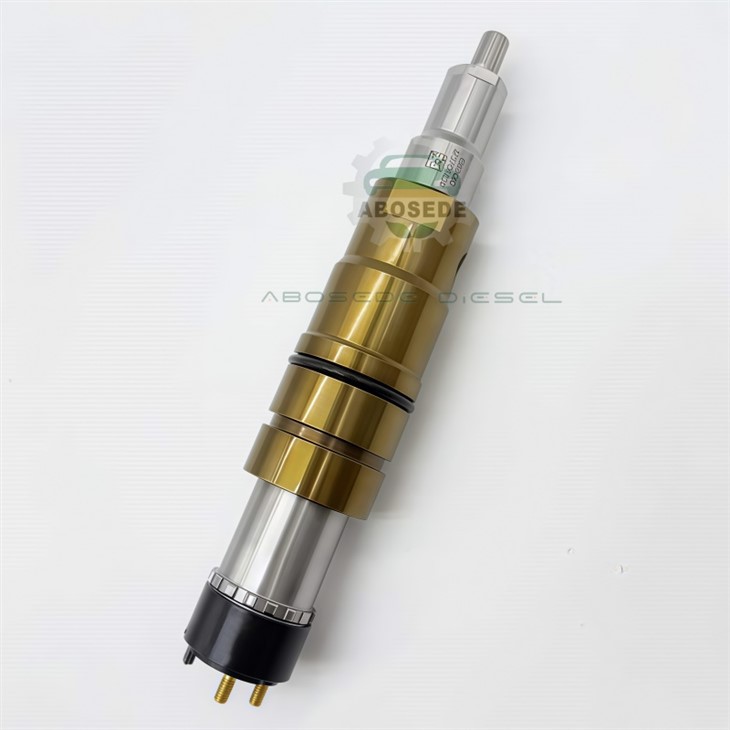

Cummins 2057401 Diesel Fuel Injector | Genuine Replacement For ISX & X15 Engines | OEM High-Pressure Common Rail Nozzle

In the highly regulated landscape of modern diesel engineering, the fuel injector serves as the linchpin for balancing raw power with stringent environmental compliance. The Cummins 2057401 is engineered to meet the exacting demands of next-generation heavy-duty engines, acting as the precise delivery mechanism within a high-pressure common rail (HPCR) architecture. Unlike legacy mechanical systems, this injector operates in an environment where fuel pressure is decoupled from engine speed, allowing the Electronic Control Unit (ECU) to maintain rail pressures exceeding 2000 bar regardless of RPM. This specific model is designed not just to deliver fuel, but to optimize the thermal efficiency of the combustion chamber, ensuring that every drop of diesel is atomized into micron-sized droplets for a cleaner burn, reduced particulate matter, and maximum torque output.



🚜 Compatibility & Industrial Application



The selection logic for the 2057401 centers on its robustness in high-load scenarios. It is a critical component for operators who demand reliability across diverse and demanding applications:

Engine Platforms: Primarily calibrated for high-displacement Cummins platforms, including the ISX, X15, and QSX15 series engines found in long-haul and vocational trucks.

Heavy-Duty Transport: Ideal for Class 8 semi-trucks and tractor-trailers where consistent fuel mapping is essential for highway cruising and hill-climbing performance.

Off-Highway & Industrial: Frequently deployed in heavy construction equipment, mining machinery, and agricultural tractors that require sustained high-torque operation under extreme load variations.

Emission Systems: Fully compatible with advanced after-treatment architectures, supporting engines that utilize Selective Catalytic Reduction (SCR) to meet Euro VI and EPA emission standards.







Precision is the hallmark of the 2057401. Below are the core specifications that define its operational envelope and integration capabilities:



Specification Category	Technical Detail
OEM Part Number	2057401
Fuel System Architecture	High-Pressure Common Rail (HPCR)
Actuation Technology	High-Speed Solenoid Valve
Max Injection Pressure	Up to 2500 Bar (250 MPa)
Injection Strategy	Multi-pulse (Pilot, Main, Post-injection)
Control Interface	Direct ECU Pulse Width Modulation (PWM)





From a structural perspective, the Cummins 2057401 is built to withstand the immense hydraulic forces present in modern common rail systems. The internal assembly features a hardened steel needle valve and a precision-machined nozzle body capable of enduring cyclic fatigue at ultra-high pressures. The solenoid actuator is designed for microsecond-level response times, allowing the ECU to execute complex injection strategies seamlessly.

The hydraulic dynamics of this injector are centered around multi-stage injection:

Pilot Injection: A pre-injection event that prepares the combustion chamber, significantly reducing the "diesel knock" noise and smoothing out pressure rise rates.

Main Injection: The primary fuel delivery phase, governed by the ECU's pulse width to match driver demand and load requirements.

Post-Injection: A strategic late-cycle injection used to elevate exhaust gas temperatures, which is vital for the passive regeneration of Diesel Particulate Filters (DPF) and the optimal functioning of SCR catalysts.





To maximize the service life of the 2057401, maintenance protocols must focus on fluid integrity and system cleanliness. The tight tolerances within the injector (often less than 3 microns) mean that even minor contamination can lead to catastrophic failure.

Filtration Standards: Always adhere to OEM-recommended fuel filtration standards. Water separators and high-efficiency particulate filters are mandatory to prevent corrosion and abrasive wear on the needle valve seat.

Rail Pressure Monitoring: Regularly monitor rail pressure sensor data via diagnostic tools. Deviations in rail pressure during cranking or idle often point to internal leakage within the injector return circuit.

Professional Installation: When replacing the 2057401, ensure that the copper sealing washer is replaced and the hold-down clamp is torqued to specification. Improper installation can lead to combustion gas blow-by, damaging the injector tip and the cylinder head seat.



Q1: How does the Cummins 2057401 contribute to DPF regeneration cycles?
A: This injector is capable of precise post-injection events. By injecting a small amount of fuel late in the combustion cycle, it raises the exhaust temperature sufficiently to burn off accumulated soot in the Diesel Particulate Filter (DPF), preventing clogging and maintaining engine performance.

Q2: What happens if I use low-quality fuel with the 2057401 injector?
A: Low-quality fuel often contains high levels of sulfur, water, or particulates. This can cause erosion of the nozzle holes, leading to poor atomization (wet stacking), increased emissions, and potential seizure of the internal solenoid or needle valve due to lack of lubricity.

Q3: Can a faulty 2057401 injector cause damage to other engine components?
A: Yes. If an injector sticks open (leaks), it can wash away the protective oil film on the cylinder walls, leading to piston ring and liner scuffing. In severe cases, excessive fuel dilution can degrade the engine oil, causing bearing failures throughout the engine.

Q4: Is the 2057401 compatible with biodiesel blends?
A: Generally, Cummins HPCR injectors are compatible with biodiesel blends up to B20 (20% biodiesel), provided the fuel meets ASTM D6751 or EN 14214 standards. However, biodiesel has different solvent properties, so fuel filter change intervals should be monitored more closely during the initial switch.

Q5: Why is "coding" or "trimming" the injector important after installation?
A: Each injector has unique manufacturing variances. Coding (inputting the specific calibration code into the ECU) allows the engine computer to compensate for these slight differences, ensuring balanced fuel delivery across all cylinders for smoother operation and better fuel economy.
