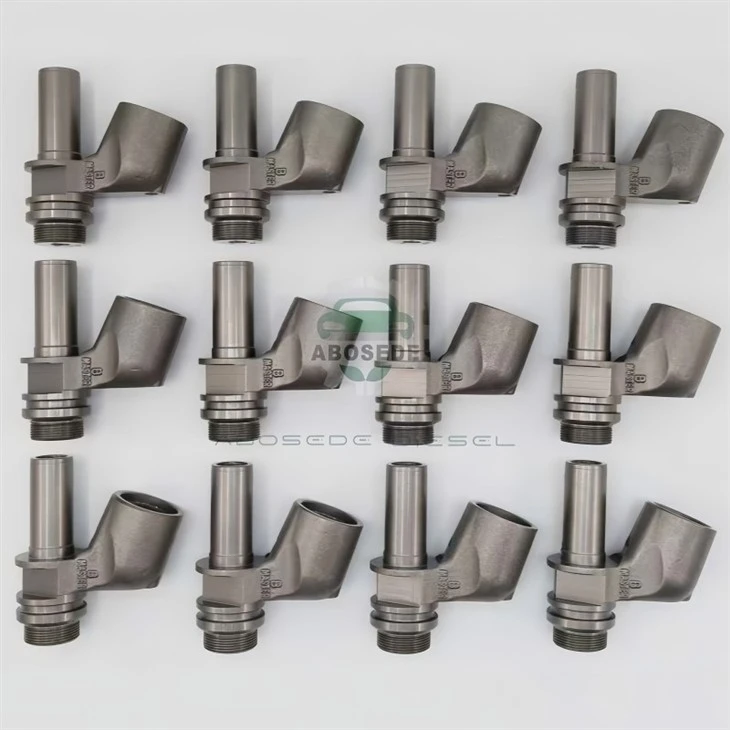

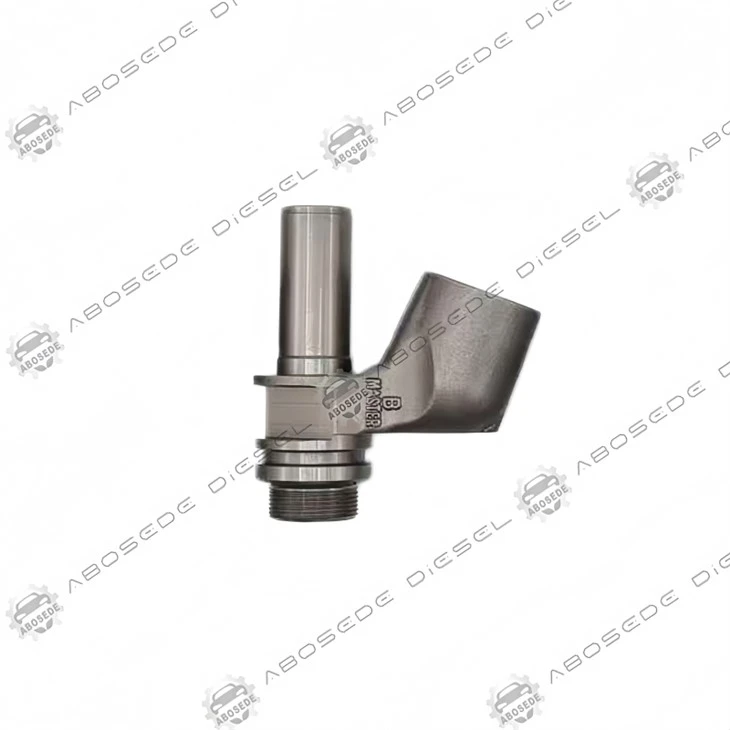

CAT C15 Injector Housing – Pressure Boundary Integrity & Precision Component Alignment Solution



In the CAT C15 high-pressure fuel injection system, the injector housing (often referred to as the injector body or casing) is frequently perceived as a simple enclosure that holds internal components in place. This perception underestimates its critical role as a pressure boundary that must withstand rail pressures exceeding 2,000 bar while simultaneously serving as the geometric reference for all moving and sealing elements within the injector. The housing defines the concentricity between the plunger, the control valve, and the nozzle needle-a relationship that dictates injection timing, spray pattern, and overall fuel efficiency. Our replacement housing addresses a failure mode that is often misdiagnosed as injector component wear: the progressive loss of bore concentricity caused by localized stress relaxation in the housing material. This bore distortion, even at the micrometer level, introduces lateral loads on the plunger and control valve, accelerating wear and creating an irreversible decline in injector performance.



The C15 injector housing experiences pressure cycles that fluctuate from near-zero to over 2,000 bar with each injection event, accumulating more than 10⁸ pressure cycles over the engine's service life. Generic aftermarket housings often utilize standard 4140 steel with conventional hardening, which lacks the necessary resistance to low-cycle fatigue at the internal pressure boundaries. Our housing is forged from a proprietary micro-alloyed steel (similar to 43CrMo4 but with enhanced vanadium and niobium additions) that refines the grain structure to ASTM No. 8 or finer. This grain refinement increases the material's endurance limit by approximately 30%, ensuring that the housing withstands pressure fluctuations without developing micro-cracks at the internal oil galleries or at the thread roots. Additionally, the steel's inclusion content is strictly controlled to ≤0.01% (by volume), minimizing stress risers that would otherwise initiate fatigue failure in the high-stress regions adjacent to the injector's high-pressure fuel passages.







The housing's internal bore is the most critical feature for injector performance. It provides the running surface for the plunger and the sealing surface for the control valve. Our housing is machined on a high-precision turning center with a surface roughness specification of Ra ≤0.15 µm and a cylindricity tolerance of 0.002 mm over the full bore length. This extreme precision ensures that the plunger maintains a uniform fluid film for hydraulic actuation (in HEUI systems) or for low-leakage sealing (in common-rail applications). In practical terms, this bore quality reduces plunger scuffing and prolongs the life of both the plunger and the housing itself. We employ a honing process that creates a cross-hatched surface pattern with a specific lay angle of 45°, optimizing lubricant retention and reducing initial break-in wear by approximately 20%.



Our injector housing is a direct mechanical replacement for the following OEM injector assemblies used across C15 on-highway, industrial, and marine variants (including Acert and pre-Acert configurations):

OEM Injector No.	OEM Injector No.	OEM Injector No.	OEM Injector No.
191-3003	10R-8501	211-3027	244-7716
272-0630	10R-7229	10R-0957	200-1117
229-5919	10R-1000	249-0709	10R-9236
280-0574	10R-8989	211-3023	10R-8500
234-1400	253-0614	10R-3263	289-0753
10R-0958	211-3022	10R-0956	235-1400
253-0615	355-6110	20R-8047	10R-3264
211-3024	10R-8502	235-1401	253-0617
374-0750	20R-2284	211-3025	10R-0955
239-4909	254-4183	618-0750

Compatibility confirmation: All listed injector assemblies share the same housing mounting interface, oil gallery port locations, and fastener thread patterns. Our housing is manufactured with the OEM-specified clamp force capacity, ensuring it handles the 35 Nm hold-down torque without distortion.



The housing incorporates multiple threaded features-for the solenoid retainer nut, the high-pressure connector, and the injector hold-down clamp. These threads are subject to both cyclic loading and corrosive fuel environments. Our housing threads are rolled, not cut, preserving the material's grain flow and increasing fatigue strength by approximately 40% compared to cut threads. Additionally, we apply a thin, uniform manganese phosphate coating to all threaded surfaces, providing a lubricative layer that prevents galling during assembly-a common issue when installing new components into aged cylinder heads. This coating also offers corrosion resistance against acidic fuel byproducts, maintaining thread integrity even after extended service intervals.



Q1: Can I reuse the original housing if it appears visually sound, or is replacement recommended with every overhaul?
A: While the housing is a durable component, it undergoes cyclic pressure loading that causes cumulative fatigue. We recommend replacement every second injector rebuild (approximately 15,000–20,000 hours) or at any time when bore wear exceeds 0.005 mm. Visual inspection alone is insufficient to detect subsurface fatigue.

Q2: I see the same injector part number (e.g., 10R-8501) appearing in multiple rows in the compatibility table-does your housing accommodate all revisions?
A: Yes, our housing is designed to the core dimensions that are common across all revisions of the listed injectors. Minor variations (e.g., solenoid connector style) do not affect the housing's fitment.

Q3: What is the risk of the housing's manganese phosphate coating contaminating the fuel system?
A: The coating is applied to external and threaded surfaces only-it does not enter the fuel passages. The internal bore and high-pressure galleries remain uncoated to prevent any particulate shedding into the fuel stream.

Q4: How do I distinguish between a housing crack and a surface defect during inspection?
A: Use dye-penetrant inspection (DPI). A crack will retain the dye after development and show a distinct line. Surface scratches or machining marks will not hold dye. If DPI is unavailable, a magnetic particle inspection can also be used for ferritic housings.

Q5: Does your housing accommodate the higher injection pressures (up to 2,400 bar) used in some C15 performance upgrades?
A: Our housing is pressure-rated to 2,500 bar with a burst safety factor of 4.0, providing a margin above most aftermarket tuning levels. However, we always recommend verifying the pressure specifications with your injector supplier.

Q6: Can I install this housing in a C15 engine that originally used a different OEM injector part number not listed?
A: The housing dimensions are based on the standard C15 injector interface. If your injector part number is not listed but shares the same mounting, thread, and bore geometry, it should be compatible. Please contact our technical support with your specific injector part number for verification.
