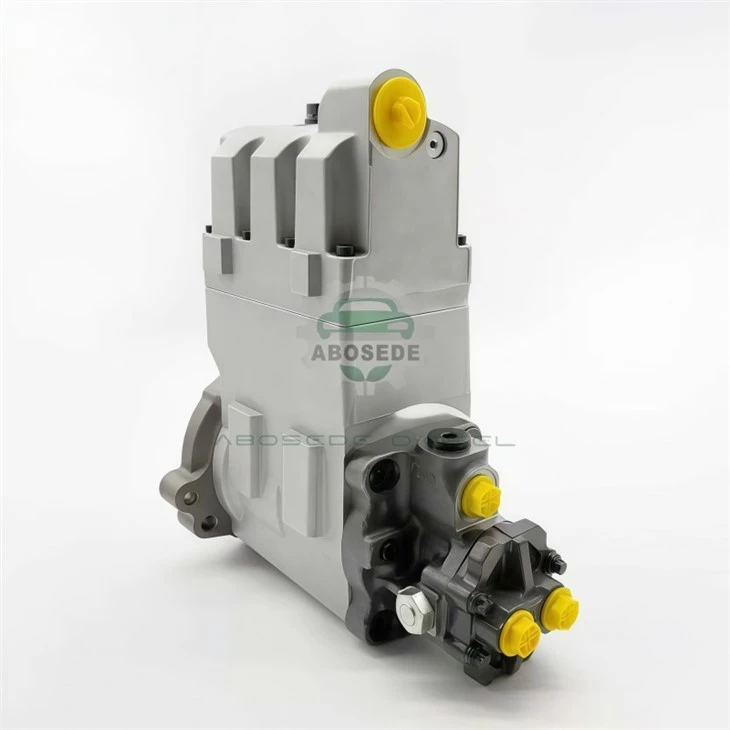

HEUI Excellence: 20R-1644 Actuation Pump | 31-Teeth Large Flange & Integrated Transfer Unit

The heart of high-pressure performance in heavy-duty diesel engines lies within the precision of the Hydraulic Electronic Unit Injection (HEUI) system. The 20R-1644 Actuation Pump represents a pinnacle of hydraulic engineering, designed specifically to meet the rigorous demands of large-bore diesel applications. This is not just a replacement part; it is a critical calibration component that dictates the efficiency, torque, and emissions profile of your powertrain.





Technical integrity is the bedrock of the 20R-1644. Engineered for seamless integration, this pump combines high-pressure actuation with a primary fuel lift function.

Feature	Specification
Model Number	20R-1644 / 20R1644
Drive Configuration	31-Teeth Spline Shaft
Mounting Interface	Large Flange (High-Stability Design)
System Compatibility	HEUI (Hydraulic Electronic Unit Injection)
Integrated Components	Internal Fuel Transfer Pump (Lift Pump)
Flow Optimization	Variable Delivery for Load-Adaptive Pressure





The 20R-1644 is designed to withstand the harsh environment of the engine block. Its 31-teeth spline is precision-machined to minimize backlash and ensure perfect timing synchronization with the engine's gear train. The Large Flange design is a deliberate engineering choice to mitigate vibration-induced fatigue-a common failure point in high-torque diesel environments.

Inside, the dual-stage mechanism manages two critical tasks:

Hydraulic Actuation: It pressurizes engine oil to drive the fuel injectors, achieving the immense pressures required for "cold-start" reliability and peak-load performance.

Fuel Transfer: The integrated transfer pump ensures a consistent supply of diesel to the injectors, eliminating the need for separate external lift systems and simplifying the engine's footprint.





In a diesel common rail or HEUI environment, pressure is everything. The 20R-1644 operates on a Load-on-Demand principle. By modulating the injection pressure independently of engine speed, this pump allows for:

Reduced Particulate Matter: Finer atomization of fuel during the injection cycle.

Enhanced Thermal Efficiency: Optimized combustion timing across the entire RPM range.

Acoustic Optimization: Smoother pressure transitions that reduce the characteristic "diesel knock."





This actuation pump is the preferred choice for Tier 2 and Tier 3 heavy equipment, long-haul trucking, and stationary power generation. It is frequently utilized in engines powering:

Construction: Excavators, Dozers, and Articulated Haulers.

Marine: Auxiliary power units and propulsion systems for medium-sized vessels.

Industrial: High-capacity generators and pump drives.





The 20R-1644 is a "zero-tolerance" component. To maximize its service life, operators must adhere to strict Fluid Cleanliness Standards (ISO 4406). Since this pump utilizes engine oil as its hydraulic medium, the quality of your oil filtration system directly impacts the lifespan of the internal swash plate and pistons.

Pro-Tip: Always inspect the 31-teeth drive gear for "fretting" during routine maintenance. Any sign of uneven wear on the teeth usually indicates a misalignment in the timing gear housing that must be corrected to prevent catastrophic pump failure.







Q1: How does the 31-teeth configuration affect system timing compared to lower tooth counts? The 31-teeth spline provides a higher surface area for torque distribution. This ensures that the high-pressure pulses within the pump do not lead to shear stress on the shaft, maintaining more accurate injection timing over thousands of operational hours.

Q2: Can the 20R-1644 be used as a direct upgrade for older flange models? The "Large Flange" is specific to certain block castings. While the internal displacement might be similar to other models, the mounting bolt pattern and gear offset are unique. Always verify your engine serial number (ESN) to ensure a precise fit.

Q3: What are the primary symptoms of an internal transfer pump failure within this unit? Usually, you will experience "hard starts" or "long cranking" times. If the actuation side is healthy but the transfer side is weak, the engine may run at idle but "starve" or stall under heavy load due to insufficient fuel volume.

Q4: Is this pump compatible with modern Synthetic Low-Soot oils? Yes. In fact, modern CK-4 or FA-4 oils provide superior film strength which protects the 20R-1644's internal pistons from premature wear caused by high-pressure shearing.

Q5: Why choose a remanufactured 20R-series over an aftermarket "white box" pump? 20R-series components are rebuilt to original OEM tolerances using sonic cleaning and computerized testing. Aftermarket pumps often lack the specific metallurgical hardness required for the 31-teeth gear, leading to metal shavings in your oiling system.
