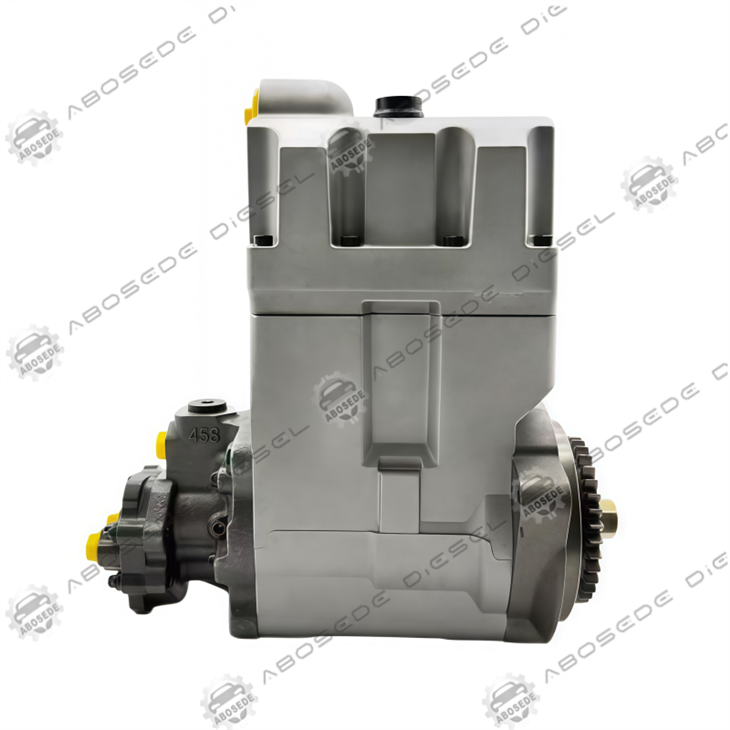

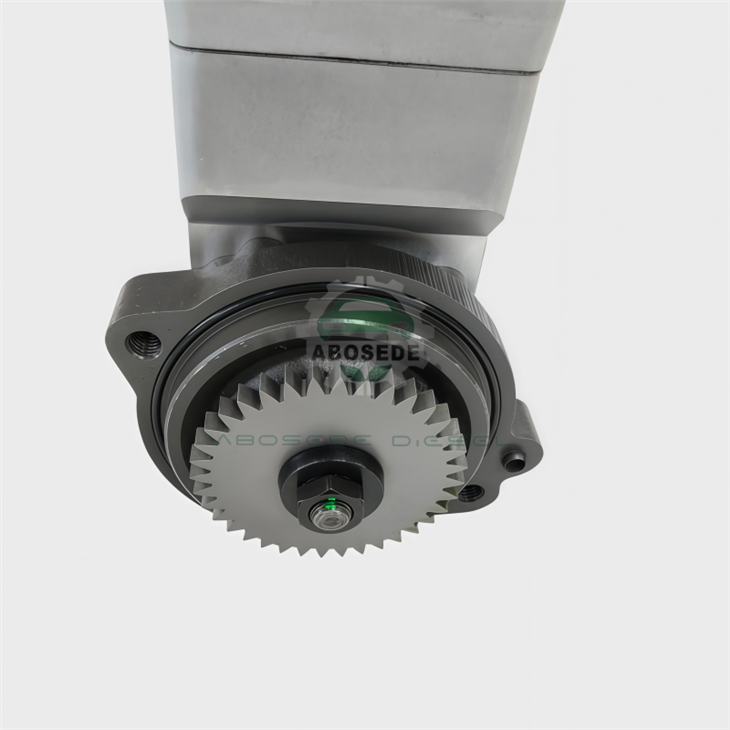

CAT 319-0676 High-Pressure Fuel Pump – Reduced Flow Overshoot and Undershoot for Enhanced Transient Response in C13/C15 Common-Rail Systems
1. Product:319-0676
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
In the common-rail fuel system, steady-state performance-the pump's ability to deliver consistent flow at a fixed speed and load-is well understood. Yet the majority of engine operation involves transients: accelerating from a stop, climbing a grade, or responding to a sudden load change. During these transients, the pump must rapidly adjust its flow delivery to match the injectors' instantaneous demand. If the pump's response is too slow, the rail pressure drops (undershoot), causing a momentary loss of power. If the response is too aggressive, the rail pressure overshoots, triggering the pressure relief valve and wasting energy. The CAT 319-0676 addresses this through a flow control system that minimises both overshoot and undershoot during load steps, providing a smooth and predictable rail pressure response. The result is a pump that delivers consistent power delivery during acceleration and deceleration, improving the drivability and reducing the load on the pressure relief valve.
Transient Response – The Science of Smooth Pressure Control
The 319-0676's flow control system is engineered to provide a rapid yet damped response to load changes. Key design features include:
Metering valve response time: ≤ 15 ms (vs. 25 ms typical)
Pressure overshoot: ≤ 30 bar during a 50% load step (vs. 80 bar typical)
Pressure undershoot: ≤ 20 bar during a 50% load step (vs. 60 bar typical)
Settling time: ≤ 100 ms to return to commanded pressure (vs. 250 ms typical)
Flow Stability – The Foundation of Consistent Injection
The 319-0676 uses a cam-driven radial three-plunger design with plungers spaced at 120° intervals, providing overlapping pressure strokes that minimise the flow interruption between plunger events. The flow ripple is measured at 3.8% at full load-a 40% improvement over two-plunger designs. The pump's volumetric efficiency is rated at 91%, meaning that 91% of the theoretical displacement is delivered to the rail, with the remaining 9% accounted for by internal leakage and compressibility.
