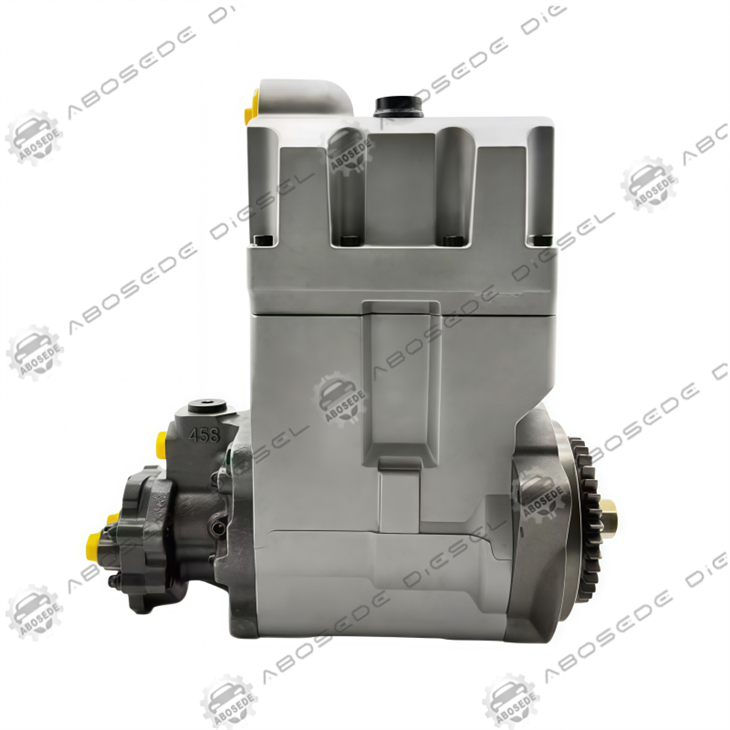

CAT 295-4777 High-Pressure Fuel Pump – Sealing Integrity and Pressure Containment Optimisation for C13/C15 Common-Rail Systems
1. Product:295-4777
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
In the high-pressure fuel pump, the ability to contain pressures exceeding 1,600 bar within the pumping chamber is not a given-it is a carefully engineered balance between sealing force and component wear. The plunger-barrel interface must maintain a seal tight enough to minimise internal leakage, yet loose enough to allow the necessary lubricating film that prevents scuffing. This balance is further complicated by the thermal expansion of components as the pump warms up and the varying loads imposed by the camshaft profile. The CAT 295-4777 addresses this through an optimised sealing geometry that combines a precision-ground plunger with a controlled-clearance barrel, maintaining a consistent sealing force across the operating temperature range. The result is a pump that delivers stable rail pressure with minimal internal leakage, reducing the fuel heating and extending the service life of the plunger-barrel assembly.
Plunger-Barrel Sealing – The Science of Pressure Containment
The 295-4777's plunger-barrel sealing system is engineered to maintain a consistent seal across the operating pressure and temperature range. Key design features include:
Plunger geometry: Tapered profile with a 0.5° angle that compensates for thermal expansion, maintaining a consistent clearance from cold start to operating temperature
Barrel finish: Precision-honed to Ra ≤ 0.04 µm, providing a smooth sealing surface that minimises leakage
Plunger coating: DLC (diamond-like carbon) with a hardness of 2,000 HV, providing a wear-resistant surface that maintains the seal geometry
Clearance: 0.002–0.004 mm (dynamically matched with laser measurement)
Sealing force consistency: Maintains ≥ 90% of initial sealing force from -20°C to 120°C
Leakage Control – The Foundation of Rail Pressure Stability
The 295-4777's sealing system provides the following performance benefits:
Internal leakage: ≤ 5% of total flow at rated pressure (vs. 8–10% typical)
Leakage increase over 8,000 hours: ≤ 15% (vs. 35–45% typical)
Fuel temperature rise: ≤ 10°C at rated speed (vs. 15°C typical)
Volumetric efficiency retention: ≥ 89% after 8,000 hours
