254-4357 Injection Actuating Pump | Small Flange 36-Tooth | Without Transfer Pump | HEUI High-Pressure Diesel Unit
1. Product:254-4357
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
In modern diesel platforms, performance is no longer defined solely by displacement or turbocharging-it is increasingly dictated by hydraulic precision inside the injection control circuit. The 254-4357 injection actuating pump represents a critical evolution in this domain, converting mechanical rotation into high-pressure oil energy that directly governs injector actuation timing and intensity.
Unlike conventional diesel supply pumps, this unit operates as the core hydraulic driver in HEUI (Hydraulically Actuated Electronically Controlled Unit Injection) systems, ensuring that fuel injection is not only pressurized but dynamically controlled under varying load conditions.
🔩 Structural Identity: Compact, Purpose-Built Engineering

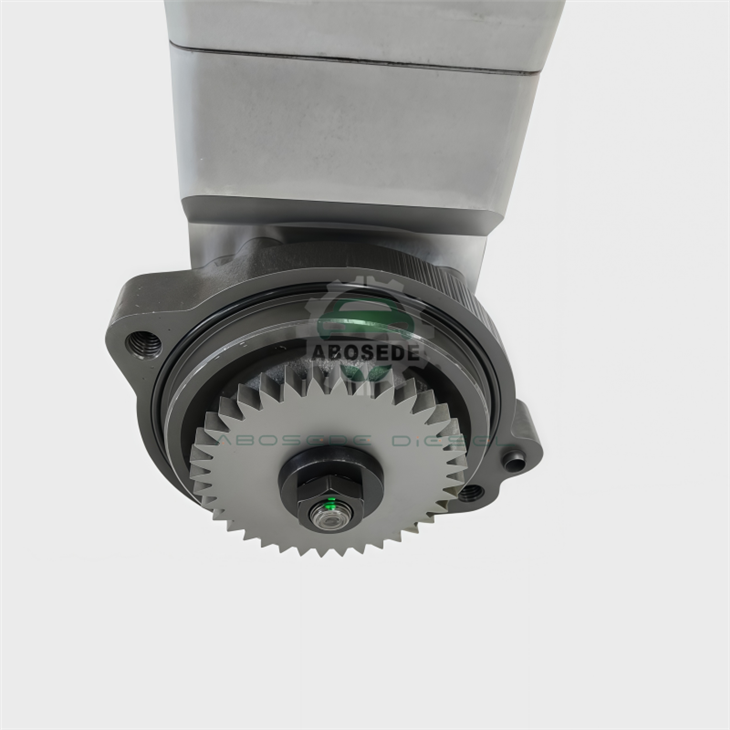

The 254-4357 adopts a small flange configuration with a 36-tooth gear interface, optimized for mid-to-heavy-duty diesel engines requiring precise synchronization with camshaft timing systems. The absence of an integrated transfer pump simplifies system architecture while improving reliability in applications where external fuel supply modules are preferred.
Key structural highlights include:
High-strength alloy housing for fatigue resistance
Precision-machined internal pistons and chambers
Optimized oil flow channels to minimize cavitation
Sealed bearing system for extended lifecycle durability
This design ensures compatibility with high-load duty cycles typical of construction and industrial diesel equipment.
📊 Technical Performance Metrics (Engineered for Stability)
From a system engineering perspective, the pump operates within a tightly controlled hydraulic window:
Maximum working pressure: up to ~28 MPa
Minimum activation pressure: ≥6 MPa
Function: Supplies high-pressure oil to actuate injectors
System type: HEUI / electronically controlled diesel injection
This pressure range is critical for achieving multi-phase injection events, enabling better atomization, reduced NOx emissions, and improved combustion efficiency.
